Underbody And Underfloor Guards

Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP

Find Your Part

Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP - UNDERBODY AND UNDERFLOOR GUARDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670158813 FRONT LH AERODYNAMIC SHIELD $184.42 To Order
Photo Part No Description Price (each) Stock
670158811 FRONT RH AERODYNAMIC SHIELD $184.42 To Order
Photo Part No Description Price (each) Stock
670299714 REAR COVER $569.96 To Order
Photo Part No Description Price (each) Stock
670295110 FRONT AERODYNAMIC COVER $89.00 To Order
Photo Part No Description Price (each) Stock
670158776 SHIELD $210.15 To Order
Photo Part No Description Price (each) Stock
670174622 BRACKET RETAINER $43.30 To Order
Photo Part No Description Price (each) Stock
670007383 FASTENER BUTTON $8.62 IN STOCK
Photo Part No Description Price (each) Stock
670158809 PAD $16.40 To Order
Photo Part No Description Price (each) Stock
670158810 REAR JACKING PAD $12.62 To Order
Photo Part No Description Price (each) Stock
675002263 SCREW M8X50 $1.72 To Order
Photo Part No Description Price (each) Stock
675001883 SCREW $1.39 To Order
Photo Part No Description Price (each) Stock
675000324 NUT $1.36 IN STOCK
Photo Part No Description Price (each) Stock
670174618 FIXING BRACKET $112.49 To Order
Photo Part No Description Price (each) Stock
675000432 SCREWM6X20 $2.38 To Order
Photo Part No Description Price (each) Stock
675000435 SCREW $4.79 IN STOCK
Photo Part No Description Price (each) Stock
670174621 FIXING BRACKET $17.45 To Order
Photo Part No Description Price (each) Stock
670005384 SCREW $2.56 IN STOCK
Photo Part No Description Price (each) Stock
670174619 BRACKET RETAINER $43.30 To Order
Photo Part No Description Price (each) Stock
670036972 SCREW $3.08 IN STOCK
Photo Part No Description Price (each) Stock
675002253 SCREW $1.39 To Order
Photo Part No Description Price (each) Stock
670299028 RH SIDE AIR DUCT $10.26 To Order
Photo Part No Description Price (each) Stock
670299029 LH SIDE AIR DUCT $10.62 To Order
View All

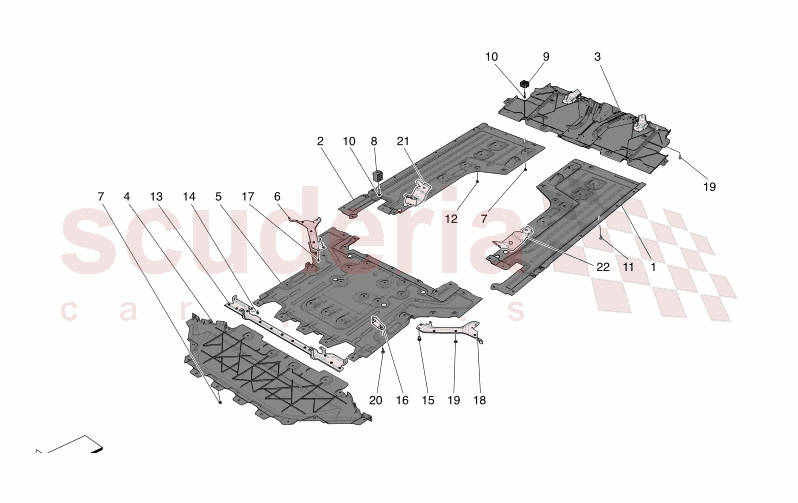

UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670158813
FRONT LH AERODYNAMIC SHIELD 		$184.42 1
2 670158811
FRONT RH AERODYNAMIC SHIELD 		$184.42 1
3 670299714
REAR COVER 		$569.96 1
4 670295110
FRONT AERODYNAMIC COVER 		$89.00 1
5 670158776
SHIELD 		$210.15 1
6 670174622
BRACKET RETAINER 		$43.30 1
7 670007383
FASTENER BUTTON
IN STOCK 		$8.62 14
8 670158809
PAD 		$16.40 2
9 670158810
REAR JACKING PAD 		$12.62 2
10 675002263
SCREW M8X50 		$1.72 4
11 675001883
SCREW 		$1.39 14
12 675000324
NUT
IN STOCK 		$1.36 14
13 670174618
FIXING BRACKET 		$112.49 1
14 675000432
SCREWM6X20 		$2.38 10
15 675000435
SCREW
IN STOCK 		$4.79 10
16 670174621
FIXING BRACKET 		$17.45 2
17 670005384
SCREW
IN STOCK 		$2.56 4
18 670174619
BRACKET RETAINER 		$43.30 1
19 670036972
SCREW
IN STOCK 		$3.08 31
20 675002253
SCREW 		$1.39 9
21 670299028
RH SIDE AIR DUCT 		$10.26 1
22 670299029
LH SIDE AIR DUCT 		$10.62 1
