Name: REAR STRUCTURAL FRAMES AND SHEET PANELS
Rating: 4.6 (1 reviews)

REAR STRUCTURAL FRAMES AND SHEET PANELS of Maserati Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP

View All

Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP - REAR STRUCTURAL FRAMES AND SHEET PANELS

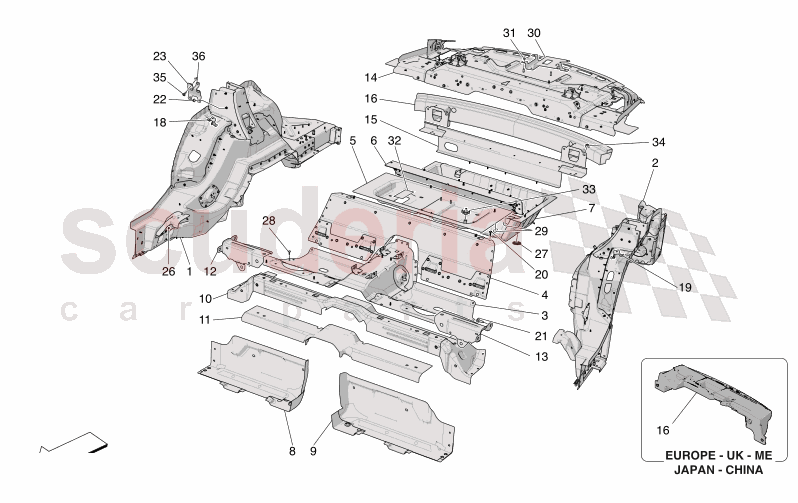

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673015423	RH REAR LONGITUDINAL MEMBER	$2,314.20	To Order

Photo	Part No	Description	Price (each)	Stock
	673015422	LH REAR LONGITUDINAL MEMBER	$2,145.65	To Order

Photo	Part No	Description	Price (each)	Stock
	673015419	REAR CPL FLOOR	$376.13	To Order

Photo	Part No	Description	Price (each)	Stock
	673015427	REAR UNDERSEAT CPL CROSS MEM	$573.10	To Order

Photo	Part No	Description	Price (each)	Stock
	673015429	REAR CPL FLOOR	$135.80	To Order

Photo	Part No	Description	Price (each)	Stock
	673015426	CPL CROSSMEMBER	$316.29	To Order

Photo	Part No	Description	Price (each)	Stock
	673015425	rear floor	$523.78	To Order

Photo	Part No	Description	Price (each)	Stock
	673015431	RH FLOOR CLOSING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015430	LH FLOOR CLOSING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015420	REAR CROSS PIECE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015424	REAR UNDERSEAT CROSSBAR	$95.96	To Order

Photo	Part No	Description	Price (each)	Stock
	670172688	BRACKET	$41.40	To Order

Photo	Part No	Description	Price (each)	Stock
	670172689	BRACKET	$41.40	To Order

Photo	Part No	Description	Price (each)	Stock
	673015421	REAR UNDER WINDOW PANEL	$838.49	To Order

Photo	Part No	Description	Price (each)	Stock
	673015428	CPL REAR CROSSBAR LONGITUDIN	$256.80	To Order

Photo	Part No	Description	Price (each)	Stock
	670297189	BUMPER ABSORBER	$197.68	To Order

Photo	Part No	Description	Price (each)	Stock
	670213303	BRACKET	$9.84	To Order

Photo	Part No	Description	Price (each)	Stock
	670213301	BRACKET	$9.84	To Order

Photo	Part No	Description	Price (each)	Stock
	670007029	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002307	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	675000095	NUT M6	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	670219179	BRACKET	$15.83	To Order

Photo	Part No	Description	Price (each)	Stock
	675001769	CAP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	670036841	ADHESIVE PLUG	$3.27	To Order

Photo	Part No	Description	Price (each)	Stock
	670174560	SCREW SELF DRILL	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	670005230	PLUG	$3.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	675007422	INSERT	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	675002158	NUT	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	675000480	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	675000408	BLOCK	$2.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	673015423	RH REAR LONGITUDINAL MEMBER	673015423 RH REAR LONGITUDINAL MEMBER	$2,314.20	1
2	673015422	LH REAR LONGITUDINAL MEMBER	673015422 LH REAR LONGITUDINAL MEMBER	$2,145.65	1
3	673015419	REAR CPL FLOOR	673015419 REAR CPL FLOOR	$376.13	1
4	673015427	REAR UNDERSEAT CPL CROSS MEM	673015427 REAR UNDERSEAT CPL CROSS MEM	$573.10	1
5	673015429	REAR CPL FLOOR	673015429 REAR CPL FLOOR	$135.80	1
6	673015426	CPL CROSSMEMBER	673015426 CPL CROSSMEMBER	$316.29	1
7	673015425	rear floor	673015425 rear floor	$523.78	1
8	673015431	RH FLOOR CLOSING PLATE	673015431 RH FLOOR CLOSING PLATE	-	1	Enquire
9	673015430	LH FLOOR CLOSING PLATE	673015430 LH FLOOR CLOSING PLATE	-	1	Enquire
10	673015420	REAR CROSS PIECE MEMBER	673015420 REAR CROSS PIECE MEMBER	-	1	Enquire
11	673015424	REAR UNDERSEAT CROSSBAR	673015424 REAR UNDERSEAT CROSSBAR	$95.96	1
12	670172688	BRACKET	670172688 BRACKET	$41.40	1
13	670172689	BRACKET	670172689 BRACKET	$41.40	1
14	673015421	REAR UNDER WINDOW PANEL	673015421 REAR UNDER WINDOW PANEL	$838.49	1
15	673015428	CPL REAR CROSSBAR LONGITUDIN	673015428 CPL REAR CROSSBAR LONGITUDIN	$256.80	1
16	670297189	BUMPER ABSORBER	670297189 BUMPER ABSORBER EU CN UK JP ME JRH N0 N8 UK3 GB;	$197.68	1
18	670213303	BRACKET	670213303 BRACKET	$9.84	1
19	670213301	BRACKET	670213301 BRACKET	$9.84	1
20	670007029	SCREW	670007029 SCREW	-	8	Enquire
21	675002307	SCREW	675002307 SCREW	$2.85	10
22	675000095	NUT M6 IN STOCK	675000095 NUT M6 IN STOCK	$0.81	6
23	670219179	BRACKET	670219179 BRACKET	$15.83	2
26	675001769	CAP	675001769 CAP	$1.18	2
27	670036841	ADHESIVE PLUG	670036841 ADHESIVE PLUG	$3.27	4
28	670174560	SCREW SELF DRILL	670174560 SCREW SELF DRILL	$1.79	27
29	670005230	PLUG IN STOCK	670005230 PLUG IN STOCK	$3.27	20
33	675007422	INSERT	675007422 INSERT	$0.66	4
34	675002158	NUT	675002158 NUT EU CN UK JP ME JRH N0 N8 UK3 GB;	$0.70	2
35	675000480	SCREW	675000480 SCREW	$1.23	2
36	675000408	BLOCK	675000408 BLOCK	$2.30	2

Rear Structural Frames And Sheet Panels

Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP

Maserati GranTurismo M189 TROFEO AUTOMATIC 4WD 3.0 BT V6 550 HP - REAR STRUCTURAL FRAMES AND SHEET PANELS

Add to Shopping Cart
