Doors: Mechanisms

Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP

Find Your Part

Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP - DOORS: MECHANISMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
F670167445 LH DOOR OUTER HANDLE Enquire To Order
670167442 RH DOOR OUTER HANDLE Enquire To Order
670275658 RH DOOR OUTER HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
670179542 BRACKET $105.47 To Order
670157748 RH EXTERNAL DOOR HANDLE RETAINING BRACKET $143.38 To Order
Photo Part No Description Price (each) Stock
670158618 LH FRONT DOOR LOCK LHD $227.85 To Order
670158639 RH FRONT DOOR LOCK LHD $227.85 To Order
Photo Part No Description Price (each) Stock
670303192 TIE ROD $24.33 To Order
Photo Part No Description Price (each) Stock
670177387 FRT DOOR GASKET $2.89 To Order
Photo Part No Description Price (each) Stock
670177388 FRT DOOR GASKET $6.63 To Order
Photo Part No Description Price (each) Stock
670174459 LOCK STRIKER $38.00 To Order
Photo Part No Description Price (each) Stock
675000159 LH LOWER HINGE $27.02 To Order
675000161 RH LOWER HINGE $27.95 IN STOCK
Photo Part No Description Price (each) Stock
675000160 LH UPPER HINGE $28.73 To Order
675000162 RH UPPER HINGE $46.83 IN STOCK
Photo Part No Description Price (each) Stock
670158620 WINDOW MECHANISM $423.27 To Order
670158617 WINDOW MECHANISM $438.96 To Order
Photo Part No Description Price (each) Stock
673016542 LH FRONT DOOR STRICKER REINF $43.96 To Order
673016549 RH FRONT DOOR STRICKER REINF $43.96 To Order
Photo Part No Description Price (each) Stock
675000485 SCREWM10 $1.65 To Order
Photo Part No Description Price (each) Stock
675000005 SCREWM 8x15 $2.42 IN STOCK
Photo Part No Description Price (each) Stock
675000095 NUT M6 $0.83 IN STOCK
Photo Part No Description Price (each) Stock
675002292 NUT $1.41 To Order
Photo Part No Description Price (each) Stock
670006983 NUT $1.83 To Order
Photo Part No Description Price (each) Stock
675001327 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
675002243 SCREW M8X25 TORX T40 $0.85 To Order
Photo Part No Description Price (each) Stock
675001811 SCREW $1.00 To Order
View All

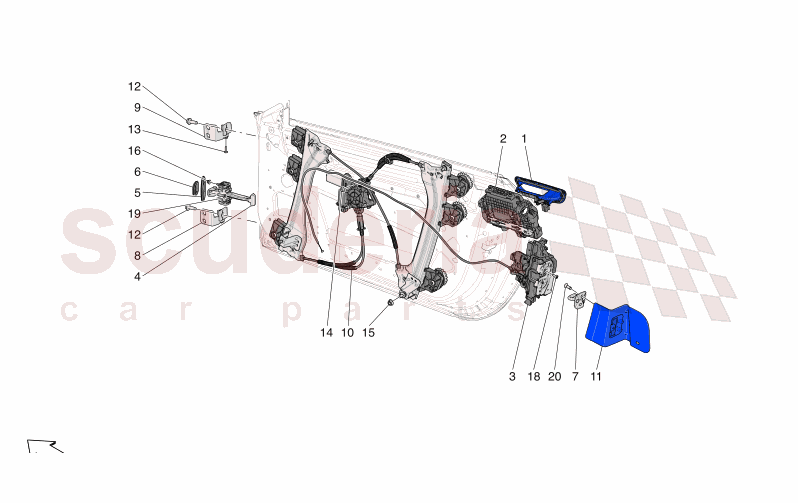

DOORS: MECHANISMS of Maserati Maserati GranCabrio M189 AUTOMATIC 4WD 3.0 BT V6 490 HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 F670167445
LH DOOR OUTER HANDLE
Available with: FUORISERIE DOOR HANDLES ; EU CN US JP ME KO N0; 		- 1 Enquire
1 670167442
RH DOOR OUTER HANDLE
Not available with: FUORISERIE DOOR HANDLES; EU CN US JP ME KO N0; 		- 1 Enquire
1 670275658
RH DOOR OUTER HANDLE
Available with: PLANT SPECIFIC PAINT Not available with: SPECIFIC PAINT; EU CN US JP ME KO N0; 		- 1 Enquire
2 670179542
BRACKET
EU CN US JP ME KO N0; 		$105.47 1
2 670157748
RH EXTERNAL DOOR HANDLE RETAINING BRACKET
EU CN US JP ME KO N0; 		$143.38 1
3 670158618
LH FRONT DOOR LOCK LHD
EU CN US JP ME KO N0; 		$227.85 1
3 670158639
RH FRONT DOOR LOCK LHD
EU CN US JP ME KO N0; 		$227.85 1
4 670303192
TIE ROD
REPLACE TIE RODS ON BOTH SIDES FOR ASSEMBLY <8001040; WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 8001040 - 99999999; 		$24.33 2
5 670177387
FRT DOOR GASKET 		$2.89 2
6 670177388
FRT DOOR GASKET 		$6.63 2
7 670174459
LOCK STRIKER 		$38.00 2
8 675000159
LH LOWER HINGE 		$27.02 1
8 675000161
RH LOWER HINGE
IN STOCK 		$27.95 1
9 675000160
LH UPPER HINGE 		$28.73 1
9 675000162
RH UPPER HINGE
IN STOCK 		$46.83 1
10 670158620
WINDOW MECHANISM 		$423.27 1
10 670158617
WINDOW MECHANISM 		$438.96 1
11 673016542
LH FRONT DOOR STRICKER REINF 		$43.96 1
11 673016549
RH FRONT DOOR STRICKER REINF 		$43.96 1
12 675000485
SCREWM10 		$1.65 12
13 675000005
SCREWM 8x15
IN STOCK 		$2.42 4
14 675000095
NUT M6
IN STOCK 		$0.83 6
15 675002292
NUT 		$1.41 8
16 670006983
NUT 		$1.83 4
18 675001327
SCREW 		$1.00 6
19 675002243
SCREW M8X25 TORX T40 		$0.85 2
20 675001811
SCREW 		$1.00 4
