Braking System

Maserati 4200 Coupe (2002-2004) GT

Find Your Part

Maserati 4200 Coupe (2002-2004) GT - BRAKING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
198983 HYDRAULIC GROUP $2,960.15 To Order
192444 HYDRAULIC GROUP $3,523.98 To Order
Photo Part No Description Price (each) Stock
195570 CONTROL UNIT FIXING BRACKET $72.16 To Order
Photo Part No Description Price (each) Stock
193877 CLIP $1.55 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.58 IN STOCK
Photo Part No Description Price (each) Stock
12646604 WASHER $1.76 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.33 IN STOCK
Photo Part No Description Price (each) Stock
207998 BRAKE PIPE FROM ABS CENTER UNITTO L.H. FRONTFLEXIBLE PIPE $15.78 To Order
Photo Part No Description Price (each) Stock
208000 RH FRONT BRAKE PIPE $116.91 To Order
Photo Part No Description Price (each) Stock
196620 FRONT BRAKE PIPE FROM PUMP TO UNIT $10.41 To Order
208005 FRONT BRAKE PIPE FROM PUMP TO UNIT $10.41 To Order
Photo Part No Description Price (each) Stock
208004 REAR BRAKE PIPE FROM PUMP TO UNIT $13.30 To Order
196619 REAR BRAKE PIPE FROM PUMP TO UNIT $13.30 To Order
Photo Part No Description Price (each) Stock
195581 L.H. REAR BRAKE PIPE $23.43 To Order
208011 L.H. REAR BRAKE PIPE $26.82 To Order
Photo Part No Description Price (each) Stock
195582 R.H. REAR BRAKE PIPE $22.60 To Order
208012 R.H. REAR BRAKE PIPE $22.60 To Order
Photo Part No Description Price (each) Stock
185954 RH FRONT CALIPER RIGID PIPE $21.35 To Order
202777 RH FRONT CALIPER RIGID PIPE $49.07 To Order
185955 LH FRONT CALIPER RIGID PIPE $24.10 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
181897 CLIP $1.84 To Order
Photo Part No Description Price (each) Stock
185956 BRAKE FLEXIBLE PIPE TO FRONT CALIPERS $144.43 To Order
Photo Part No Description Price (each) Stock
228185 CLIP $4.66 To Order
Photo Part No Description Price (each) Stock
232160 VERTICAL ACCELERATION SENSOR $171.71 To Order
Photo Part No Description Price (each) Stock
14084111 NUT $0.97 IN STOCK
Photo Part No Description Price (each) Stock
202762 L.H.BRAKE PIPE SUPPORT BRACKET $12.27 To Order
185792 R.H.BRAKE PIPE SUPPORT BRACKET $9.25 To Order
202763 R.H.BRAKE PIPE SUPPORT BRACKET $11.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $1.80 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.34 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER $1.22 IN STOCK
Photo Part No Description Price (each) Stock
208016 L.H. REAR CALIPER INTERMEDIATE BRAKE PIPE $14.57 To Order
Photo Part No Description Price (each) Stock
208017 R.H. REAR CALIPER INTERMEDIATE BRAKE PIPE $106.10 To Order
Photo Part No Description Price (each) Stock
208013 LH REAR CALIPER RIGID PIPE $49.07 IN STOCK
Photo Part No Description Price (each) Stock
208015 RH REAR CALIPER RIGID PIPE $20.44 To Order
Photo Part No Description Price (each) Stock
387401155 BRAKE FLEXIBLE PIPE TO REAR CALIPERS $221.06 To Order
Photo Part No Description Price (each) Stock
181897 CLIP $1.84 To Order
Photo Part No Description Price (each) Stock
327456313 SPACER RING $1.55 To Order
Photo Part No Description Price (each) Stock
387400330 UNION $24.67 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $2.23 To Order
Photo Part No Description Price (each) Stock
155751 CLIP $4.17 To Order
Photo Part No Description Price (each) Stock
10977687 SCREW $2.23 To Order
Photo Part No Description Price (each) Stock
12638178 Washer $1.89 IN STOCK
Photo Part No Description Price (each) Stock
193617 PIPES PROTECTION BRACKET $181.80 To Order
187464 PIPES PROTECTION BRACKET $11.79 To Order
Photo Part No Description Price (each) Stock
387400402 GASKET $2.23 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.37 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $1.75 To Order
Photo Part No Description Price (each) Stock
14447025 WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
379200408 CLIP $1.55 IN STOCK
Photo Part No Description Price (each) Stock
188335 CLIP $4.67 To Order
Photo Part No Description Price (each) Stock
212645 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
377430340 BLOCK $1.01 To Order
Photo Part No Description Price (each) Stock
198575 CLIP $5.23 To Order
Photo Part No Description Price (each) Stock
198574 CLIP $4.12 IN STOCK
Photo Part No Description Price (each) Stock
190409 CLIP $4.67 To Order
Photo Part No Description Price (each) Stock
377430346 CLIP $1.55 To Order
View All

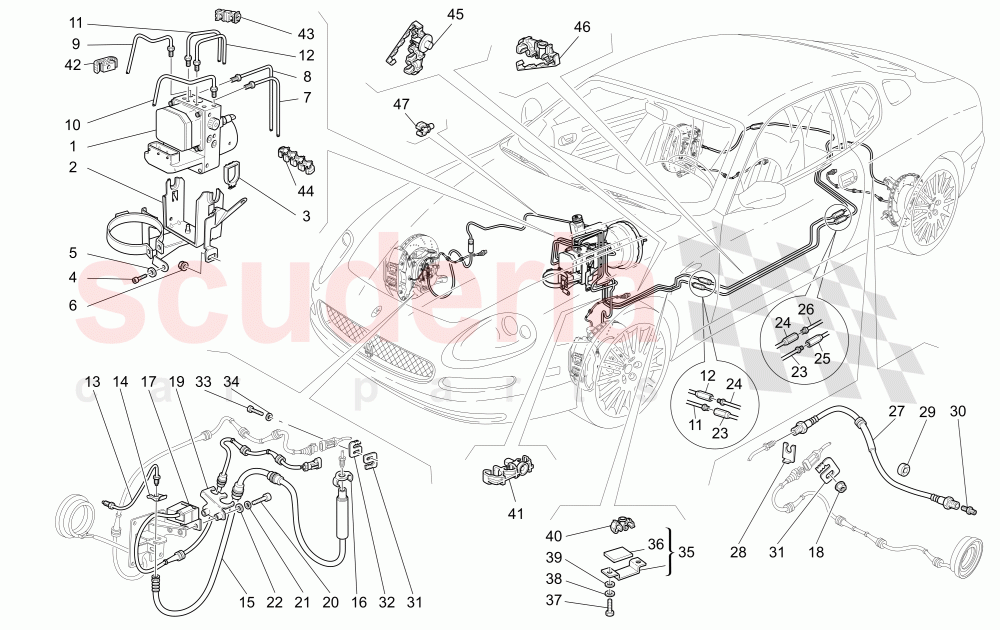

BRAKING SYSTEM of Maserati Maserati 4200 Coupe (2002-2004) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 198983
HYDRAULIC GROUP
Valid for F1- -Valid also for cars USA and CDN NOT F1 		$2,960.15 1
1 192444
HYDRAULIC GROUP
Not for F1- -Not for USA and CDN 		$3,523.98 1
2 195570
CONTROL UNIT FIXING BRACKET 		$72.16 1
3 193877
CLIP 		$1.55 2
4 231617
SCREW M6 X 18
IN STOCK 		$2.58 2
5 12646604
WASHER 		$1.76 2
6 14039614
NUT
IN STOCK 		$1.33 1
7 207998
BRAKE PIPE FROM ABS CENTER UNITTO L.H. FRONTFLEXIBLE PIPE 		$15.78 1
8 208000
RH FRONT BRAKE PIPE 		$116.91 (9.3% off) 1
9 196620
FRONT BRAKE PIPE FROM PUMP TO UNIT 		$10.41 1
9 208005
FRONT BRAKE PIPE FROM PUMP TO UNIT
Valid after stock exhaustion of 196620 		$10.41 (17.6% off) 1
10 208004
REAR BRAKE PIPE FROM PUMP TO UNIT
Valid after stock exhaustion of 196619 		$13.30 (8.3% off) 1
10 196619
REAR BRAKE PIPE FROM PUMP TO UNIT 		$13.30 1
11 195581
L.H. REAR BRAKE PIPE 		$23.43 1
11 208011
L.H. REAR BRAKE PIPE
Valid after stock exhaustion of 195581 		$26.82 1
12 195582
R.H. REAR BRAKE PIPE 		$22.60 1
12 208012
R.H. REAR BRAKE PIPE
Valid after stock exhaustion of 195582 		$22.60 (14.9% off) 1
13 185954
RH FRONT CALIPER RIGID PIPE
Valid till car Ass. Nr. 13411 		$21.35 (9.9% off) 1
13 202777
RH FRONT CALIPER RIGID PIPE
Valid from car Ass. Nr. 13412 		$49.07 (15.1% off) 1
13 185955
LH FRONT CALIPER RIGID PIPE
Valid till car Ass. Nr. 13411 		$24.10 1
13 202776
LH FRONT CALIPER RIGID PIPE
Valid from car Ass. Nr. 13412 		$49.07 (18.4% off) 1
14 181897
CLIP 		$1.84 2
15 185956
BRAKE FLEXIBLE PIPE TO FRONT CALIPERS 		$144.43 2
16 228185
CLIP 		$4.66 2
17 232160
VERTICAL ACCELERATION SENSOR
Optional- -Sport version 		$171.71 2
18 14084111
NUT
IN STOCK 		$0.97 2
19 202762
L.H.BRAKE PIPE SUPPORT BRACKET
Valid from car Ass. Nr. 13412 		$12.27 1
19 185792
R.H.BRAKE PIPE SUPPORT BRACKET
Valid till car Ass. Nr. 13411 		$9.25 (13.6% off) 1
19 202763
R.H.BRAKE PIPE SUPPORT BRACKET
Valid from car Ass. Nr. 13412 		$11.69 1
19 185793
L.H.BRAKE PIPE SUPPORT BRACKET
Valid till car Ass. Nr. 13411 		$9.82 (14.4% off) 1
20 14305324
ALLEN SCREW M6 X 20
IN STOCK 		$1.80 4
21 11197774
WAVY WASHER D.6.4 X 12 X 1.2
IN STOCK 		$2.34 4
22 10519424
WASHER
IN STOCK 		$1.22 4
23 208016
L.H. REAR CALIPER INTERMEDIATE BRAKE PIPE 		$14.57 1
24 208017
R.H. REAR CALIPER INTERMEDIATE BRAKE PIPE 		$106.10 1
25 208013
LH REAR CALIPER RIGID PIPE
IN STOCK 		$49.07 (7.4% off) 1
26 208015
RH REAR CALIPER RIGID PIPE 		$20.44 1
27 387401155
BRAKE FLEXIBLE PIPE TO REAR CALIPERS 		$221.06 2
28 181897
CLIP 		$1.84 2
29 327456313
SPACER RING 		$1.55 2
30 387400330
UNION 		$24.67 (14.9% off) 2
31 162606
CLIP 		$2.23 4
32 155751
CLIP 		$4.17 (14.4% off) 2
33 10977687
SCREW 		$2.23 2
34 12638178
Washer
IN STOCK 		$1.89 2
35 193617
PIPES PROTECTION BRACKET
Valid for USA and CDN 		$181.80 (15% off) 1
35 187464
PIPES PROTECTION BRACKET
Not for USA and CDN 		$11.79 (1.7% off) 1
36 387400402
GASKET 		$2.23 (4.3% off) 1
37 10977824
SCREW
IN STOCK 		$1.37 (37.4% off) 2
38 11181574
WASHER
D.5.3-11X0.9 		$1.75 2
39 14447025
WASHER 		$2.01 2
40 379200408
CLIP
IN STOCK 		$1.55 1
41 188335
CLIP 		$4.67 1
42 212645
CLIP 		- - Enquire
43 377430340
BLOCK 		$1.01 -
44 198575
CLIP 		$5.23 1
45 198574
CLIP
IN STOCK 		$4.12 1
46 190409
CLIP 		$4.67 (19.5% off) -
47 377430346
CLIP 		$1.55 5
