Fuel Pumps And Connection Lines

Maserati 4200 Coupe (2002-2004) GT

Find Your Part

Maserati 4200 Coupe (2002-2004) GT - FUEL PUMPS AND CONNECTION LINES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
181205 FUEL PUMP $313.30 To Order
Photo Part No Description Price (each) Stock

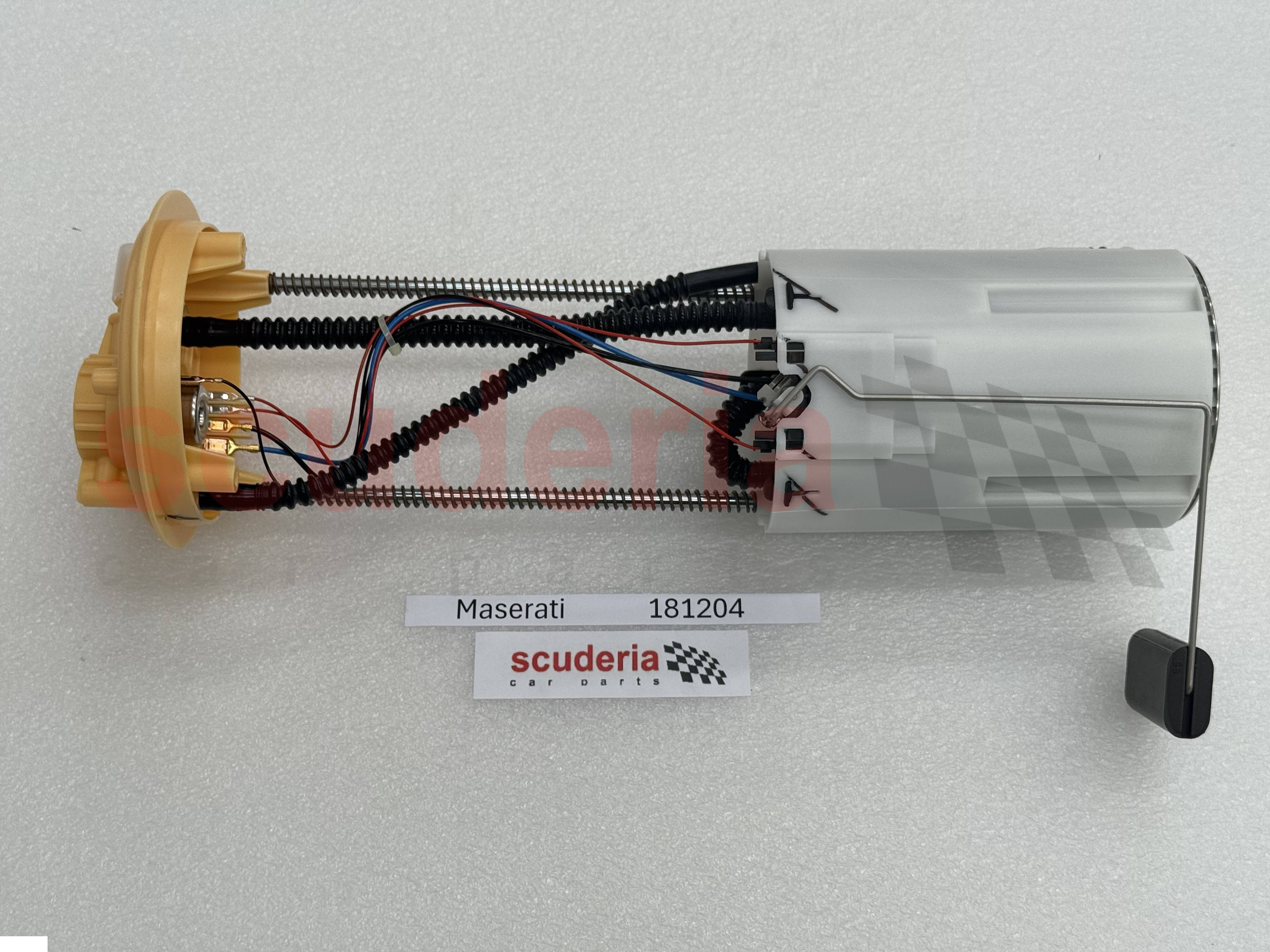

181204 RH FUEL PUMP AND LEVEL SENSOR $353.14 To Order
Photo Part No Description Price (each) Stock
181681 Fuel Pump Gasket $30.73 IN STOCK
Photo Part No Description Price (each) Stock
181682 FUEL PUMP RETAINER RING NUT $33.68 IN STOCK
Photo Part No Description Price (each) Stock
197655 R.H. FUEL DELIVERY TUBE $278.81 To Order
Photo Part No Description Price (each) Stock
197656 L.H. FUEL DELIVERY TUBE $262.07 To Order
Photo Part No Description Price (each) Stock
183208 R.H. FUEL DELIVERY UNDERFRAME TUBE $93.43 To Order
Photo Part No Description Price (each) Stock
183211 L.H. FUEL DELIVERY UNDERFRAME TUBE $93.43 To Order
Photo Part No Description Price (each) Stock
206586 R.H. FUEL DELIVERY PIPE TO FLEXIBLE $165.51 To Order
Photo Part No Description Price (each) Stock
206587 L.H. FUEL DELIVERY PIPE TO FLEXIBLE $146.80 To Order
Photo Part No Description Price (each) Stock
187464 PIPES PROTECTION BRACKET $11.82 To Order
Photo Part No Description Price (each) Stock
387400402 GASKET $2.24 To Order
Photo Part No Description Price (each) Stock
10977824 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $1.75 To Order
Photo Part No Description Price (each) Stock
14447025 WASHER $2.02 To Order
Photo Part No Description Price (each) Stock
379200408 CLIP $1.56 IN STOCK
Photo Part No Description Price (each) Stock
140731 CLIP $1.02 To Order
Photo Part No Description Price (each) Stock
155781 CLIP ANCHOR $1.56 To Order
Photo Part No Description Price (each) Stock
190410 CLIP $3.34 To Order
Photo Part No Description Price (each) Stock
389200406 CLIP $0.70 To Order
Photo Part No Description Price (each) Stock
191047 CLIP $3.37 To Order
Photo Part No Description Price (each) Stock
379200408 CLIP $1.56 IN STOCK
Photo Part No Description Price (each) Stock
194747 R.H. FUEL DELIVERY PIPE TO FLEXIBLE $92.53 To Order
Photo Part No Description Price (each) Stock
194748 L.H. FUEL DELIVERY PIPE TO FLEXIBLE $91.32 To Order
Photo Part No Description Price (each) Stock
195052 CLIP $1.63 To Order
Photo Part No Description Price (each) Stock
159521 CLIP $5.26 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.33 IN STOCK
Photo Part No Description Price (each) Stock
190410 CLIP $3.34 To Order
Photo Part No Description Price (each) Stock
193544 COMPLETE FUEL DELIVERY TUBE $395.06 To Order
View All

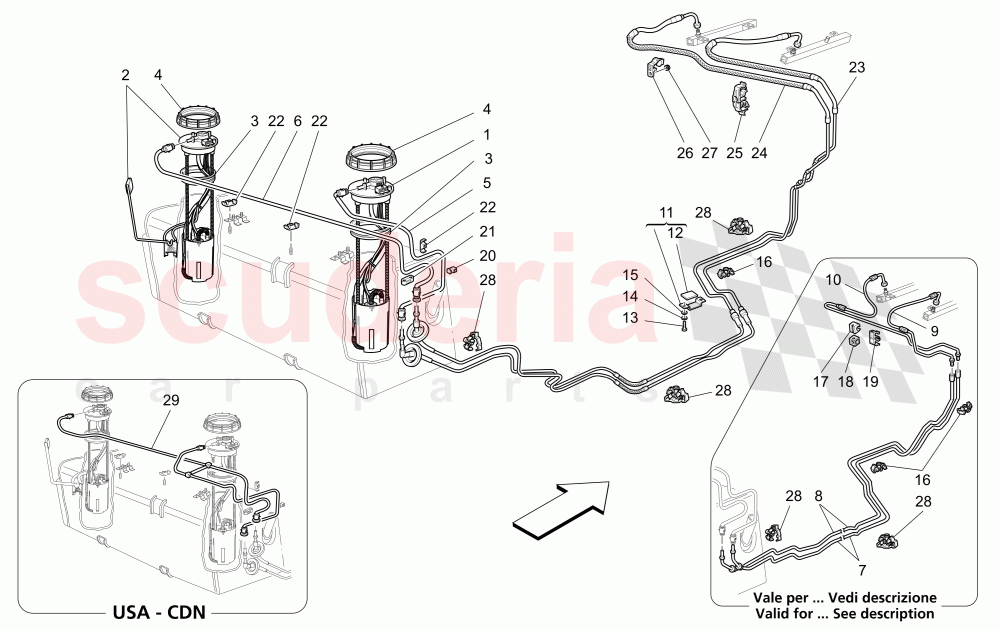

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati 4200 Coupe (2002-2004) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 181205
FUEL PUMP 		$313.30 1
2 181204
RH FUEL PUMP AND LEVEL SENSOR 		$353.14 1
3 181681
Fuel Pump Gasket
IN STOCK 		$30.73 2
4 181682
FUEL PUMP RETAINER RING NUT
IN STOCK 		$33.68 2
5 197655
R.H. FUEL DELIVERY TUBE
Not for USA and CDN 		$278.81 1
6 197656
L.H. FUEL DELIVERY TUBE
Not for USA and CDN 		$262.07 1
7 183208
R.H. FUEL DELIVERY UNDERFRAME TUBE
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$93.43 1
8 183211
L.H. FUEL DELIVERY UNDERFRAME TUBE
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$93.43 1
9 206586
R.H. FUEL DELIVERY PIPE TO FLEXIBLE
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$165.51 1
10 206587
L.H. FUEL DELIVERY PIPE TO FLEXIBLE
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$146.80 1
11 187464
PIPES PROTECTION BRACKET 		$11.82 (1.4% off) 1
12 387400402
GASKET 		$2.24 (3.9% off) 1
13 10977824
SCREW
IN STOCK 		$1.38 (37% off) 2
14 11181574
WASHER
D.5.3-11X0.9 		$1.75 2
15 14447025
WASHER 		$2.02 2
16 379200408
CLIP
IN STOCK 		$1.56 -
17 140731
CLIP
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$1.02 2
18 155781
CLIP ANCHOR
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$1.56 2
19 190410
CLIP
Valid for USA and CDN- -Valid till car Ass. Nr. 13308 		$3.34 (13.9% off) 2
20 389200406
CLIP 		$0.70 (22.2% off) 1
21 191047
CLIP 		$3.37 1
22 379200408
CLIP
IN STOCK 		$1.56 3
23 194747
R.H. FUEL DELIVERY PIPE TO FLEXIBLE
Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions 		$92.53 1
24 194748
L.H. FUEL DELIVERY PIPE TO FLEXIBLE
Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions 		$91.32 1
25 195052
CLIP
Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions 		$1.63 2
26 159521
CLIP
Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions 		$5.26 1
27 14039614
NUT
Not for USA and CDN- -From car Ass. Nr. 13309 valid for all versions
IN STOCK 		$1.33 1
28 190410
CLIP 		$3.34 (13.9% off) -
29 193544
COMPLETE FUEL DELIVERY TUBE
Valid for USA and CDN 		$395.06 (28.3% off) 1
