Rear Under-Chassis And Differential Fastening

Maserati 3200 GT / Assetto Corsa

Find Your Part

Maserati 3200 GT / Assetto Corsa - REAR UNDER-CHASSIS AND DIFFERENTIAL FASTENING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
382700338 SIDE TIE ROD $9.11 To Order
Photo Part No Description Price (each) Stock
326656320 WASHER $15.78 To Order
Photo Part No Description Price (each) Stock
382700358 PLATE $3.17 To Order
Photo Part No Description Price (each) Stock
382700354 SCREW $58.02 To Order
Photo Part No Description Price (each) Stock
382700336 SIDE TIE ROD $21.92 To Order
Photo Part No Description Price (each) Stock
12644921 WASHER $1.22 To Order
Photo Part No Description Price (each) Stock
382700357 PLATE $3.17 To Order
Photo Part No Description Price (each) Stock
382700355 SCREW $38.26 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $1.37 To Order
Photo Part No Description Price (each) Stock
16043221 SCREW $1.90 IN STOCK
Photo Part No Description Price (each) Stock
15216821 SCREW $4.01 To Order
Photo Part No Description Price (each) Stock
376200599 WASHER $16.17 To Order
Photo Part No Description Price (each) Stock
12577511 NUT $2.14 To Order
Photo Part No Description Price (each) Stock
386200165 DIFFERENTIAL SIDE SUPPORT $130.82 To Order
Photo Part No Description Price (each) Stock
97771 SILENT BLOCK $63.61 To Order
Photo Part No Description Price (each) Stock
382700011 REAR FRAME $6,680.61 To Order
Photo Part No Description Price (each) Stock
10520125 Washer $3.08 IN STOCK
Photo Part No Description Price (each) Stock
14048925 NUT $2.64 To Order
Photo Part No Description Price (each) Stock
387000306 LOWER LEVER TO SUBFRAME FORK. $43.55 To Order
Photo Part No Description Price (each) Stock
382700121 FLEXIBLE BLOCK $43.66 To Order
Photo Part No Description Price (each) Stock
4425717 WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 $1.75 IN STOCK
Photo Part No Description Price (each) Stock
15216521 SCREW $8.94 To Order
Photo Part No Description Price (each) Stock
12577221 SELF-LOCKING NUT $2.14 To Order
Photo Part No Description Price (each) Stock
377030382 WASHER $6.62 To Order
377030381 WASHER $5.51 To Order
377030380 WASHER $21.93 To Order
...and 2 more part variants. See table on right for more details.
View All

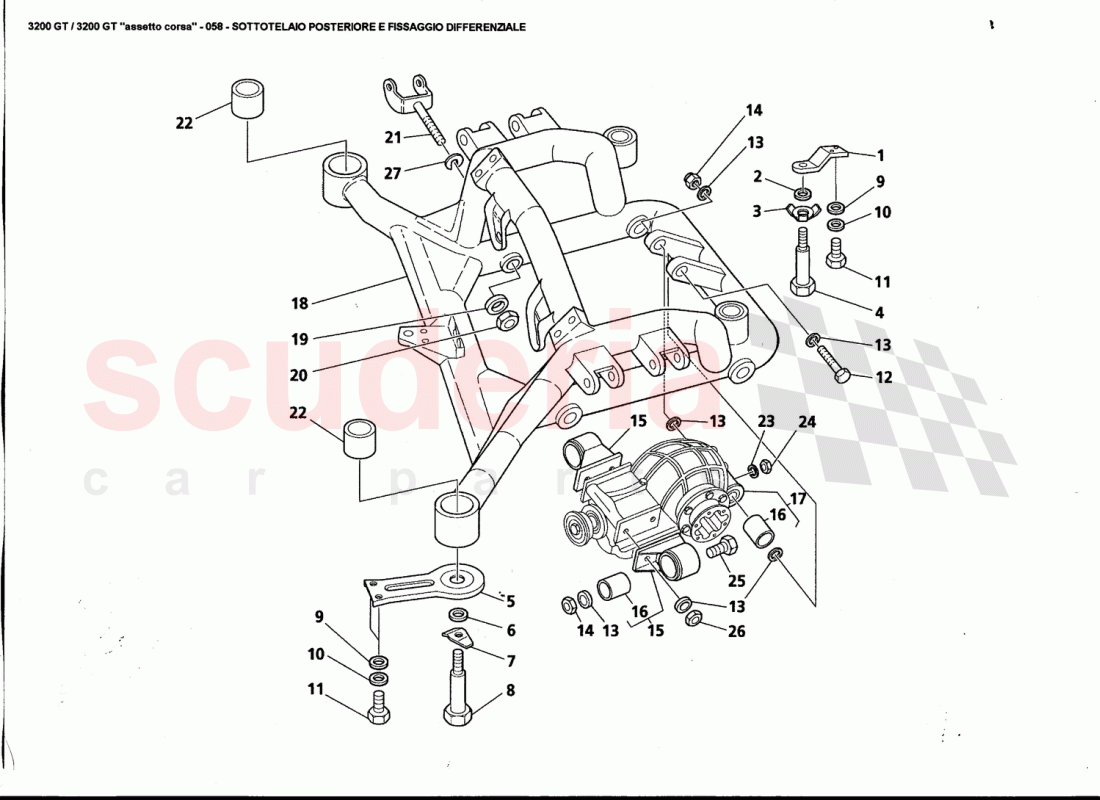

REAR UNDER-CHASSIS AND DIFFERENTIAL FASTENING of Maserati Maserati 3200 GT / Assetto Corsa Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 382700338
SIDE TIE ROD 		$9.11 2
2 326656320
WASHER 		$15.78 2
3 382700358
PLATE 		$3.17 2
4 382700354
SCREW 		$58.02 2
5 382700336
SIDE TIE ROD 		$21.92 2
6 12644921
WASHER 		$1.22 2
7 382700357
PLATE 		$3.17 2
8 382700355
SCREW 		$38.26 2
9 84653800
WASHER 		- 8 Enquire
10 12604474
WASHER 		$1.37 8
11 16043221
SCREW
IN STOCK 		$1.90 8
12 15216821
SCREW 		$4.01 1
13 376200599
WASHER 		$16.17 10
14 12577511
NUT 		$2.14 3
15 386200165
DIFFERENTIAL SIDE SUPPORT 		$130.82 2
16 97771
SILENT BLOCK 		$63.61 3
17 386200169
DIFFERENTIAL REAR SUPPORT 		$1,758.68 1
18 382700011
REAR FRAME 		$6,680.61 1
19 10520125
Washer
IN STOCK 		$3.08 4
20 14048925
NUT 		$2.64 4
21 387000306
LOWER LEVER TO SUBFRAME FORK. 		$43.55 4
22 382700121
FLEXIBLE BLOCK 		$43.66 4
23 4425717
WASHER 		$1.55 4
24 104030
NYLOC NUT M8 X 1.25 X 9.5
IN STOCK 		$1.75 4
25 15216521
SCREW 		$8.94 2
26 12577221
SELF-LOCKING NUT 		$2.14 6
27 377030382
WASHER 		$6.62 -
27 377030381
WASHER 		$5.51 -
27 377030380
WASHER 		$21.93 -
27 377030379
WASHER 		$5.51 -
27 377030378
WASHER 		$4.57 -
