Name: COMPONENTS FOR GEARBOX
Rating: 5.0 (1 reviews)

View All

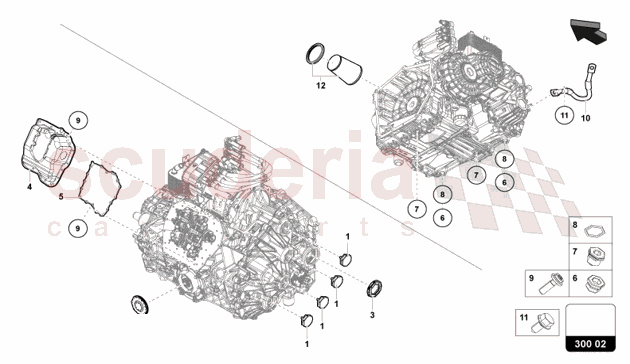

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CS301467C	END CAP	$21.23	To Order

Photo	Part No	Description	Price (each)	Stock
	GC301125A	GEARBOX COVER	$181.54	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT011516	SEAL RING	$212.81	To Order

Photo	Part No	Description	Price (each)	Stock
	47B325201	COVER	$967.59	To Order

Photo	Part No	Description	Price (each)	Stock
	47B311381	SEAL	$221.57	To Order

Photo	Part No	Description	Price (each)	Stock
	N90215404	SEALING PLUG	$8.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	47B525151	OIL DRAIN PLUG, MAGNETIC	$55.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N0438092	SEAL RING	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	N91168701	HEXALOBULAR FLANGE SCREW	$2.95	To Order

Photo	Part No	Description	Price (each)	Stock
	47B971237A	CABLE	$199.08	To Order

Photo	Part No	Description	Price (each)	Stock
	N10668401	HEXAGON BOLT	$2.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	DX398391	SHAFT OIL SEAL	$1,212.91	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	CS301467C	END CAP	CS301467C END CAP	$21.23	1
2	GC301125A	GEARBOX COVER	GC301125A GEARBOX COVER	$181.54	1
3	WHT011516	SEAL RING	WHT011516 SEAL RING	$212.81	1
4	47B325201	COVER	47B325201 COVER	$967.59	1
5	47B311381	SEAL	47B311381 SEAL	$221.57	1
6	N90215404	SEALING PLUG IN STOCK	N90215404 SEALING PLUG M24X1,5 IN STOCK	$8.82	1
7	47B525151	OIL DRAIN PLUG, MAGNETIC	47B525151 OIL DRAIN PLUG, MAGNETIC M18X1,5	$55.08	1
8	N0438092	SEAL RING	N0438092 SEAL RING 24X29	$7.33	1
9	N91168701	HEXALOBULAR FLANGE SCREW	N91168701 HEXALOBULAR FLANGE SCREW	$2.95	1
10	47B971237A	CABLE	47B971237A CABLE	$199.08	1
11	N10668401	HEXAGON BOLT IN STOCK	N10668401 HEXAGON BOLT M8X16 IN STOCK	$2.95	1
12	DX398391	SHAFT OIL SEAL	DX398391 SHAFT OIL SEAL	$1,212.91	1

Components For Gearbox

Lamborghini Revuelto Coupe
