Find Your Part

Manual Clutch of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Manual Clutch

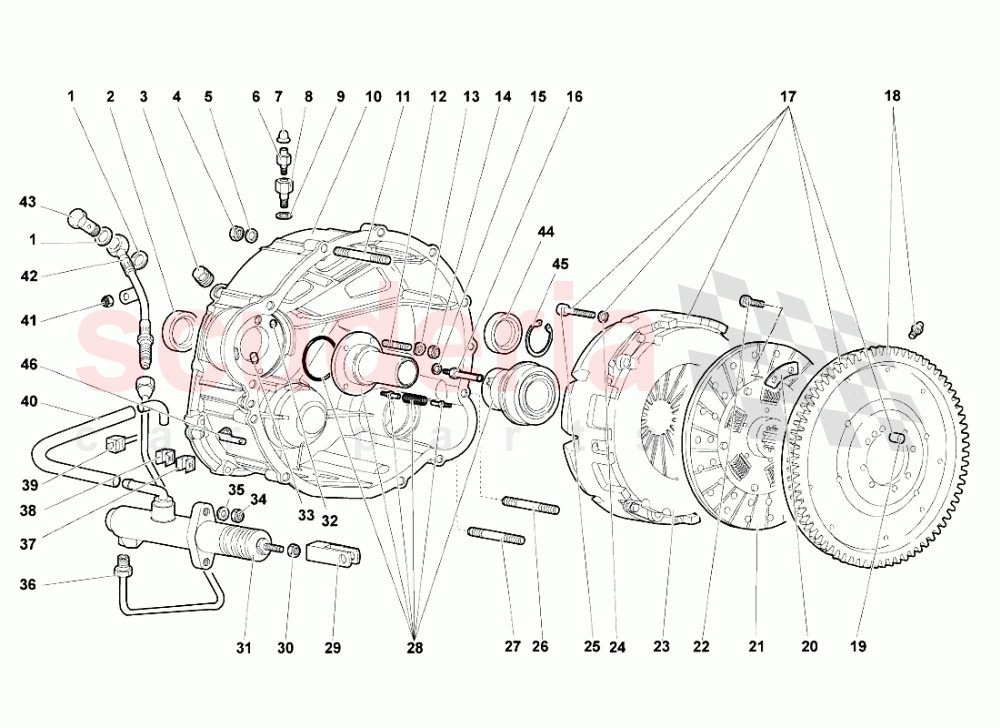

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N0138131	WASHER IN STOCK	N0138131 WASHER IN STOCK	$0.51 MSRP: ~~7.34~~ (93.1% off)	2
002	86141243	SEAL RING	86141243 SEAL RING	$53.21	1
003	86323501	HELI-COIL	86323501 HELI-COIL	$6.80	1
004	8200806	NUT	8200806 NUT	$0.34 MSRP: ~~7.33~~ (95.4% off)	12
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.10	12
006	86301127	BLEEDER SCREW 05-2812-50 BREMBO	86301127 BLEEDER SCREW 05-2812-50 BREMBO	$2.37	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.86 MSRP: ~~7.25~~ (88.1% off)	1
008	86323173	CONNECTOR	86323173 CONNECTOR	$68.74	1
009	N91014802	SEAL RING	N91014802 SEAL RING	$10.98	1
010	86323209C	CLUTCH HOUSING IN STOCK	86323209C CLUTCH HOUSING IN STOCK	$2,520.00 MSRP: ~~2,580.00~~ (2.3% off)	1
011	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.64	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.25	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.24 MSRP: ~~7.15~~ (82.7% off)	3
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	2
015	WHT003213	WASHER	WHT003213 WASHER	$1.24 MSRP: ~~7.15~~ (82.7% off)	3
016	86141161A	ANTIROTATION BAR HOLD	86141161A ANTIROTATION BAR HOLD	$30.14	1
017	7M105269A	Clutch Flywheel IN STOCK	7M105269A Clutch Flywheel IN STOCK	$6,735.44	1
019	WHT003078	DOWEL	WHT003078 DOWEL	$41.00	1
020	410141179	Retaining Plate	410141179 Retaining Plate	$59.40	4
022	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$18.24	8
024	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	9
025	WHT002960	SCREW IN STOCK	WHT002960 SCREW IN STOCK	$8.24	9
026	8300807	STUD BOLT	8300807 STUD BOLT	$15.60	2
027	8300826	STUD BOLT	8300826 STUD BOLT	$10.80	1
028	86141671B	Thrust Bearing	86141671B Thrust Bearing	$4,354.65	1
029	410721213	FORK	410721213 FORK	$59.09	1
030	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	1
031	410721401A	CLUTCH PUMP	410721401A CLUTCH PUMP	$373.64	1
032	N90039604	O-RING 9.25 X 1.78 IN STOCK	N90039604 O-RING 9.25 X 1.78 IN STOCK	$10.88	1
033	WHT012530	O-RING 12.42X1.78-N IN STOCK	WHT012530 O-RING 12.42X1.78-N IN STOCK	$1.27	1
034	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	2
035	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.44	2
036	413721461	PIPE	413721461 PIPE	$722.61	1
037	400611799A	CLIP	400611799A CLIP	$0.74 MSRP: ~~7.27~~ (89.8% off)	6
038	400971848	BRACKET 0 6 MM IN STOCK	400971848 BRACKET 0 6 MM IN STOCK	$0.59 MSRP: ~~7.29~~ (91.9% off)	2
039	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.93 MSRP: ~~7.04~~ (72.6% off)	1
040	413721465	PIPE	413721465 PIPE	$17.84	1
041	8201216	NUT	8201216 NUT	$4.36	1
042	410721462	HOSE	410721462 HOSE	$87.34	1
043	N0210717	SCREW WITH HOLE	N0210717 SCREW WITH HOLE	$3.38 MSRP: ~~6.55~~ (48.4% off)	1
044	86311819	SEAL RING	86311819 SEAL RING	$51.22	1
045	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$14.17	1
046	410911085	BRACKET	410911085 BRACKET	$15.09	1
