Radiators And Electric Fans of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Radiators And Electric Fans

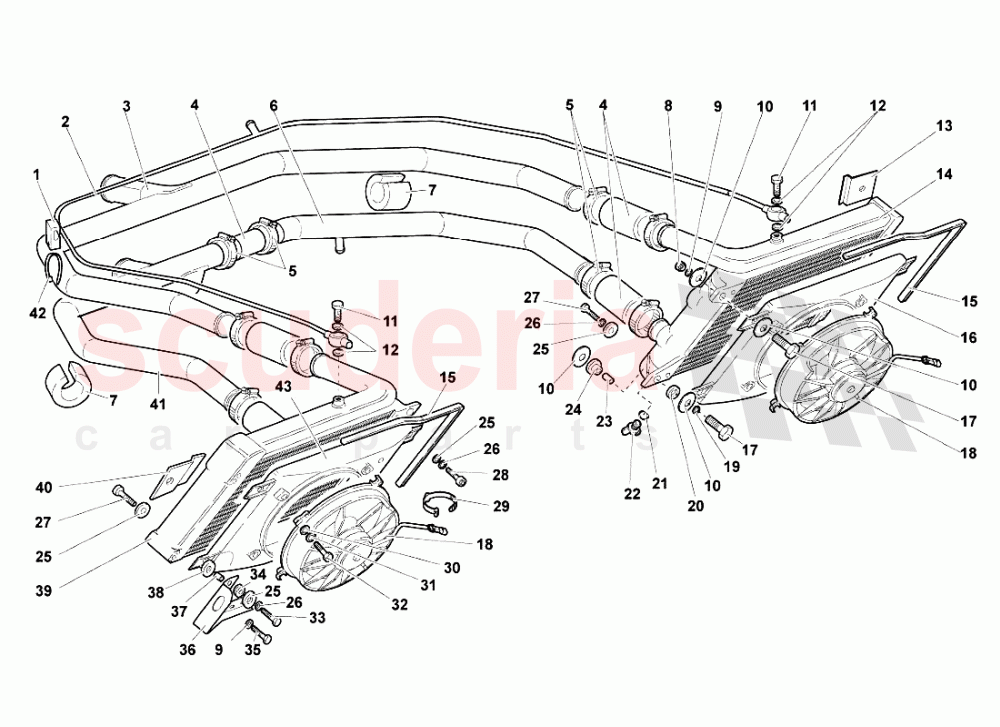

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400611799	BRACKET 0 5 MM IN STOCK	400611799 BRACKET 0 5 MM IN STOCK	$0.72 MSRP: ~~7.28~~ (90.1% off)	6
002	7M121434	PIPE	7M121434 PIPE	$467.81	1
003	7M121107	PIPE	7M121107 PIPE	$200.24	1
004	7M121074	PIPE	7M121074 PIPE	$37.41	5
005	N0245165	CLAMP	N0245165 CLAMP	$4.44	8
006	7M121102	PIPE	7M121102 PIPE	$3,055.68	1
007	7L121199	PROTECTION	7L121199 PROTECTION	$18.73	4
008	N0111849	NUT IN STOCK	N0111849 NUT IN STOCK	$2.12 MSRP: ~~7.25~~ (70.8% off)	2
009	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.43	2
010	WHT001942	WASHER IN STOCK	WHT001942 WASHER IN STOCK	$3.06	4
011	WHT000524	BANJO BOLT	WHT000524 BANJO BOLT	$26.06	2
012	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.67 MSRP: ~~7.33~~ (49.9% off)	6
013	410121235	BRACKET	410121235 BRACKET	$6.18	1
014	410121252B	RH Complete Water Radiator IN STOCK	410121252B RH Complete Water Radiator IN STOCK	$4,161.91 MSRP: ~~4,695.00~~ (11.4% off)	1
015	410121539	GASKET	410121539 GASKET	$54.26	2
016	410121334A	RH CONVEYOR	410121334A RH CONVEYOR	$1,502.88	1
017	N01034518	SCREW M8X45 IN STOCK	N01034518 SCREW M8X45 IN STOCK	$24.13	4
018	7L959465C	ELECTRIC FAN IN STOCK	7L959465C ELECTRIC FAN IN STOCK	$1,552.32	2
019	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.44	4
020	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.86	2
021	WHT003058	SEAL RING	WHT003058 SEAL RING	$1.68 MSRP: ~~7.11~~ (76.4% off)	1
022	410121299	PLUG	410121299 PLUG	$217.02	2
023	400121277	DISTANCE PIECE	400121277 DISTANCE PIECE	$9.74	2
024	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$10.80	2
025	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	8
026	WHT002963	WASHER IN STOCK	WHT002963 WASHER IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	8
027	8700614	SCREW	8700614 SCREW	$0.25	4
028	8700644	SCREW	8700644 SCREW	$0.34 MSRP: ~~7.34~~ (95.4% off)	8
029	8831515	CLAMP	8831515 CLAMP	$9.29	1
030	WHT003040	WASHER 5.3X1.5X15 (For Becker Radio System)	WHT003040 WASHER 5.3X1.5X15 (For Becker Radio System)	$7.05	4
031	WHT000769A	WASHER IN STOCK	WHT000769A WASHER IN STOCK	$0.83 MSRP: ~~7.26~~ (88.6% off)	4
032	N10430103	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10430103 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.27 MSRP: ~~7.30~~ (82.6% off)	4
033	8100623	SCREW	8100623 SCREW	$0.33	2
034	7L121585	RUBBER BUSHING	7L121585 RUBBER BUSHING	$17.60	2
035	N10536103	SCREW M8X16 IN STOCK	N10536103 SCREW M8X16 IN STOCK	$1.75 MSRP: ~~7.27~~ (75.9% off)	2
036	410813685	LH BRACKET	410813685 LH BRACKET	$211.41	1
036	410813686	RH BRACKET	410813686 RH BRACKET	$124.74	1
037	8800606	BUSHING	8800606 BUSHING	$14.80	2
038	8400635	WASHER	8400635 WASHER	$25.01	8
039	410121253B	LH COMPLETE WATER RADIATOR	410121253B LH COMPLETE WATER RADIATOR	$5,319.35	1
040	410121214	BRACKET	410121214 BRACKET	$11.73	1
041	7M121103	PIPE	7M121103 PIPE	$149.67	1
042	8830303	CLAMP	8830303 CLAMP	$0.65 MSRP: ~~7.25~~ (91% off)	3
043	410121333A	LH CONVEYOR	410121333A LH CONVEYOR	$1,434.31	1
