Electrohydraulic Abs Cu

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Electrohydraulic Abs Cu

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

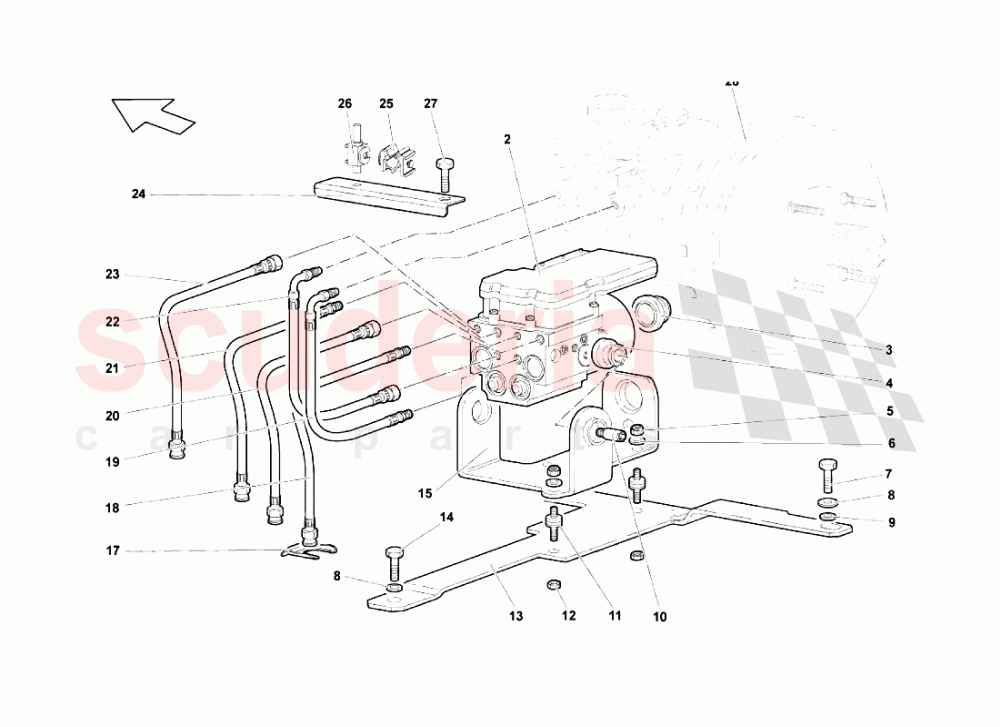

Electrohydraulic Abs Cu of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 410614517
ABS CONTROL UNIT 		$5,871.01 1
003 410614128
FLEXIBLE SUPPORT 		$52.47 1
004 410614125
FLEXIBLE SUPPORT 		$13.12 2
005 N1100637
NUT M6 		- 3 Enquire
006 WHT003213
WASHER 		$1.24 (82.7% off) 3
007 N10517304
SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK.
IN STOCK 		$3.01 (58.1% off) 2
008 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.44 3
009 N152785
WASHER 8.4 		- 2 Enquire
010 410614187
JOURNAL 		$13.12 2
011 400972081C
FLEXIBLE SUPPORT 		$17.29 3
012 N1118312
NUT M6 		- 3 Enquire
013 414614138
SUPPORT 		$66.35 1
014 N10536103
SCREW M8X16
IN STOCK 		$1.75 (75.9% off) 1
015 410614143A
BRACKET 		$107.67 1
017 191611715
HOSE BRACKET 		$1.93 (73% off) 1
018 414611761D
LEFT FRONT FLEXIBLE 		$178.01 1
019 414614739C
HOSE 		$120.82 1
020 414611762B
RIGHT FRONT FLEXIBLE 		$118.66 1
021 414611763C
LEFT REAR FLEXIBLE 		$125.54 1
022 414614740C
HOSE 		$146.78 1
023 414611764C
RIGHT REAR FLEXIBLE 		$122.05 1
024 414614513A
SUPPORT 		$23.44 1
025 400611799F
CLAMP ( - 8) 		$0.75 4
026 400611757
JOURNAL
IN STOCK 		$1.93 (72.6% off) 1
027 N10156303
SCREW M6X12 		- 1 Enquire
