Secondary Air System

Lamborghini Murcielago LP670

Find Your Part

Lamborghini Murcielago LP670 - Secondary Air System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

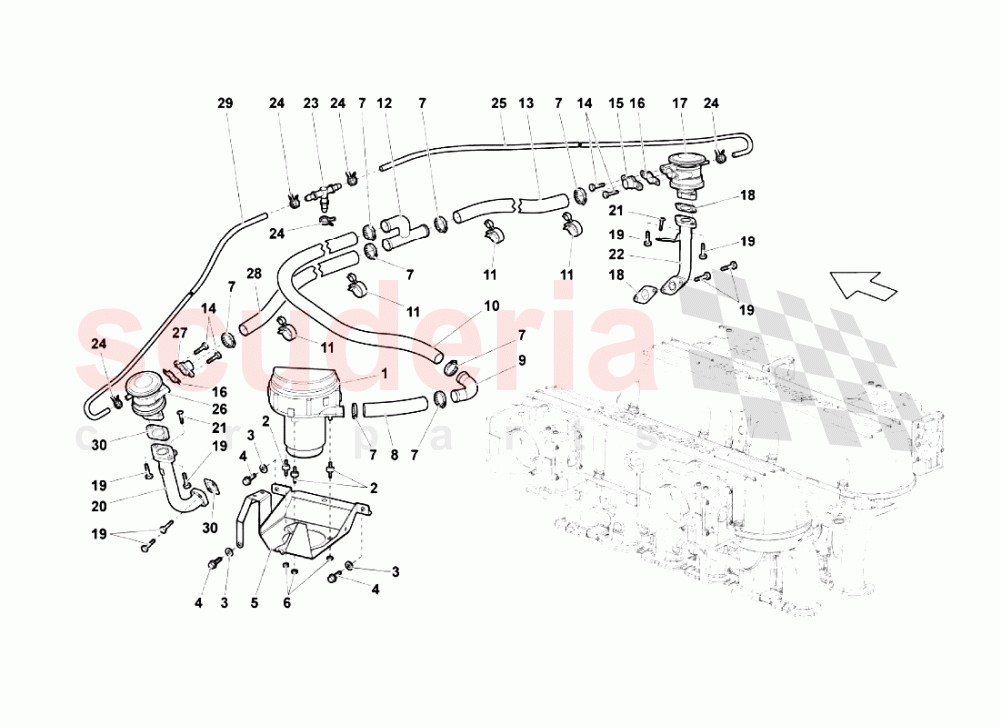

Secondary Air System of Lamborghini Lamborghini Murcielago LP670 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 78906601F
PUMP 		$662.32 1
002 400972081C
FLEXIBLE SUPPORT 		$17.26 3
003 WHT002961
WASHER
IN STOCK 		$0.39 3
004 N10718801
HEX COLLARED BOLT
IN STOCK 		$1.68 3
005 410906613B
BRACKET 		$80.20 1
006 N1508213
NUT M6 		- 3 Enquire
007 N10255601
CLAMP 		$1.93 (72.8% off) 8
008 7M131371A
PIPE 		$810.58 1
009 7M131163
CONNECTOR 		$41.16 1
010 7M131149B
PIPE 		$561.18 1
011 N10291602
CLAMP 		$5.98 4
012 7M131598
CONNECTOR 		$1,185.94 1
013 7M131611C
PIPE (RIGHT-HAND) 		$685.89 1
014 N10524202
SCREW M6X16 		$2.25 (68.9% off) 4
015 7L131585
PIPE FITTING 		$94.16 1
016 7L131358
GASKET 		$44.89 2
017 78131102N
PNEUMATIC VALVE 		$163.41 1
018 7M131354
GASKET (RIGHT-HAND) 		$12.11 2
019 N10338903
SCREW M6X16 		$48.95 8
020 7M131584A
RH PIPE 		$1,621.17 1
021 N90638102
ROUND HD. SCREW
IN STOCK 		$1.56 (78.5% off) 2
022 7M131583A
LH PIPE 		$162.13 1
023 7L133579
T-PIECE 		$7.43 1
024 400127217
CLAMP
IN STOCK 		$0.37 (95% off) 5
025 7M131145A
PIPE 		$25.40 1
026 78131102N
PNEUMATIC VALVE 		$163.41 1
027 7L131585
PIPE FITTING 		$94.16 1
028 7M131611C
PIPE (RIGHT-HAND) 		$685.89 1
029 7M131145A
PIPE 		$25.40 1
030 7M131354
GASKET (RIGHT-HAND) 		$12.11 2
