Lh Cylinder Head And Cover of Lamborghini Lamborghini Murcielago LP670

View All

Lamborghini Murcielago LP670 - Lh Cylinder Head And Cover

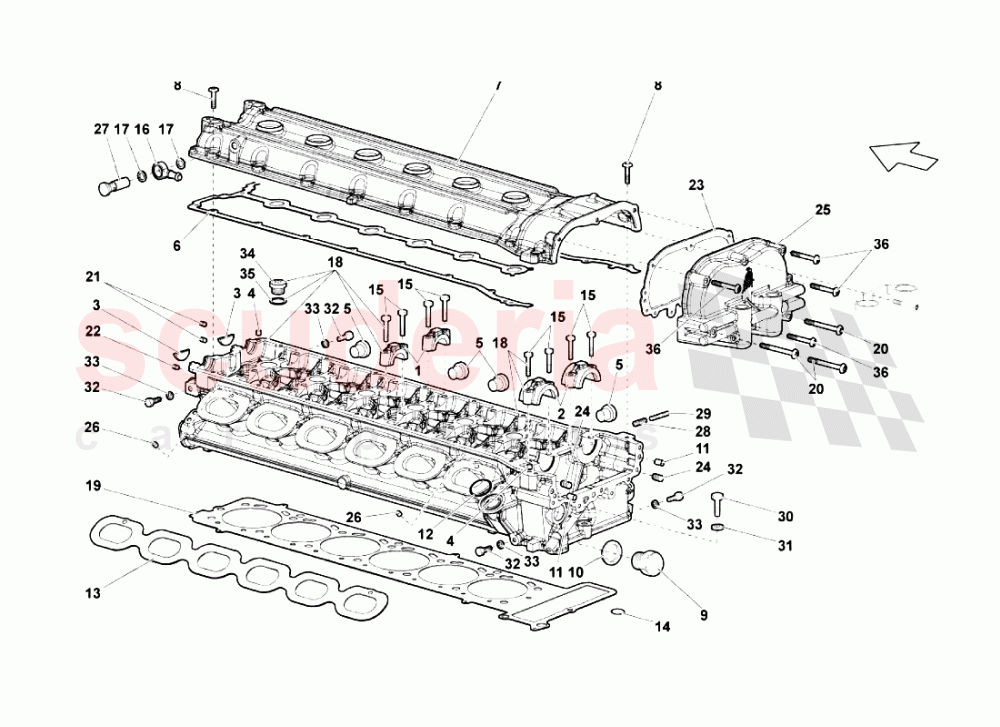

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M103127A	SUPPORT	7M103127A SUPPORT	$101.52	12
002	7M103285B	SUPPORT	7M103285B SUPPORT	$108.52	2
003	7M103113	COVER IN STOCK	7M103113 COVER IN STOCK	$106.93	2
004	N10703201	DOWEL	N10703201 DOWEL	$2.07 MSRP: ~~7.03~~ (70.6% off)	2
005	N1190311	PLUG	N1190311 PLUG	-	4	Enquire
006	7M103483C	GASKET IN STOCK	7M103483C GASKET IN STOCK	$277.29	1
007	7M103475D	COVER	7M103475D COVER	$1,423.64	1
008	N91071702	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071702 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.44 MSRP: ~~7.21~~ (80% off)	17
009	7M103035	PLUG	7M103035 PLUG	$59.07	1
010	WHT003049	WASHER	WHT003049 WASHER	$5.44	1
011	7M109221A	BUSHING	7M109221A BUSHING	$30.71	2
012	WHT003062	SEAL RING	WHT003062 SEAL RING	$6.18	1
013	7M129717B	GASKET IN STOCK	7M129717B GASKET IN STOCK	$134.76	1
014	WHT003522	SEAL RING	WHT003522 SEAL RING	$5.12	1
015	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW IN STOCK	$2.50	28
016	7M103606A	PIPE FITTING	7M103606A PIPE FITTING	$166.69	1
017	WHT003272	WASHER 10.50X15.50X1.5 IN STOCK	WHT003272 WASHER 10.50X15.50X1.5 IN STOCK	$0.65	2
018	460537004	LH CYLINDER HEAD	460537004 LH CYLINDER HEAD	$13,109.98	1
019	7M103149B	LH GASKET	7M103149B LH GASKET	$10,908.39	1
020	N10562603	ROUND HD. SCREW	N10562603 ROUND HD. SCREW	$2.00 MSRP: ~~7.13~~ (71.9% off)	3
021	7M103545	PLUG	7M103545 PLUG	$2.50	2
022	7M103545	PLUG	7M103545 PLUG	$2.50	1
023	7M109091	GASKET	7M109091 GASKET	$101.39	1
024	7M103545	PLUG	7M103545 PLUG	$2.50	2
025	7M109144F	LHHEAD PHASE TRANSFORMER ASSEMBLY	7M109144F LHHEAD PHASE TRANSFORMER ASSEMBLY	$761.61	1
026	7M133615	PIN	7M133615 PIN	$8.17	2
027	WHT001669	SCREW	WHT001669 SCREW	$52.14	1
028	8840802	HELI-COIL	8840802 HELI-COIL	$3.01 MSRP: ~~3.25~~ (7.4% off)	12
029	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$20.72	12
030	N1033520	SCREW M8X35	N1033520 SCREW M8X35	-	2	Enquire
031	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.10	2
032	N102358	SCREW M8X10	N102358 SCREW M8X10	-	3	Enquire
033	N138302	WASHER	N138302 WASHER	-	3	Enquire
034	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	$13.06	7
035	N138481	WASHER	N138481 WASHER	-	7	Enquire
036	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD IN STOCK	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD IN STOCK	$1.88 MSRP: ~~7.22~~ (74% off)	4
