REAR SUSPENSION of Lamborghini Lamborghini Murcielago

View All

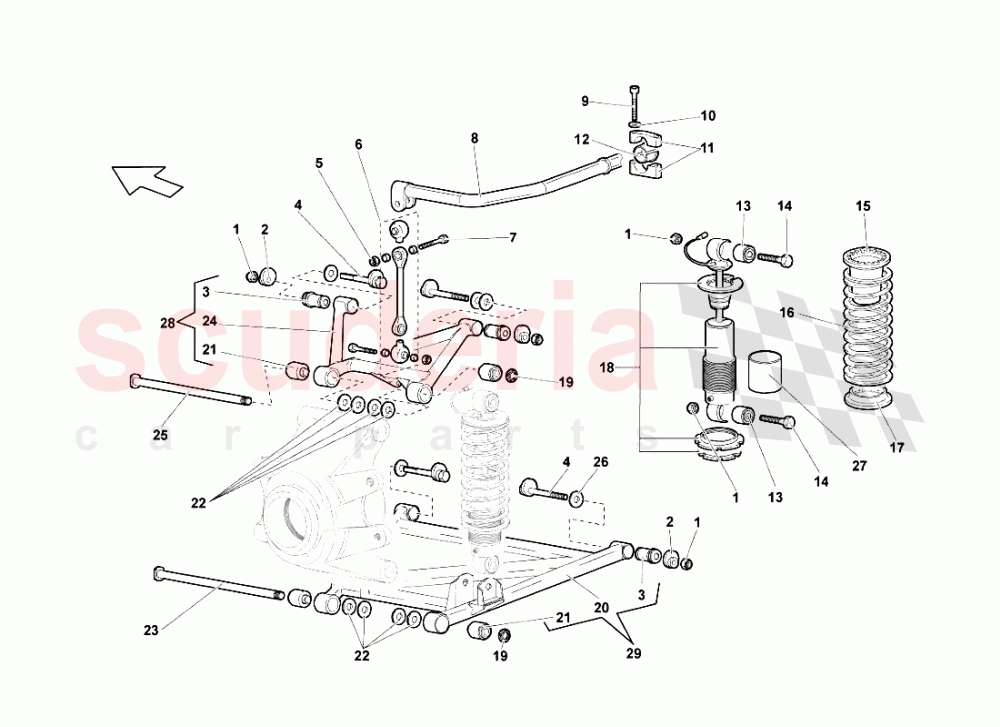

Lamborghini Murcielago - REAR SUSPENSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	$1.04 MSRP: ~~7.22~~ (85.6% off)	8
002	410407127A	BOLT	410407127A BOLT	$2,182.45	8
004	410407127A	BOLT	410407127A BOLT	$2,182.45	8
005	8200804	NUT M8 IN STOCK	8200804 NUT M8 IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
006	410411317	CONNECTING ROD	410411317 CONNECTING ROD	$413.92	2
007	N01034518	SCREW M8X45 IN STOCK	N01034518 SCREW M8X45 IN STOCK	$24.27	4
008	410511409	STABILIZER BAR	410511409 STABILIZER BAR	$1,273.11	1
009	WHT000923	SCREW M6X52	WHT000923 SCREW M6X52	$7.41	4
010	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
011	400411031D	U-BOLT IN STOCK	400411031D U-BOLT IN STOCK	$186.88	2
012	400511324C	BUSH IN STOCK	400511324C BUSH IN STOCK	$170.38	2
013	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$553.14	8
014	8101281	SCREW M12X70	8101281 SCREW M12X70	$16.50	8
015	410512108	PANEL	410512108 PANEL	$42.03	4
016	5133618	SPRING	5133618 SPRING	$185.87 MSRP: ~~206.50~~ (10% off)	4
017	410512385	RUBBER RING	410512385 RUBBER RING	$49.87	4
018	410512031B	REAR ELECTRONICALLY-CONTROLLED SHOCK ABSORBER (FROM VIN 1547)	410512031B REAR ELECTRONICALLY-CONTROLLED SHOCK ABSORBER (FROM VIN 1547)	$2,298.74	4
019	N10268603	NUT M14X1,5	N10268603 NUT M14X1,5	$6.41	4
022	400407742	2.0 MM SHIM IN STOCK	400407742 2.0 MM SHIM IN STOCK	$4.40	24
022	400407740	1.5 MM SHIM IN STOCK	400407740 1.5 MM SHIM IN STOCK	$3.83	24
022	400407749	0.5 MM SHIM IN STOCK	400407749 0.5 MM SHIM IN STOCK	$3.02	24
022	400407739	1.0 MM SHIM IN STOCK	400407739 1.0 MM SHIM IN STOCK	$3.40	24
023	410505110	JOURNAL	410505110 JOURNAL	$219.55	2
025	410505109	JOURNAL	410505109 JOURNAL	$219.55	2
026	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	$6.41	1
026	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	$6.27	1
026	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.27	1
026	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	$6.91	1
026	410407295D	WASHER	410407295D WASHER	$27.74	1
027	52010342	PROTECTION	52010342 PROTECTION	$15.02 MSRP: ~~16.75~~ (10.3% off)	1
028	410505323A	LH UPPER ARM (CERAMIC BRAKE)	410505323A LH UPPER ARM (CERAMIC BRAKE)	$3,762.86	1
028	410505323	LH UPPER ARM	410505323 LH UPPER ARM	$3,624.89	1
028	410505324A	RH UPPER ARM (CERAMIC BRAKE)	410505324A RH UPPER ARM (CERAMIC BRAKE)	$3,537.83	1
028	410505324	RH UPPER ARM	410505324 RH UPPER ARM	$3,624.89	1
029	410505312	RH LOWER ARM	410505312 RH LOWER ARM	$3,462.57	1
029	410505311	LH LOWER ARM	410505311 LH LOWER ARM	$3,462.57	1
