FRONT SUSPENSION of Lamborghini Lamborghini Murcielago

View All

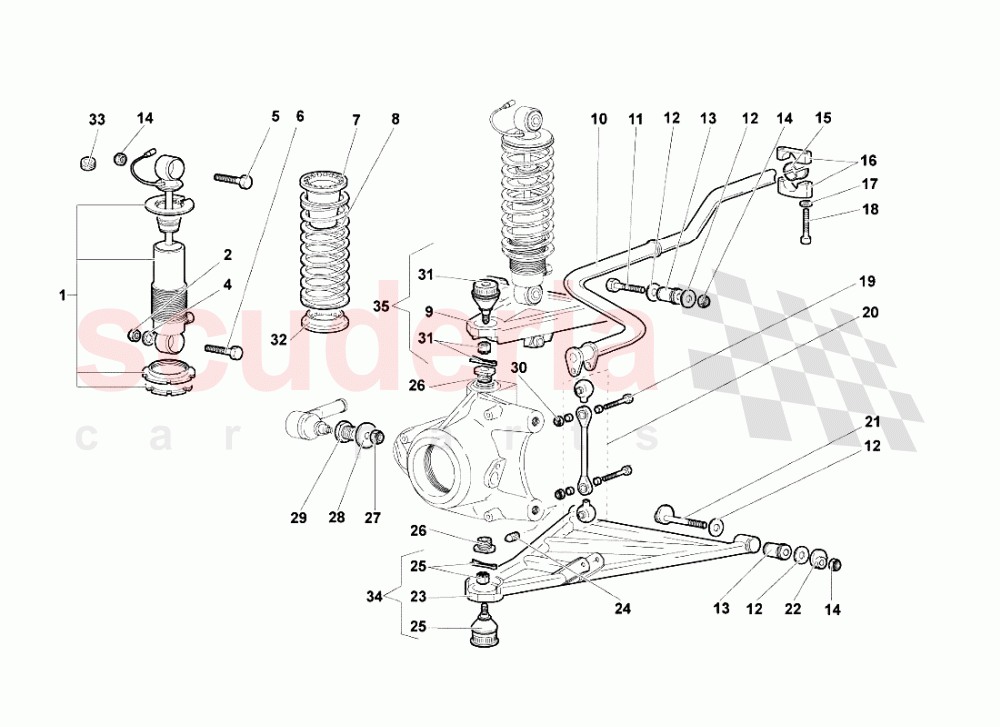

Lamborghini Murcielago - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	51010975	SHOCK ABSORBER	51010975 SHOCK ABSORBER	$7,555.44	2
001	410412031B	SHOCK ABSORBER (FROM VIN 1547)	410412031B SHOCK ABSORBER (FROM VIN 1547)	$4,523.81	2
002	N90323704	NUT	N90323704 NUT	$2.64	2
005	8101269	SCREW	8101269 SCREW	$4.87	2
006	N10592401	SCREW	N10592401 SCREW	$4.95	2
007	410512108	PANEL	410512108 PANEL	$41.94	2
008	51015536	SPRING	51015536 SPRING	$119.54	2
010	410411309	STABILIZER BAR	410411309 STABILIZER BAR	$1,270.33	1
011	8101269	SCREW	8101269 SCREW	$4.87	4
012	410407295D	WASHER	410407295D WASHER	$27.67	4
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM	$6.89	4
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM	$4.26	4
012	410407295A	1.5 MM ADJUSTMENT SHIM	410407295A 1.5 MM ADJUSTMENT SHIM	$6.39	4
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	$6.25	4
014	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	$1.04 MSRP: ~~7.22~~ (85.6% off)	2
014	N10725301	NUT 12X1,25X14,8	N10725301 NUT 12X1,25X14,8	$1.04 MSRP: ~~7.22~~ (85.6% off)	4
015	400511324C	BUSH IN STOCK	400511324C BUSH IN STOCK	$170.01	2
016	400411031D	U-BOLT IN STOCK	400411031D U-BOLT IN STOCK	$186.47	2
017	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	4
018	WHT000923	SCREW M6X52	WHT000923 SCREW M6X52	$7.39	4
020	410411317	CONNECTING ROD	410411317 CONNECTING ROD	$413.02	2
021	410407127A	BOLT	410407127A BOLT	$2,177.67	4
022	410407127A	BOLT	410407127A BOLT	$2,177.67	4
024	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10	$0.90 MSRP: ~~7.24~~ (87.6% off)	2
026	410407171C	BUSH	410407171C BUSH	$1,376.68	2
027	WHT000915	NUT	WHT000915 NUT	$18.28	2
028	WHT000919	WASHER	WHT000919 WASHER	$14.09	2
029	410419121B	BUSH	410419121B BUSH	$232.79	1
030	8200804	NUT M8 IN STOCK	8200804 NUT M8 IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
032	410512385	RUBBER RING	410512385 RUBBER RING	$49.76	2
033	61005393	FAIRLEAD	61005393 FAIRLEAD	$4.11 MSRP: ~~4.65~~ (11.6% off)	2
034	410407151	LH LOWER ARM	410407151 LH LOWER ARM	$4,549.33	1
034	410407152	RH LOWER ARM	410407152 RH LOWER ARM	$4,549.33	1
035	410407505	LH UPPER ARM	410407505 LH UPPER ARM	$2,422.26	1
035	410407506A	RH UPPER ARM (CERAMIC BRAKE)	410407506A RH UPPER ARM (CERAMIC BRAKE)	$2,685.11	1
035	410407505A	LH UPPER ARM (CERAMIC BRAKE)	410407505A LH UPPER ARM (CERAMIC BRAKE)	$2,684.53	1
035	410407506	RH UPPER ARM	410407506 RH UPPER ARM	$2,422.26	1
