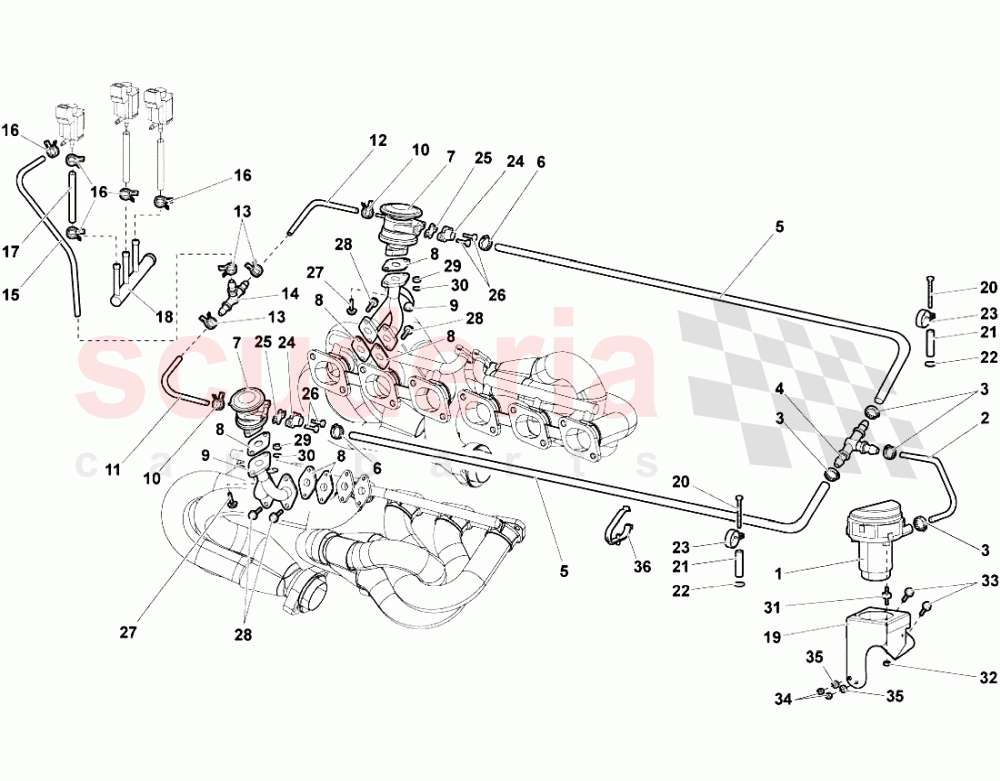

Lamborghini Murcielago - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	78906601F	PUMP	78906601F PUMP	$663.10	1
002	7M131371B	PIPE	7M131371B PIPE	$500.67	1
003	N10255601	CLAMP	N10255601 CLAMP	$1.93 MSRP: ~~7.10~~ (72.8% off)	4
004	7M131598	CONNECTOR	7M131598 CONNECTOR	$1,187.33	1
005	7M131385	PIPE	7M131385 PIPE	$1,598.10	2
006	N10255601	CLAMP	N10255601 CLAMP	$1.93 MSRP: ~~7.10~~ (72.8% off)	2
007	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	$163.60	2
008	7L131354	GASKET	7L131354 GASKET	$21.62	6
009	7M131381	CONNECTOR	7M131381 CONNECTOR	$652.97	2
010	8830122	CLAMP	8830122 CLAMP	$0.32 MSRP: ~~7.33~~ (95.6% off)	2
011	7M131375	PIPE	7M131375 PIPE	$106.25	1
012	7M131377	PIPE	7M131377 PIPE	$94.89	1
013	8830122	CLAMP	8830122 CLAMP	$0.32 MSRP: ~~7.33~~ (95.6% off)	1
014	7L133579	T-PIECE	7L133579 T-PIECE	$7.44	1
015	7M131493	PIPE	7M131493 PIPE	$30.45	1
016	8830122	CLAMP	8830122 CLAMP	$0.32 MSRP: ~~7.33~~ (95.6% off)	1
017	7M131492	PIPE	7M131492 PIPE	$37.96	1
018	7M131585A	CONNECTOR	7M131585A CONNECTOR	$1,741.69	1
019	418131035	BRACKET	418131035 BRACKET	$199.15	1
020	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT IN STOCK	$1.68	2
021	400972895	SPACER	400972895 SPACER	$152.95	2
022	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	2
023	8832005	CLAMP	8832005 CLAMP	$9.37	2
024	7L131585	PIPE FITTING	7L131585 PIPE FITTING	$94.27	2
025	7L131358	GASKET	7L131358 GASKET	$44.95	2
026	N10338901	SCREW	N10338901 SCREW	$0.72 MSRP: ~~7.27~~ (90.1% off)	4
027	N10338901	SCREW	N10338901 SCREW	$0.72 MSRP: ~~7.27~~ (90.1% off)	4
028	N10338901	SCREW	N10338901 SCREW	$0.72 MSRP: ~~7.27~~ (90.1% off)	8
029	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.07	2
030	N01152427	WASHER IN STOCK	N01152427 WASHER IN STOCK	$0.28	2
031	400972081A	FLEXIBLE SUPPORT	400972081A FLEXIBLE SUPPORT	$12.06	3
032	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	3
033	N10536103	SCREW M8X16 IN STOCK	N10536103 SCREW M8X16 IN STOCK	$1.75 MSRP: ~~7.27~~ (75.9% off)	2
034	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
035	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	2
036	8834502	CLAMP	8834502 CLAMP	$1.37 MSRP: ~~7.15~~ (80.8% off)	1
