INTAKE MANIFOLD of Lamborghini Lamborghini Murcielago

View All

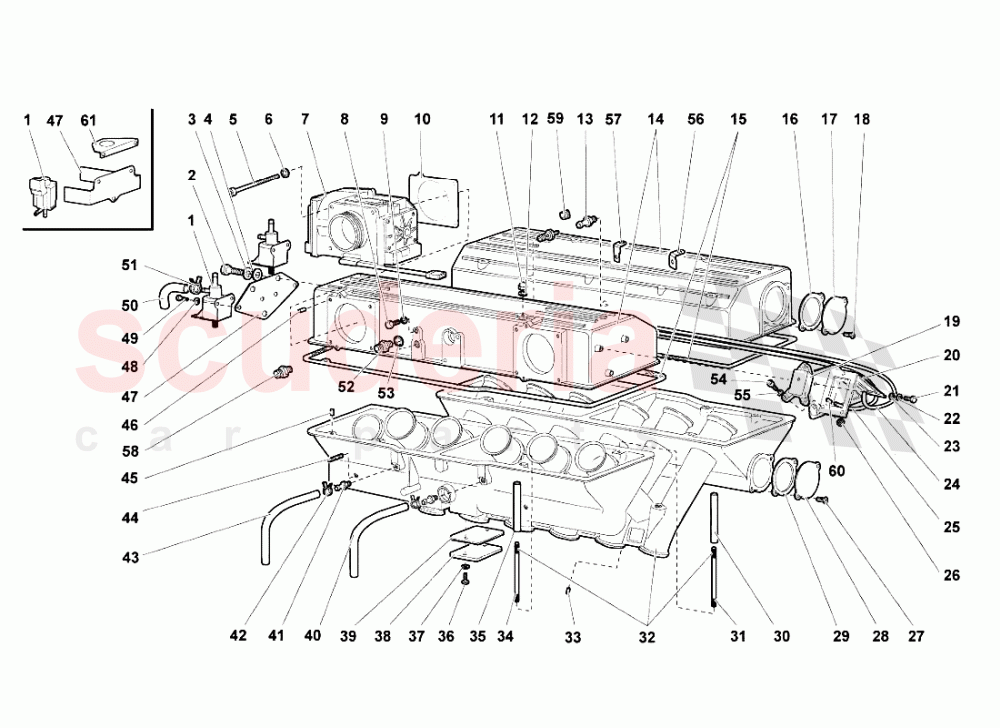

Lamborghini Murcielago - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	77906283	SOLENOID VALVE IN STOCK	77906283 SOLENOID VALVE IN STOCK	$53.18	2
002	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	3
003	8410502	WASHER	8410502 WASHER	$0.07 MSRP: ~~7.38~~ (99.1% off)	3
004	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	3
005	N10686901	HEXALOBULAR SOCKET	N10686901 HEXALOBULAR SOCKET	$386.16	16
006	WHT001197A	WASHER IN STOCK	WHT001197A WASHER IN STOCK	$0.28	16
007	7L133063A	MOTOR-DRIVEN THROTTLE BODY	7L133063A MOTOR-DRIVEN THROTTLE BODY	$2,574.31	4
008	8100839	SCREW	8100839 SCREW	$0.43 MSRP: ~~7.31~~ (94.1% off)	1
009	8400802	WASHER	8400802 WASHER	$1.40 MSRP: ~~7.27~~ (80.7% off)	1
010	7M133074	GASKET	7M133074 GASKET	$61.54	4
011	8200816	NUT	8200816 NUT	$4.78	8
012	WHT001514	WASHER IN STOCK	WHT001514 WASHER IN STOCK	$23.19 MSRP: ~~64.00~~ (63.8% off)	8
013	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	$266.81	2
014	7M133433A	COVER	7M133433A COVER	$1,911.56	2
015	7M129717A	GASKET	7M129717A GASKET	$138.07	2
016	7M133155	GASKET IN STOCK	7M133155 GASKET IN STOCK	$102.57	2
017	7M133684	FLANGE	7M133684 FLANGE	$68.35	2
018	WHT003091	SCREW IN STOCK	WHT003091 SCREW IN STOCK	$0.83 MSRP: ~~7.29~~ (88.6% off)	4
019	7M919529A	PRESSURE SENSOR	7M919529A PRESSURE SENSOR	$413.55	2
020	7M919327	SUPPORT	7M919327 SUPPORT	$60.03	1
021	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 IN STOCK	$1.24 MSRP: ~~7.31~~ (83% off)	3
022	WHT001187	WASHER IN STOCK	WHT001187 WASHER IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	3
023	WHT000769A	WASHER IN STOCK	WHT000769A WASHER IN STOCK	$0.83 MSRP: ~~7.26~~ (88.6% off)	3
024	7M133644	PIPE	7M133644 PIPE	$118.08	1
025	7M133643	PIPE	7M133643 PIPE	$174.91	1
026	62001396	RUBBER BUSHING	62001396 RUBBER BUSHING	$1.91 MSRP: ~~2.10~~ (9% off)	6
027	8700536	SCREW	8700536 SCREW	$0.83 MSRP: ~~7.32~~ (88.7% off)	4
028	7M133211	FLANGE	7M133211 FLANGE	$61.59	2
029	7M133026	GASKET	7M133026 GASKET	$65.60	2
030	7M129734	SPACER	7M129734 SPACER	$31.80	4
031	8300832	STUD BOLT	8300832 STUD BOLT	$11.51	4
032	490147001	FUEL MANIFOLD	490147001 FUEL MANIFOLD	$6,629.40	1
033	1122089	DOWEL	1122089 DOWEL	$15.62 MSRP: ~~17.60~~ (11.3% off)	4
034	8300896	STUD BOLT	8300896 STUD BOLT	$25.25	4
035	7M129734A	SPACER	7M129734A SPACER	$31.80	4
036	8700408	SCREW M4X10	8700408 SCREW M4X10	$0.26 MSRP: ~~7.36~~ (96.5% off)	8
037	8410405	WASHER	8410405 WASHER	$0.06 MSRP: ~~7.39~~ (99.2% off)	8
038	7M133100	COVER	7M133100 COVER	$59.87	4
039	7M133075	GASKET	7M133075 GASKET	$35.49	4
040	7M131611A	LH PIPE	7M131611A LH PIPE	$115.33	1
040	7M131612A	RH PIPE	7M131612A RH PIPE	$115.33	1
041	7L115707	CONNECTOR	7L115707 CONNECTOR	$60.90	1
042	8830128	CLAMP	8830128 CLAMP	$0.43	6
043	7M131849	RH PIPE	7M131849 RH PIPE	$115.33	1
043	7M131850	LH PIPE	7M131850 LH PIPE	$115.33	1
044	8300645	STUD BOLT	8300645 STUD BOLT	$10.68	4
045	7M133615	PIN	7M133615 PIN	$8.18	12
046	8840601	HELI-COIL	8840601 HELI-COIL	$2.38 MSRP: ~~2.55~~ (6.7% off)	16
047	7M906287	BRACKET	7M906287 BRACKET	$47.23	1
048	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	4
049	8100401	SCREW	8100401 SCREW	$0.44 MSRP: ~~7.30~~ (94% off)	4
050	7M131847	PIPE	7M131847 PIPE	$115.33	1
050	7M131846	PIPE	7M131846 PIPE	$115.33	1
051	8831528	CLAMP	8831528 CLAMP	$8.76	2
052	7M133119	CONNECTOR	7M133119 CONNECTOR	$64.84	2
053	N0138481	WASHER IN STOCK	N0138481 WASHER IN STOCK	$0.65 MSRP: ~~7.28~~ (91.1% off)	2
054	8700351	SCREW	8700351 SCREW	$0.23 MSRP: ~~7.35~~ (96.9% off)	6
055	8400304	WASHER	8400304 WASHER	$0.15 MSRP: ~~7.37~~ (98% off)	6
056	410905131	SECURING PLATE	410905131 SECURING PLATE	$26.07	2
057	410911085	BRACKET	410911085 BRACKET	$15.11	2
058	7M115113	CONNECTOR	7M115113 CONNECTOR	$77.48	1
059	7M103545	PLUG	7M103545 PLUG	$2.50	1
060	1329319	ADAPTER	1329319 ADAPTER	$1.09 MSRP: ~~7.18~~ (84.8% off)	4
061	86323131	BRACKET	86323131 BRACKET	$43.61	1
