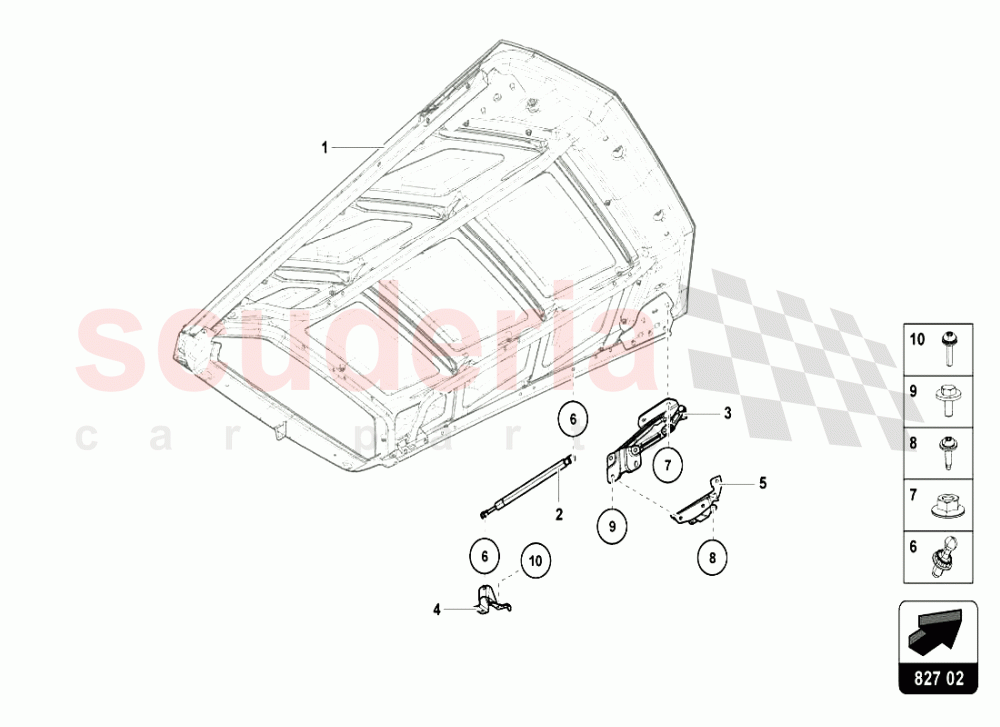

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	4T0827552D	GAS STRUT BONNET	4T0827552D GAS STRUT BONNET	$77.40	2
003	4T0827302B	HINGE	4T0827302B HINGE	$220.23	1
003	4T0827301B	HINGE	4T0827301B HINGE	$220.23	1
004	4T0809506B	RH BRACKET	4T0809506B RH BRACKET	$83.70	1
004	4T0809505B	LH BRACKET	4T0809505B LH BRACKET	$83.70	1
005	4T8810807D	LH BRACKET	4T8810807D LH BRACKET	$126.73	1
005	4T8810808D	RH BRACKET	4T8810808D RH BRACKET	$696.35	1
006	6X0827439C	JOURNAL	6X0827439C JOURNAL	$8.41	4
007	N90643905	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90643905 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.76 MSRP: ~~7.13~~ (61.3% off)	4
008	N90969901	HEX SOCKET HEAD LOCATING BOLT IN STOCK	N90969901 HEX SOCKET HEAD LOCATING BOLT IN STOCK	$1.44 MSRP: ~~7.27~~ (80.2% off)	8
009	N90643905	HEXAGON HEAD BOLT (COMBI) IN STOCK	N90643905 HEXAGON HEAD BOLT (COMBI) IN STOCK	$2.76 MSRP: ~~7.13~~ (61.3% off)	4
010	N91048802	SCREW WITH INT. SERRATIONS IN STOCK	N91048802 SCREW WITH INT. SERRATIONS IN STOCK	$32.20	6
