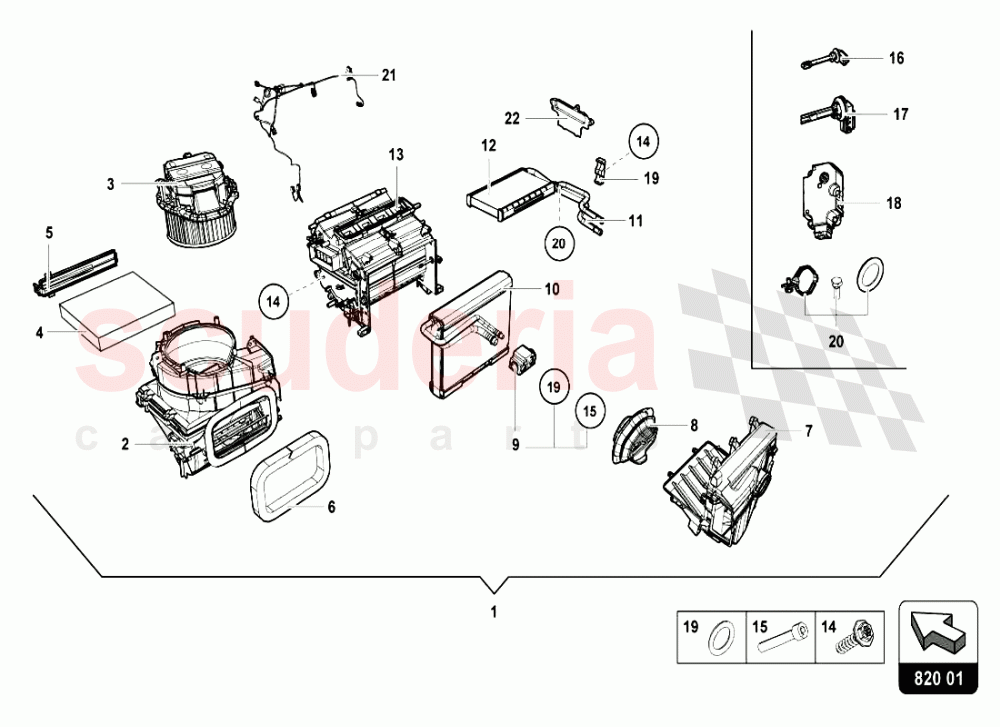

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4S1820005A	ASSY HVAC UNIT	4S1820005A ASSY HVAC UNIT	$2,431.71	1
002	4S1820153	INTAKE DUCT	4S1820153 INTAKE DUCT	$132.58	1
003	4S1820021	FAN MOTOR	4S1820021 FAN MOTOR	$812.85	1
004	4S0819439	FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING ARRIVING SOON	4S0819439 FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING ARRIVING SOON	$83.70	1
005	4S0819422	COVER	4S0819422 COVER	$13.45	1
006	4S0819229	SEAL	4S0819229 SEAL	$31.77	1
007	4S1820024	EVAPORATOR HOUSING	4S1820024 EVAPORATOR HOUSING	$108.80	1
008	4S0820061	SEAL	4S0820061 SEAL	$33.29	1
009	4S0820679	EXPANSION VALVE	4S0820679 EXPANSION VALVE	$211.34	1
010	4S0820102	EVAPORATOR	4S0820102 EVAPORATOR	$662.65	1
011	4S1898037	1 SET: PIPES FOR HEAT EXCHANGER	4S1898037 1 SET: PIPES FOR HEAT EXCHANGER	$76.52	1
012	4S0819031	HEAT EXCHANGER	4S0819031 HEAT EXCHANGER	$327.63	1
013	4S0820356	AIR DISTRIBUTION HOUSING	4S0820356 AIR DISTRIBUTION HOUSING	$316.38	1
014	4S0898919	REPAIR SET	4S0898919 REPAIR SET	$2.89	63
016	4S0907543	TEMPERATURE SENSOR	4S0907543 TEMPERATURE SENSOR	$35.00	1
017	4S0907543A	TEMPERATURE SENSOR	4S0907543A TEMPERATURE SENSOR	$35.00	1
018	4H0820511E	SERVOMOTOR	4H0820511E SERVOMOTOR	$99.90	6
020	4S0898102	REPAIR SET	4S0898102 REPAIR SET	$19.34	1
021	4S1971566	WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	4S1971566 WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING	$119.31	1
022	4S0819422A	COVER	4S0819422A COVER	$13.45	1
