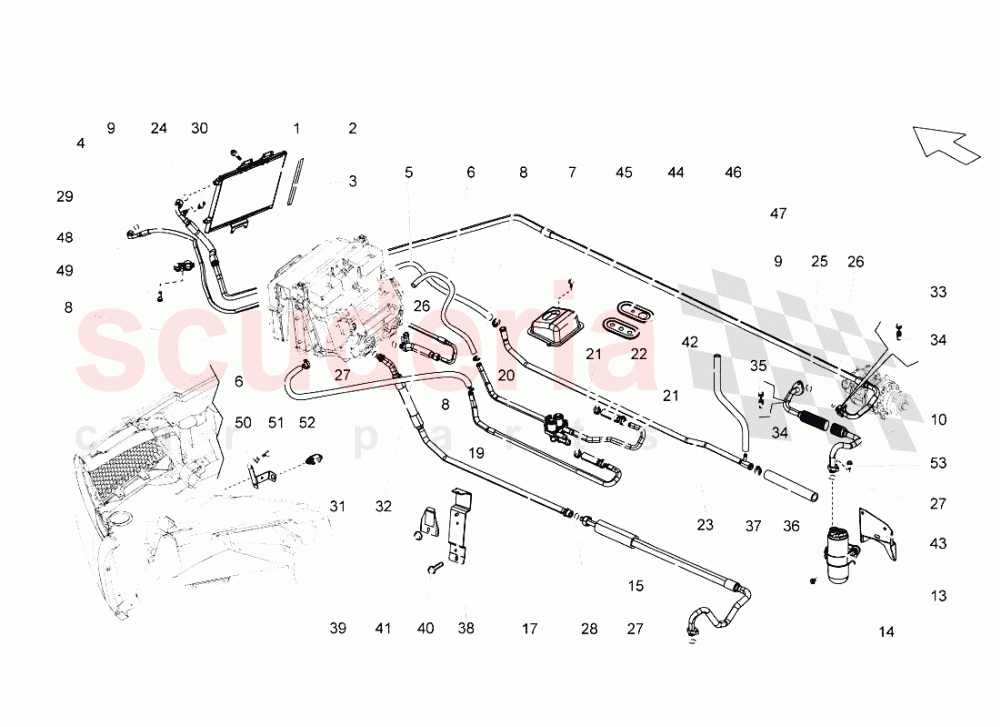

Lamborghini Gallardo Spyder - Air Conditioning System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10082911	SCREW M6X16 IN STOCK	N10082911 SCREW M6X16 IN STOCK	$0.76	6

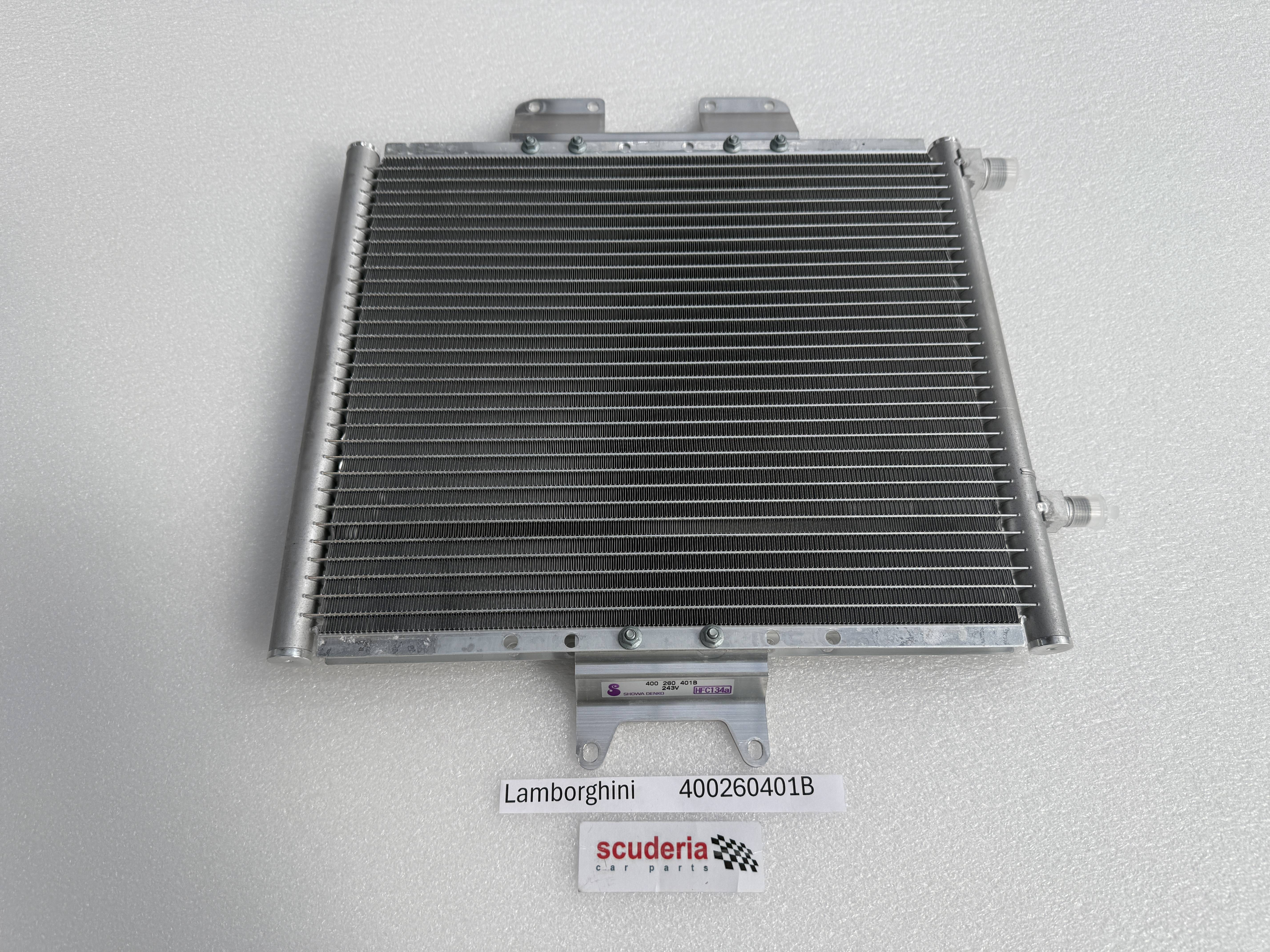

002	400260401B	A/C CONDENSER IN STOCK	400260401B A/C CONDENSER IN STOCK	$634.61	1
003	400820261	GASKET	400820261 GASKET	$143.58	2
004	400260709	PIPE	400260709 PIPE	$990.57	1
005	400819371	SLEEVE	400819371 SLEEVE	$134.81	1
006	400819370	SLEEVE	400819370 SLEEVE	$15.74	2
007	N10166201	CLAMP	N10166201 CLAMP	$1.18	2
008	N10255601	CLAMP	N10255601 CLAMP	$1.94 MSRP: ~~7.10~~ (72.7% off)	4
009	400260701B	PIPE	400260701B PIPE	$746.23	1
010	400260741A	PIPE	400260741A PIPE	$715.98	1
013	400820194	ACCUMULATOR	400820194 ACCUMULATOR	$186.21	1
014	N0903411	SCREW (M6X62.00)	N0903411 SCREW (M6X62.00)	$2.95	3
015	400260740B	PIPE	400260740B PIPE	$210.03	1
017	400260740	PIPE	400260740 PIPE	$331.03	1
019	400819270	LH PIPE	400819270 LH PIPE	$56.23	1
020	400819269	RH PIPE	400819269 RH PIPE	$54.61	1
021	N0245107	CLAMP	N0245107 CLAMP	$4.84	4
022	400819372	SLEEVE	400819372 SLEEVE	$13.23	2
023	407820665	PIPE	407820665 PIPE	$91.04	1
024	8A0260749AJ	O-RING	8A0260749AJ O-RING	$5.09	1
025	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.28 MSRP: ~~7.09~~ (25.5% off)	1
026	4E0260749A	O-RING 11 X 2.5 IN STOCK	4E0260749A O-RING 11 X 2.5 IN STOCK	$6.42 MSRP: ~~7.06~~ (9.1% off)	2
027	8E0260749C	SEAL RING	8E0260749C SEAL RING	$5.28 MSRP: ~~7.09~~ (25.5% off)	3
028	8A0260749AH	O-RING IN STOCK	8A0260749AH O-RING IN STOCK	$0.43 MSRP: ~~7.33~~ (94.1% off)	1
029	8A0260749AK	O-RING IN STOCK	8A0260749AK O-RING IN STOCK	$1.94	1
030	3R0959126	PRESSURE SENSOR AIR CONDITIONING	3R0959126 PRESSURE SENSOR AIR CONDITIONING	$115.15	1
031	8Z0820535	EXTERNAL TEMPERATURE SENSOR	8Z0820535 EXTERNAL TEMPERATURE SENSOR	$37.07	1
033	400820853A	PLUG	400820853A PLUG	$9.03	1
034	400820855	VALVE	400820855 VALVE	$22.58	2
035	400820853	PLUG	400820853 PLUG	$9.03	1
036	400819268A	PIPE	400819268A PIPE	$38.76	1
037	N0245203	CLAMP	N0245203 CLAMP	$6.72	2
038	400121079A	BRACKET	400121079A BRACKET	$21.32	2
039	N90367502	NUT	N90367502 NUT	$0.72	4
040	N90533002	SCREW	N90533002 SCREW	$1.62 MSRP: ~~7.11~~ (77.2% off)	4
041	400121068	BRACKET	400121068 BRACKET	$20.25	2
043	400260759F	BRACKET	400260759F BRACKET	$426.33	1
044	400820955A	COVER	400820955A COVER	$72.49	1
045	WHT001190	ROUND HD. SCREW IN STOCK	WHT001190 ROUND HD. SCREW IN STOCK	$2.08	2
046	400820099A	GASKET	400820099A GASKET	$33.80	1
047	400819028A	GASKET	400819028A GASKET	$32.73	1
048	8E0260759AP	BRACKET FOR REFRIGERANT HOSE	8E0260759AP BRACKET FOR REFRIGERANT HOSE	$4.57	1
049	N10470703	ROUND HD. SCREW IN STOCK	N10470703 ROUND HD. SCREW IN STOCK	$2.19 MSRP: ~~7.13~~ (69.3% off)	1
050	400820536A	BRACKET	400820536A BRACKET	$11.35	1
051	N0454281	CLIP IN STOCK	N0454281 CLIP IN STOCK	$0.91 MSRP: ~~7.24~~ (87.4% off)	2
052	N10405502	SCREW	N10405502 SCREW	$0.58	2
053	N0903786	SCREW M8X25	N0903786 SCREW M8X25	$2.76 MSRP: ~~7.19~~ (61.6% off)	4
