View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N90903302	O-Ring IN STOCK	N90903302 O-Ring IN STOCK	$4.65	2
002	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.07 MSRP: ~~7.26~~ (71.5% off)	2
003	7L121011J	WATER PUMP	7L121011J WATER PUMP	$1,130.85	1
004	N90409501	CLAMP IN STOCK	N90409501 CLAMP IN STOCK	$1.10 MSRP: ~~7.22~~ (84.8% off)	1
005	7L121448A	PIPE	7L121448A PIPE	$892.45	1
006	400251189B	CLAMP IN STOCK	400251189B CLAMP IN STOCK	$10.03	1
007	407121400	PIPE	407121400 PIPE	$76.77	1
008	407819377A	PIPE	407819377A PIPE	$32.33	1
009	400611757	JOURNAL IN STOCK	400611757 JOURNAL IN STOCK	$1.93 MSRP: ~~7.04~~ (72.6% off)	1
010	400611799B	BRACKET	400611799B BRACKET	$0.62 MSRP: ~~7.29~~ (91.5% off)	1
011	7L121093A	PLATTE	7L121093A PLATTE	$147.30	1
012	N10335202	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10335202 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.15 MSRP: ~~7.29~~ (84.2% off)	1
013	400121092	PROTECTION	400121092 PROTECTION	$16.05	1

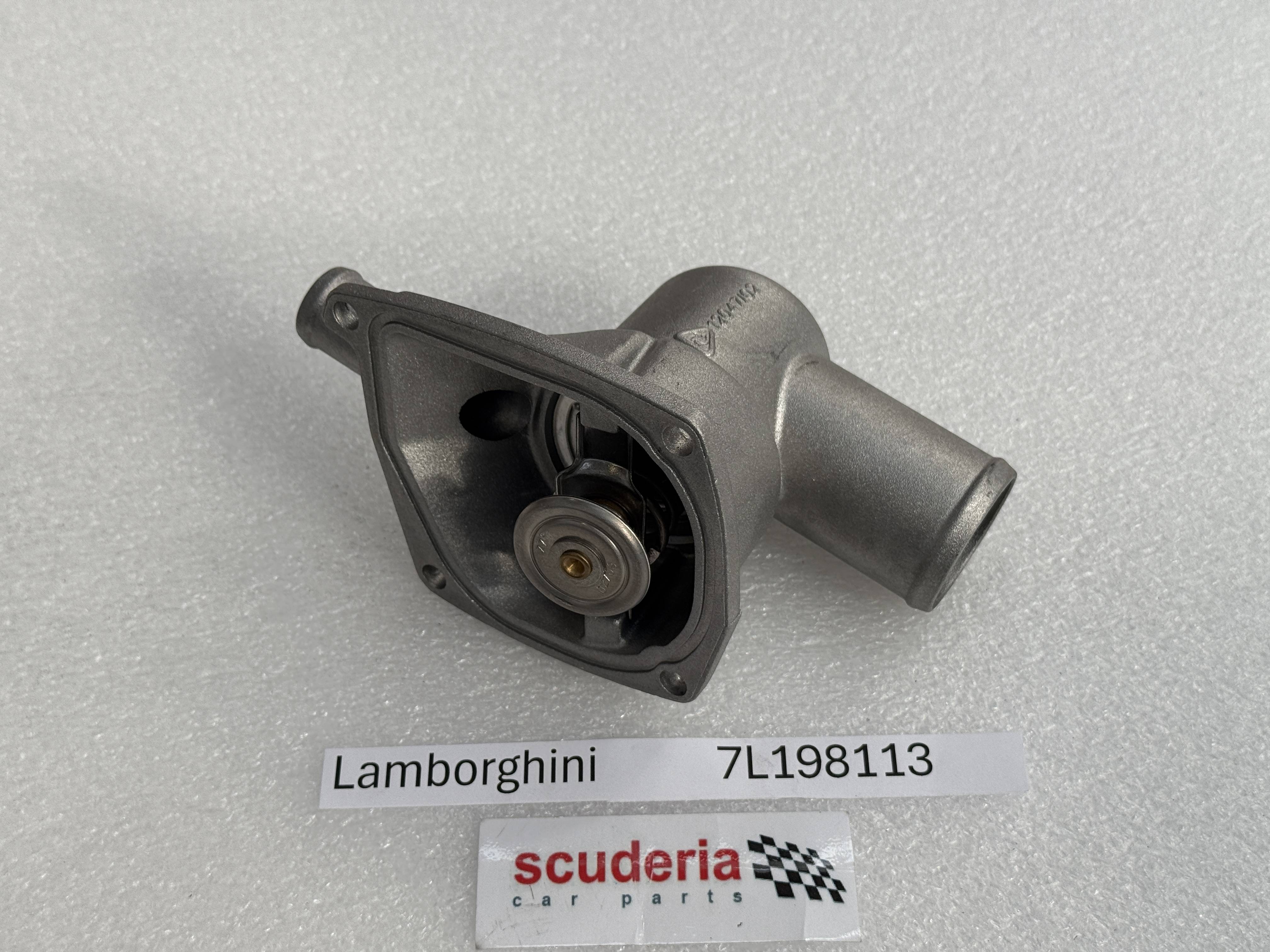

014	7L198113	WATER THERMOSTAT BODY IN STOCK	7L198113 WATER THERMOSTAT BODY IN STOCK	$375.19	1
015	WHT003459	GASKET COOLING SYSTEM IN STOCK	WHT003459 GASKET COOLING SYSTEM IN STOCK	$20.45	1
016	WHT003470	SCREW M8X18	WHT003470 SCREW M8X18	$1.61	4
