Rear Arms

Lamborghini Gallardo LP560 Spyder

Find Your Part

Lamborghini Gallardo LP560 Spyder - Rear Arms

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

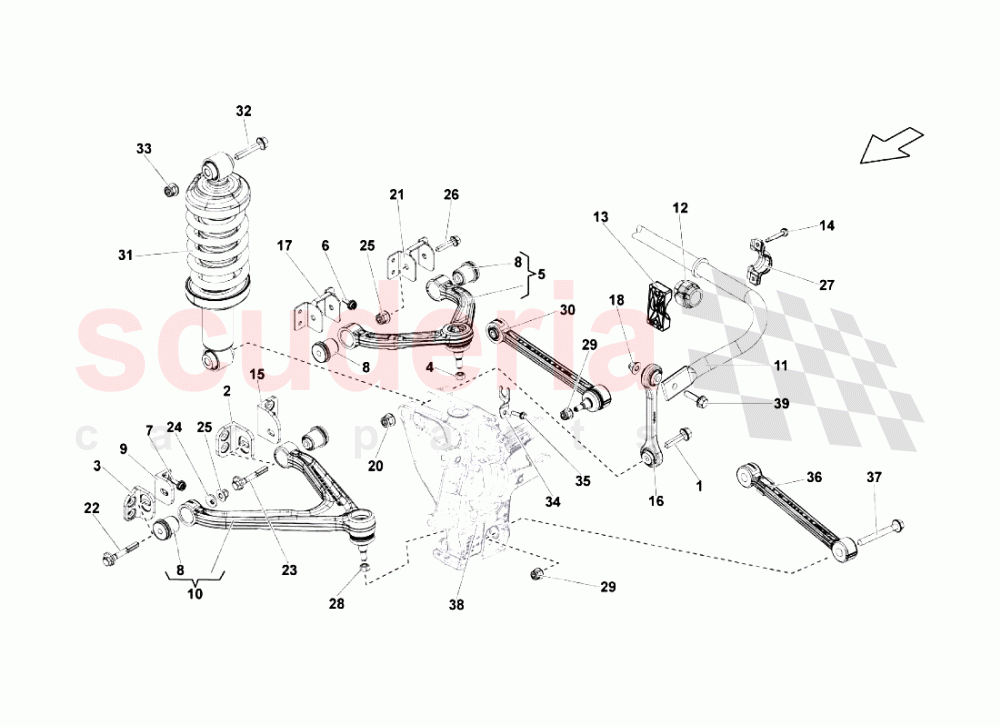

Rear Arms of Lamborghini Lamborghini Gallardo LP560 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 N10716901
HEX COLLARED BOLT
IN STOCK 		$13.89 2
002 400501430
RIGHT SUPPORT 		$50.84 1
002 400501429
LEFT SUPPORT 		$50.84 1
003 420501430E
RIGHT SUPPORT 		$54.91 1
003 420501429E
LEFT SUPPORT 		$114.28 1
004 N90848404
NUT M12X1.5 		$4.12 2
005 420505323
LH UPPER ARM 		$621.27 1
005 420505324
RH UPPER ARM 		$613.68 1
006 N10689301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.43 4
007 N10689301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.43 4
008 8E0505185P
BEARING
IN STOCK 		$34.58 8
009 420501429M
LEFT SUPPORT 		$181.97 1
009 420501430M
RIGHT SUPPORT 		$58.34 1
010 420505311
LH LOWER ARM
use : 0R1400558 		$569.30 1

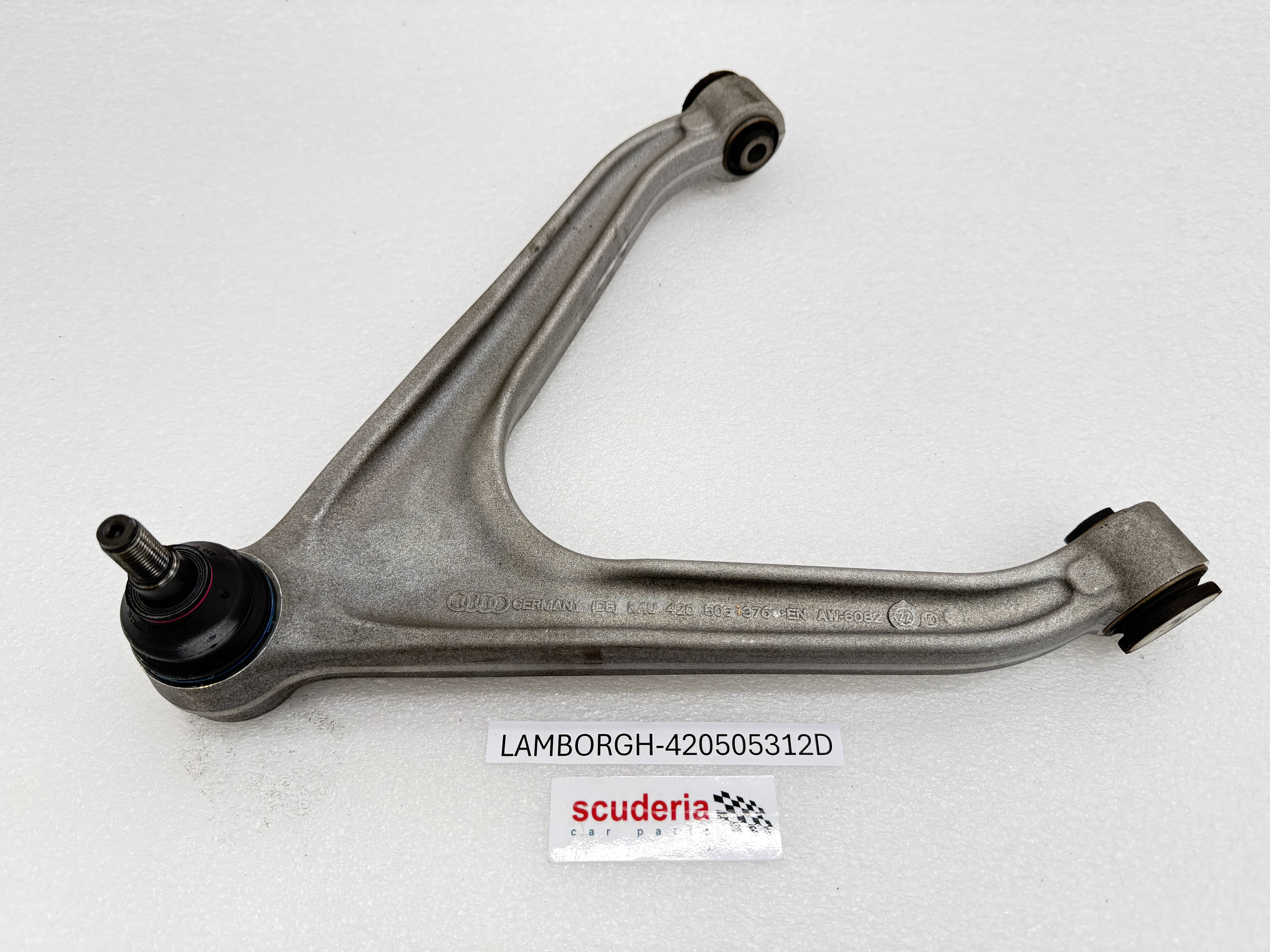

010 420505312D
RH LOWER ARM
IN STOCK 		$550.04 1
011 400511409H
REAR STABILIZER BAR 		$374.04 1
011 400511409F
REAR STABILIZER BAR (COMFORT - COMFORT/LIFTING SYSTEM) 		$346.16 1
012 420411327
BUSHING (COMFORT - COMFORT/LIFTING SYSTEM) 		$19.98 2
012 4D0411327G
BUSHING 		$13.32 2

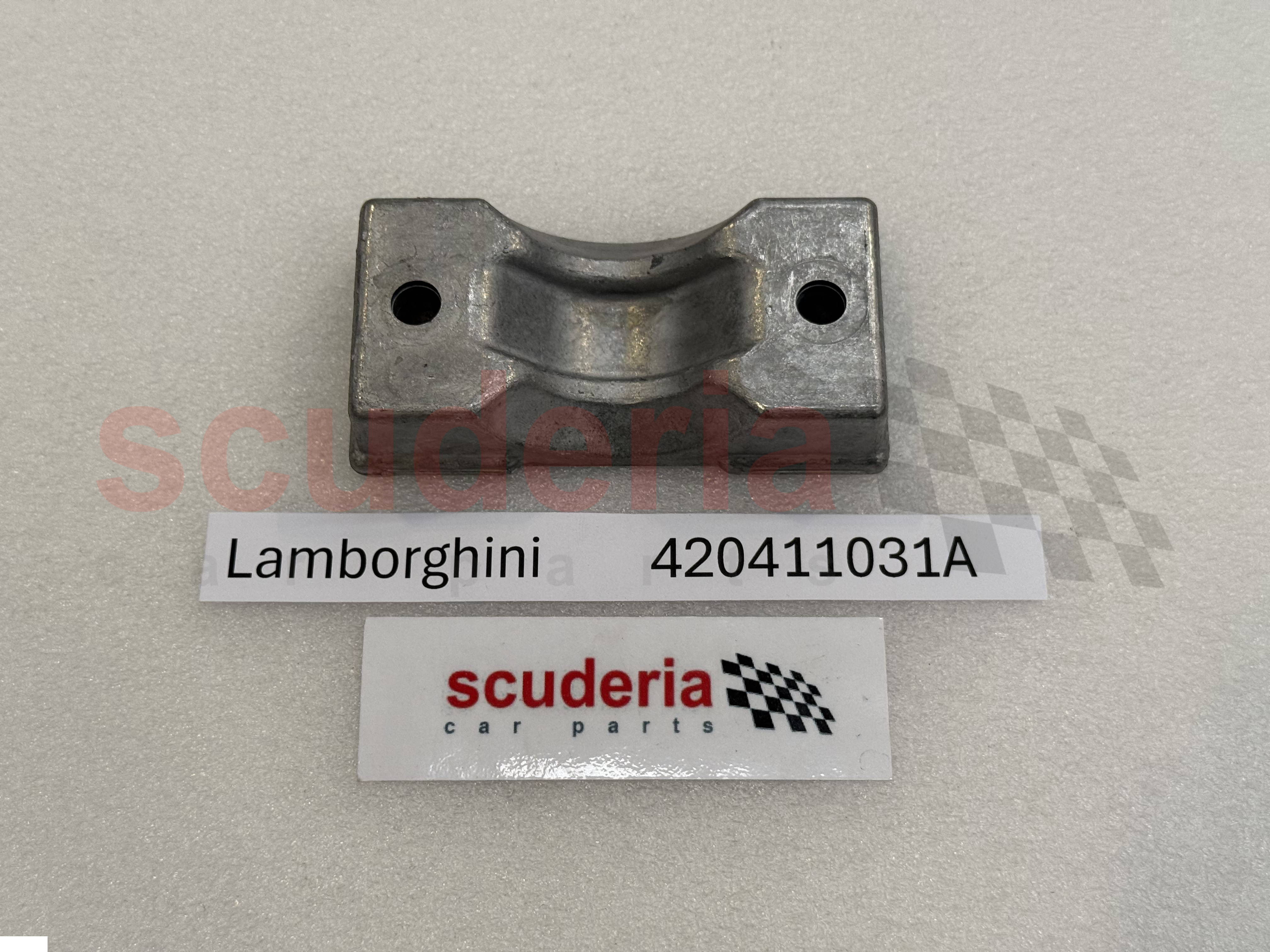

013 420411031A
ANTI-ROLL BAR BEARING BRACKET
IN STOCK 		$24.66 2
014 N10682501
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$3.83 (45.8% off) 4
015 400501430A
RIGHT SUPPORT 		$50.84 1
015 400501429A
LEFT SUPPORT 		$50.84 1

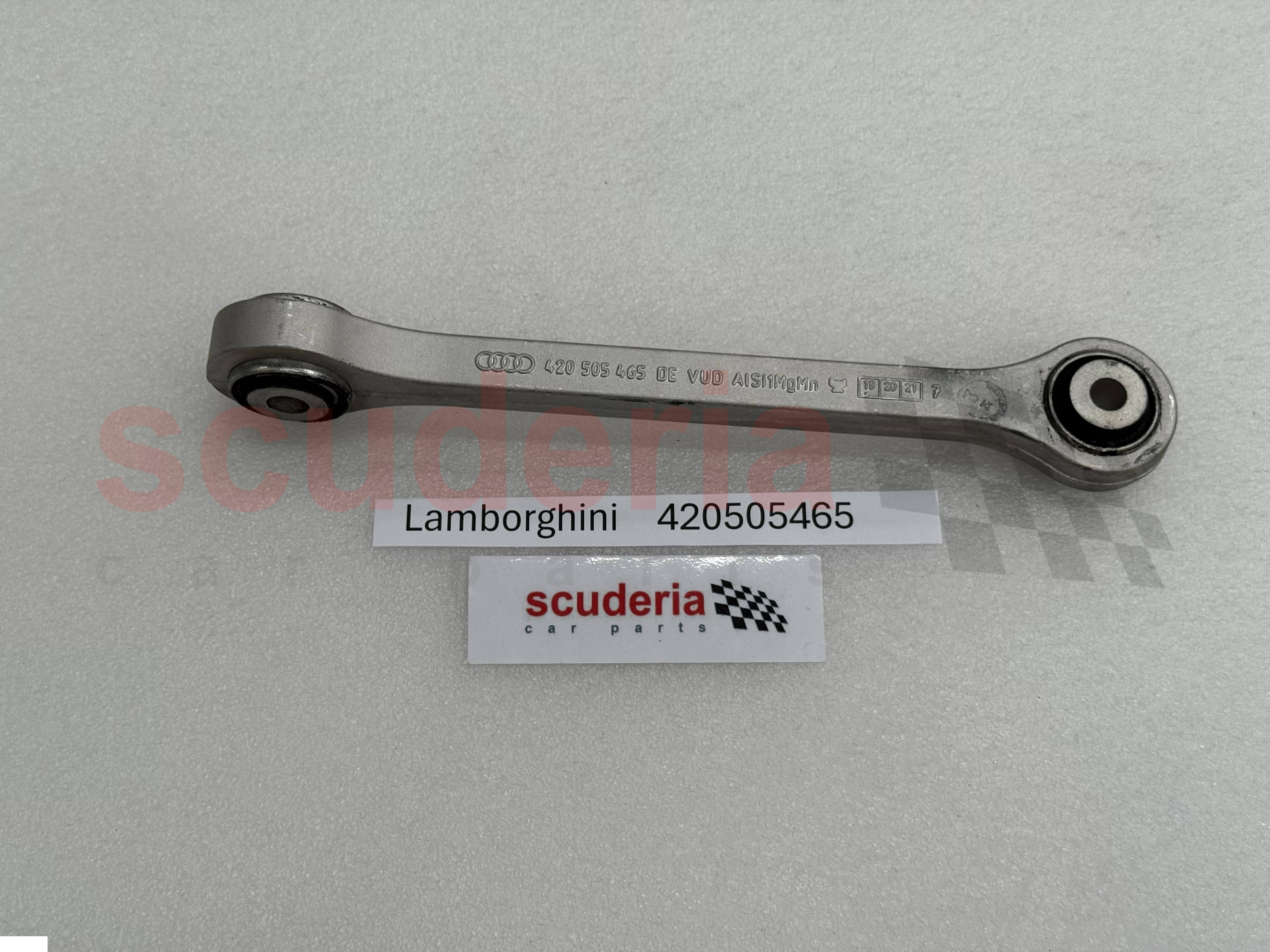

016 420505465
Connecting Rod
IN STOCK 		$163.76 2
017 420407458F
RIGHT SUPPORT 		$522.51 1
017 420407457F
LEFT SUPPORT 		$522.51 1
018 N10272302
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$2.44 (65.8% off) 2
020 N10106402
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$2.57 2
021 420407458F
RIGHT SUPPORT 		$522.51 1
021 420407457F
LEFT SUPPORT 		$522.51 1
022 WHT002262
ECCENTRIC BOLT 		$14.14 (4.1% off) 2
023 WHT003176
SCREW M12X1.5X125 		$16.74 2
024 WHT001676
ECCENTRIC WASHER
IN STOCK 		$1.64 (77.4% off) 4
025 N10106402
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$2.57 4
026 N10428002
HEX COLLARED BOLT 		$6.98 4
027 4D0411336G
CLAMP 		$5.52 2
028 N90848404
NUT M12X1.5 		$4.12 2
029 N90848404
NUT M12X1.5 		$4.12 2
030 420501530C
CONNECTING ROD (FROM VIN ALA09566)
use : 420501530H 		$1,020.66 2
031 400512019AS
SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE) 		$3,897.36 1
031 400512019AS
SHOCK ABSORBER (STANDARD/COMFORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE) 		$3,897.36 2
031 400512019AT
SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE) 		$1,157.51 2
032 N10428002
HEX COLLARED BOLT 		$6.98 2
033 N10106402
HEXAGON COLLAR NUT SELF-LOCKING
IN STOCK 		$2.57 2
034 4E0971845AR
BRACKET 		$8.89 2
035 N10082911
SCREW M6X16
IN STOCK 		$0.77 2
039 N104285302
SCREW M10X62X45 		- 2 Enquire
