Front Arms of Lamborghini Lamborghini Gallardo LP560 Spyder

View All

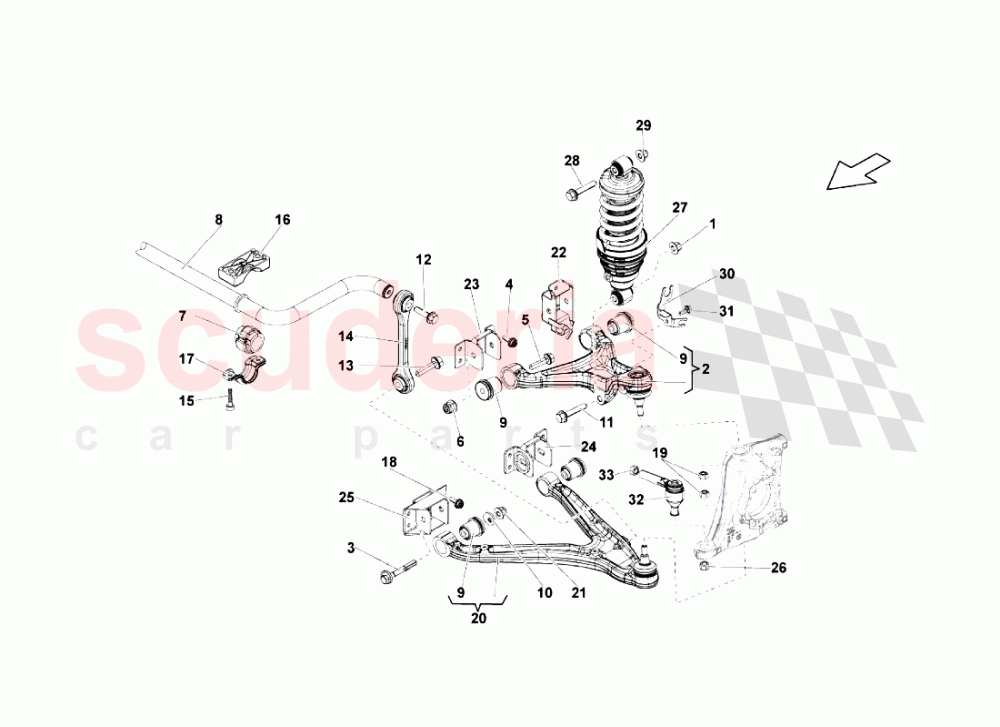

Lamborghini Gallardo LP560 Spyder - Front Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.52	2
002	420407506A	RH UPPER ARM	420407506A RH UPPER ARM	$526.32	1
002	420407505D	LH UPPER ARM	420407505D LH UPPER ARM	$618.63	1
003	WHT002262	ECCENTRIC BOLT	WHT002262 ECCENTRIC BOLT	$13.91 MSRP: ~~14.75~~ (5.7% off)	4
004	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.38	16
005	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.87	4
006	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.52	2
007	4D0411327J	RUBBER BUSH IN STOCK	4D0411327J RUBBER BUSH IN STOCK	$168.14	2
008	420411309	FRONT STABILIZER BAR	420411309 FRONT STABILIZER BAR	$354.28	1
009	8E0505185P	BEARING IN STOCK	8E0505185P BEARING IN STOCK	$34.02	8
010	WHT001676	ECCENTRIC WASHER IN STOCK	WHT001676 ECCENTRIC WASHER IN STOCK	$1.61 MSRP: ~~7.27~~ (77.9% off)	4
011	N10629501	JOURNAL M12X1.50X125X90	N10629501 JOURNAL M12X1.50X125X90	$9.42	2
012	N10699901	HEXAGON BOLT IN STOCK	N10699901 HEXAGON BOLT IN STOCK	$3.93	2
013	N10314506	HEX COLLARED BOLT	N10314506 HEX COLLARED BOLT	$4.30	4
014	420407465	Connecting Rod IN STOCK	420407465 Connecting Rod IN STOCK	$225.50	2
015	N10682501	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10682501 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.76 MSRP: ~~7.07~~ (46.8% off)	4
016	420411031A	ANTI-ROLL BAR BEARING BRACKET IN STOCK	420411031A ANTI-ROLL BAR BEARING BRACKET IN STOCK	$24.26	2
017	4D0411336G	CLAMP	4D0411336G CLAMP	$5.43	2
018	N10689301	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.38	16
019	N90848404	NUT M12X1.5	N90848404 NUT M12X1.5	$4.05	4
020	420407152J	RH LOWER ARM	420407152J RH LOWER ARM use : 420407152J	$606.15	1
020	420407151B	LH LOWER ARM	420407151B LH LOWER ARM use : 420407151J	$599.90	1
021	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.52	4
022	420407458B	RIGHT SUPPORT	420407458B RIGHT SUPPORT	$54.01	1
022	420407457B	LEFT SUPPORT	420407457B LEFT SUPPORT	$54.01	1
023	420407457F	LEFT SUPPORT	420407457F LEFT SUPPORT	$513.98	1
023	420407458F	RIGHT SUPPORT	420407458F RIGHT SUPPORT	$513.98	1
024	420407457H	LEFT SUPPORT	420407457H LEFT SUPPORT	$54.01	1
024	420407458H	RIGHT SUPPORT	420407458H RIGHT SUPPORT	$54.01	1
025	400407457	SUPPORT	400407457 SUPPORT	$154.04	2
026	N90848404	NUT M12X1.5	N90848404 NUT M12X1.5	$4.05	2
027	400412019BT	SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019BT SHOCK ABSORBER (STANDARD/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$10,338.40	2
027	400412019CB	SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019CB SHOCK ABSORBER (SPORT/LIFTING SYSTEM - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$11,478.17	2
027	400412019BB	SHOCK ABSORBER (COMFORT/LIFTING SYSTEM - BILSTEIN)	400412019BB SHOCK ABSORBER (COMFORT/LIFTING SYSTEM - BILSTEIN)	$3,269.61	2
027	400412019BA	SHOCK ABSORBER (COMFORT)	400412019BA SHOCK ABSORBER (COMFORT)	$1,329.71	2
027	400412019BL	SHOCK ABSORBER (SPORT)	400412019BL SHOCK ABSORBER (SPORT)	$1,329.71	2
027	400412019BS	SHOCK ABSORBER (STANDARD - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	400412019BS SHOCK ABSORBER (STANDARD - UNTIL THE VIN ALA09701 REPLACE PER AXLE)	$1,341.23	2
028	N10428002	HEX COLLARED BOLT	N10428002 HEX COLLARED BOLT	$6.87	2
029	N10106402	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10106402 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.52	2
030	400971846A	RH BRACKET	400971846A RH BRACKET	$34.31	1
030	400971845A	LH BRACKET	400971845A LH BRACKET	$34.31	1
031	N10714801	OVAL HEXAGON SOCKET HEAD BOLT	N10714801 OVAL HEXAGON SOCKET HEAD BOLT	$1.43	2
032	420419811A	BALL JOINT COUPLING	420419811A BALL JOINT COUPLING	$173.40	2
033	N10218708	NUT M14X1.5	N10218708 NUT M14X1.5	$3.70 MSRP: ~~7.15~~ (48.3% off)	2
