Water Cooling System 2 of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

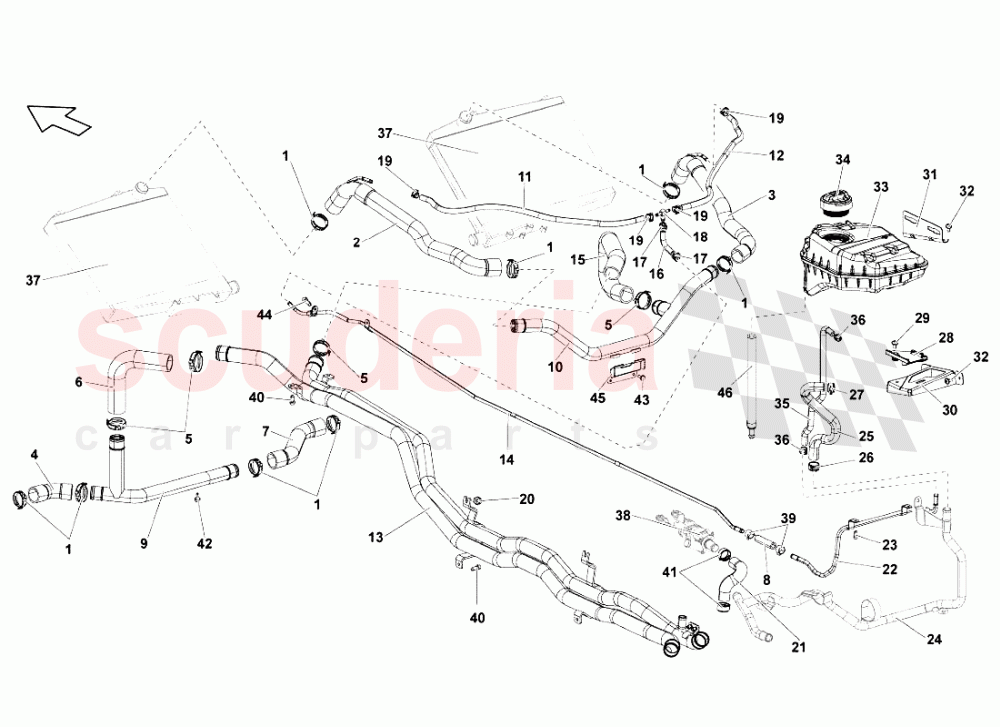

Lamborghini Gallardo LP560 Coupe - Water Cooling System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7L121530B	CLAMP	7L121530B CLAMP	$3.51	8
002	400121057A	FEED PIPE	400121057A FEED PIPE	$330.41	1
003	400121063A	FEED PIPE	400121063A FEED PIPE	$153.94	1
004	400121059A	RETURN HOSE	400121059A RETURN HOSE	$49.57	1
005	N90926501	SPRING BAND CLAMP IN STOCK	N90926501 SPRING BAND CLAMP IN STOCK	$9.71	4
006	400121053A	PIPE	400121053A PIPE	$69.46	1
007	400121073A	RETURN HOSE	400121073A RETURN HOSE	$59.53	1
008	7L121109D	SLEEVE	7L121109D SLEEVE	$44.63	1
009	400121508A	RETURN HOSE	400121508A RETURN HOSE	$1,840.16	1
010	400121510B	FEED PIPE	400121510B FEED PIPE	$1,320.65	1
011	7L121102B	VENT PIPE	7L121102B VENT PIPE	$69.46	1
012	7L121101A	VENT PIPE	7L121101A VENT PIPE	$69.46	1
013	400121050A	PIPE	400121050A PIPE	$1,977.44	1
014	400121465	VENT PIPE	400121465 VENT PIPE	$958.50	1
015	400121058A	FEED PIPE	400121058A FEED PIPE	$79.34	1
016	7L121337	VENT PIPE	7L121337 VENT PIPE	$51.75	1
017	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP	$2.19 MSRP: ~~7.10~~ (69.2% off)	2
018	470133794A	T-PIECE	470133794A T-PIECE	$98.52	1
019	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP	$2.19 MSRP: ~~7.10~~ (69.2% off)	4
020	N01508315	HEXAGON COLLAR NUT	N01508315 HEXAGON COLLAR NUT	$2.08 MSRP: ~~7.34~~ (71.7% off)	2
021	400121123	PIPE	400121123 PIPE	$69.46	1
022	420121486	PIPE	420121486 PIPE	$89.64	1
023	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52	2
025	420121109A	PIPE IN STOCK	420121109A PIPE IN STOCK	$29.35	1
026	N90686902	SPRING BAND CLAMP IN STOCK	N90686902 SPRING BAND CLAMP IN STOCK	$5.59	1
027	N90686901	SPRING BAND CLAMP IN STOCK	N90686901 SPRING BAND CLAMP IN STOCK	$5.77	1
028	7L0121093A	BRACKET	7L0121093A BRACKET	$14.47	1
029	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.08 MSRP: ~~7.26~~ (71.3% off)	2
030	400121261	BRACKET	400121261 BRACKET	$43.06	1
031	420121262B	BRACKET IN STOCK	420121262B BRACKET IN STOCK	$9.01	1
032	N10653201	HEX COLLARED BOLT IN STOCK	N10653201 HEX COLLARED BOLT IN STOCK	$2.19	4
033	420121403	RESERVOIR	420121403 RESERVOIR	$435.75	1
034	420121321	EXPANSION TANK CAP	420121321 EXPANSION TANK CAP	$132.53	1
035	420121107A	PIPE IN STOCK	420121107A PIPE IN STOCK	$20.16	1
036	N90770201	SPRING BAND CLAMP IN STOCK	N90770201 SPRING BAND CLAMP IN STOCK	$3.78	2
039	N90770201	SPRING BAND CLAMP IN STOCK	N90770201 SPRING BAND CLAMP IN STOCK	$3.78	2
040	N10648001	SCREW M8X25	N10648001 SCREW M8X25	$1.83 MSRP: ~~7.27~~ (74.8% off)	4
041	N90687001	SPRING BAND CLAMP IN STOCK	N90687001 SPRING BAND CLAMP IN STOCK	$7.04	2
042	N10653201	HEX COLLARED BOLT IN STOCK	N10653201 HEX COLLARED BOLT IN STOCK	$2.19	2
043	N91096701	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91096701 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.52	4
045	400121239	BRACKET	400121239 BRACKET	$16.52	1
046	7L121428A	PIPE	7L121428A PIPE	$634.54	1
