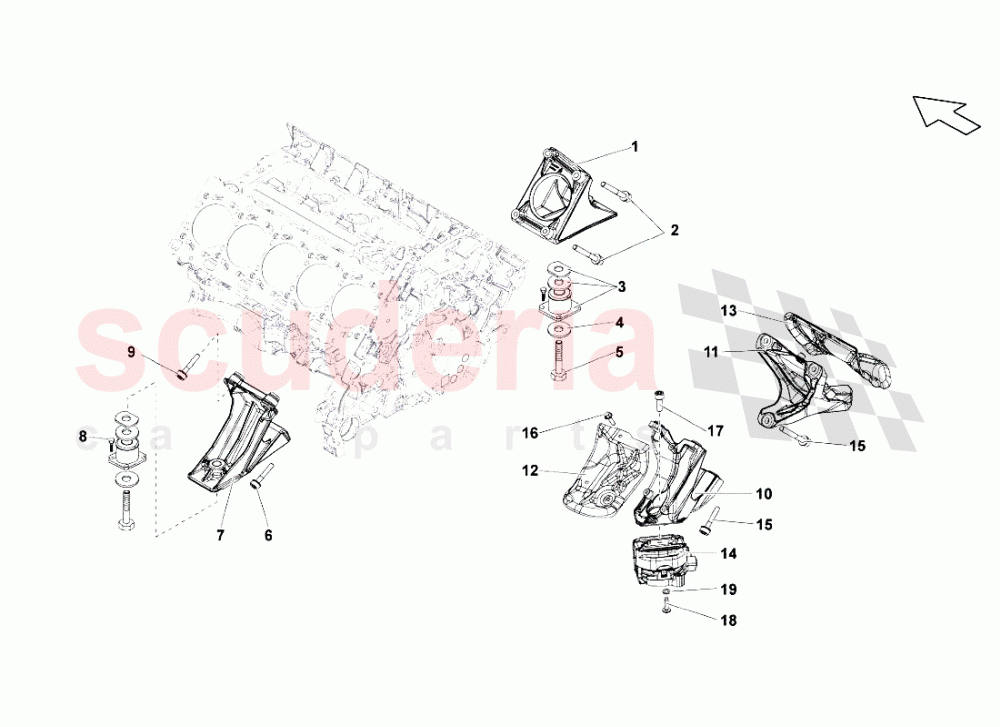

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
010	420199307H	SUPPORT	420199307H SUPPORT	$227.19 MSRP: ~~233.50~~ (2.7% off)	1
011	420199308G	RH SUPPORT	420199308G RH SUPPORT	$453.11	1
012	420199387E	GUARD PLATE	420199387E GUARD PLATE	$22.05	1
013	420199388D	RH HEAT SHIELD	420199388D RH HEAT SHIELD	$22.05	1
014	420199381AA	ENGINE MOUNTING IN STOCK	420199381AA ENGINE MOUNTING IN STOCK	$543.21	2
015	N91135801	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91135801 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.32	8
016	N90724602	HEXAGON HEAD BOLT (COMBI)	N90724602 HEXAGON HEAD BOLT (COMBI)	$0.58 MSRP: ~~7.29~~ (92% off)	6
017	N91137001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91137001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$16.57	2
018	N10665001	FLAT HEAD MULTI-POINT SOCKET BOLT	N10665001 FLAT HEAD MULTI-POINT SOCKET BOLT	$2.51 MSRP: ~~7.07~~ (64.5% off)	4
019	N90033308	WASHER IN STOCK	N90033308 WASHER IN STOCK	$1.18 MSRP: ~~7.20~~ (83.6% off)	4
