Head Timing System of Lamborghini Lamborghini Gallardo LP560 Coupe

View All

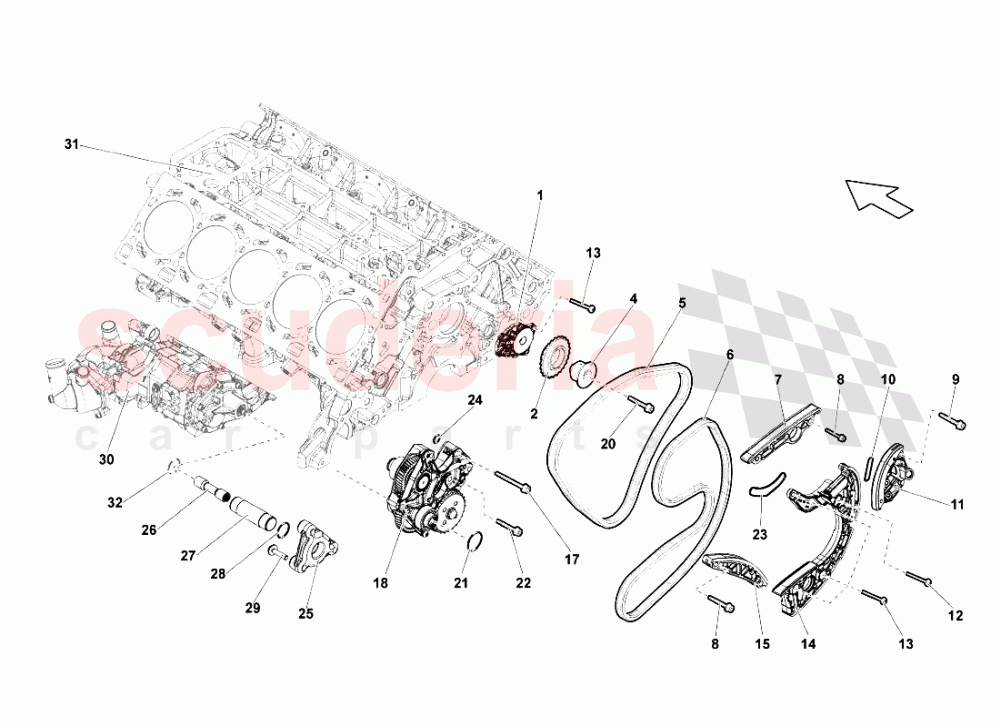

Lamborghini Gallardo LP560 Coupe - Head Timing System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	79103337G	SUPPORT	79103337G SUPPORT	$43.71	1
002	79109570AT	CHAIN SPROCKET	79109570AT CHAIN SPROCKET	$92.78	1
003	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	1
004	79109224E	BEARING PIN	79109224E BEARING PIN	$88.14	1
005	6E109465BH	TIMING CHAIN	6E109465BH TIMING CHAIN	$185.89	1
006	6E109465BL	TIMING CHAIN IN STOCK	6E109465BL TIMING CHAIN IN STOCK	$144.17	1
007	79109469AL	GUIDE RAIL IN STOCK	79109469AL GUIDE RAIL IN STOCK	$29.42	1
008	N91129001	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91129001 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$4.83 MSRP: ~~7.04~~ (31.4% off)	1
009	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	1
010	79109139L	SEAL IN STOCK	79109139L SEAL IN STOCK	$15.21	1

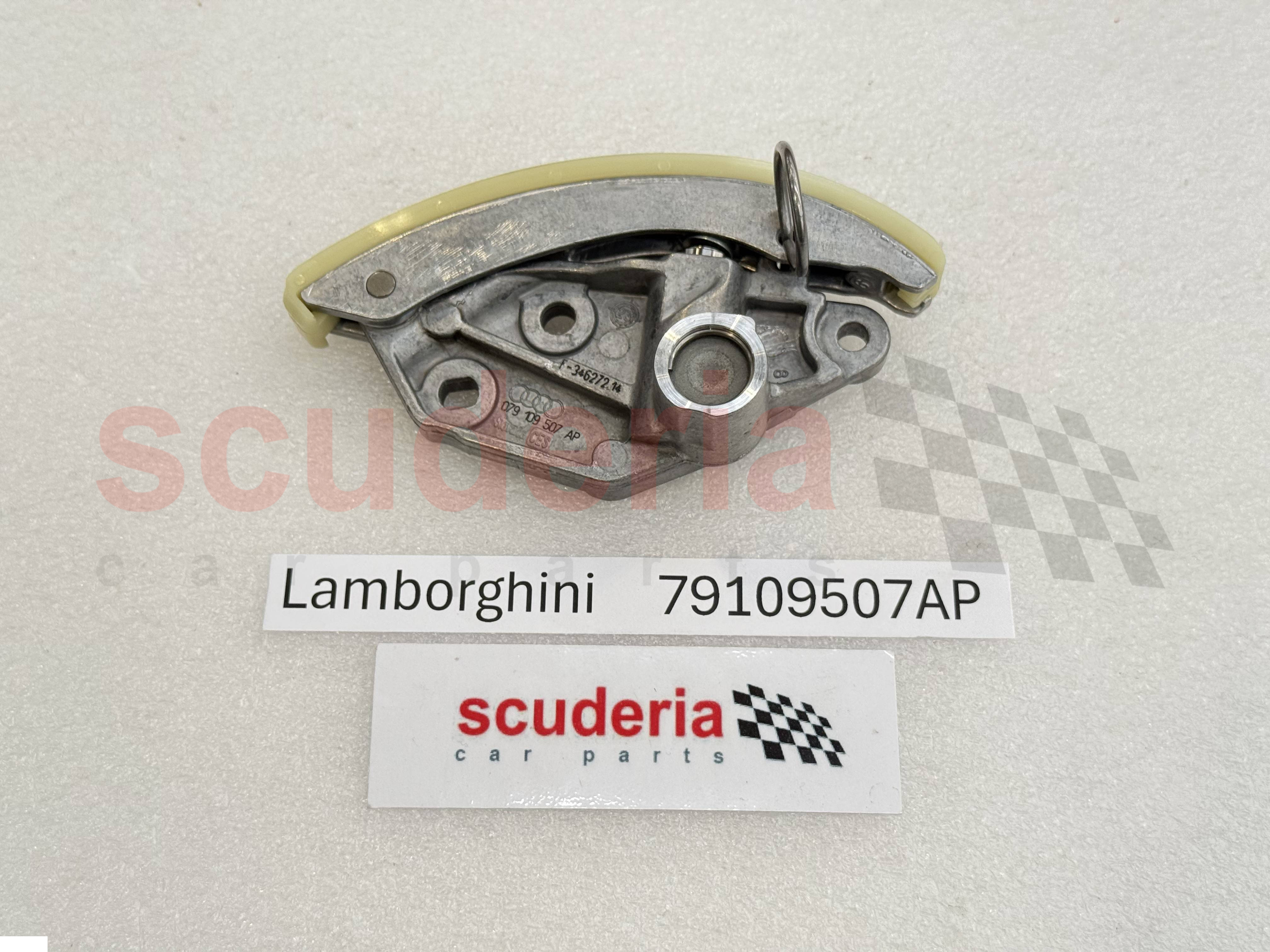

011	79109507AP	CHAIN TENSIONER IN STOCK	79109507AP CHAIN TENSIONER IN STOCK	$164.84	1
012	N10554002	ROUND HD. SCREW	N10554002 ROUND HD. SCREW	$1.94 MSRP: ~~7.20~~ (73.1% off)	1
013	N10124304	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124304 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.69	1

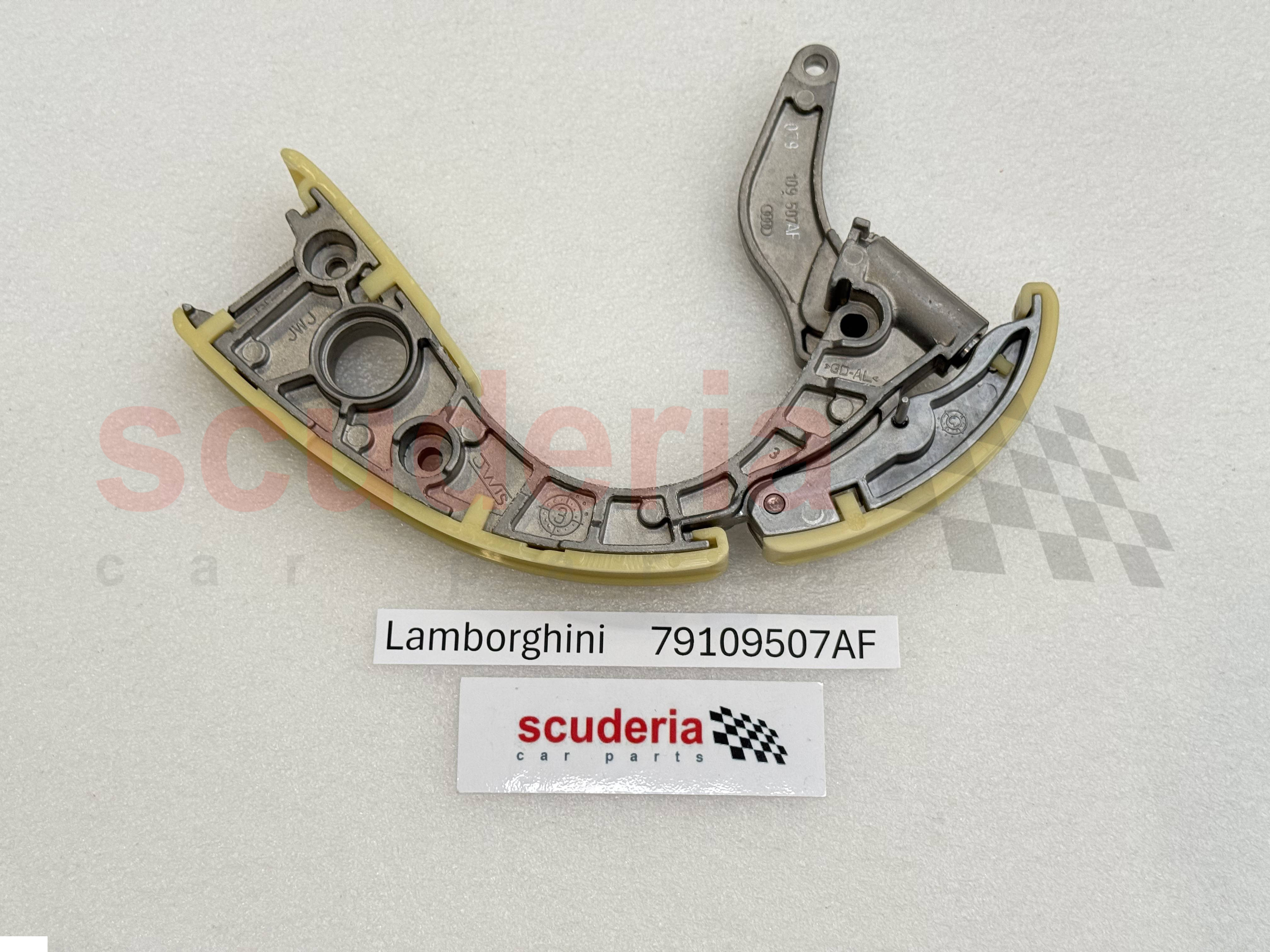

014	79109507AF	CHAIN TENSIONER IN STOCK	79109507AF CHAIN TENSIONER IN STOCK	$207.53	1
015	79109469AM	GUIDE RAIL IN STOCK	79109469AM GUIDE RAIL IN STOCK	$29.35	1
017	N91119601	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91119601 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$4.21	1
018	7L109359T	SUPPORT	7L109359T SUPPORT	$1,110.53	1
020	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$6.39 MSRP: ~~6.55~~ (2.4% off)	1
021	WHT000417	O-Ring IN STOCK	WHT000417 O-Ring IN STOCK	$2.38	1
022	N91046302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91046302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$2.50 MSRP: ~~7.14~~ (65% off)	1
023	79109139A	GASKET IN STOCK	79109139A GASKET IN STOCK	$3.56	1
024	N90740801	O-RING IN STOCK	N90740801 O-RING IN STOCK	$3.82 MSRP: ~~7.28~~ (47.5% off)	1
025	7L103707B	COVER	7L103707B COVER	$79.67	1
026	7L115138H	COUPLING	7L115138H COUPLING	$171.54	1
027	7L115467B	PIPE IN STOCK	7L115467B PIPE IN STOCK	$25.67	1

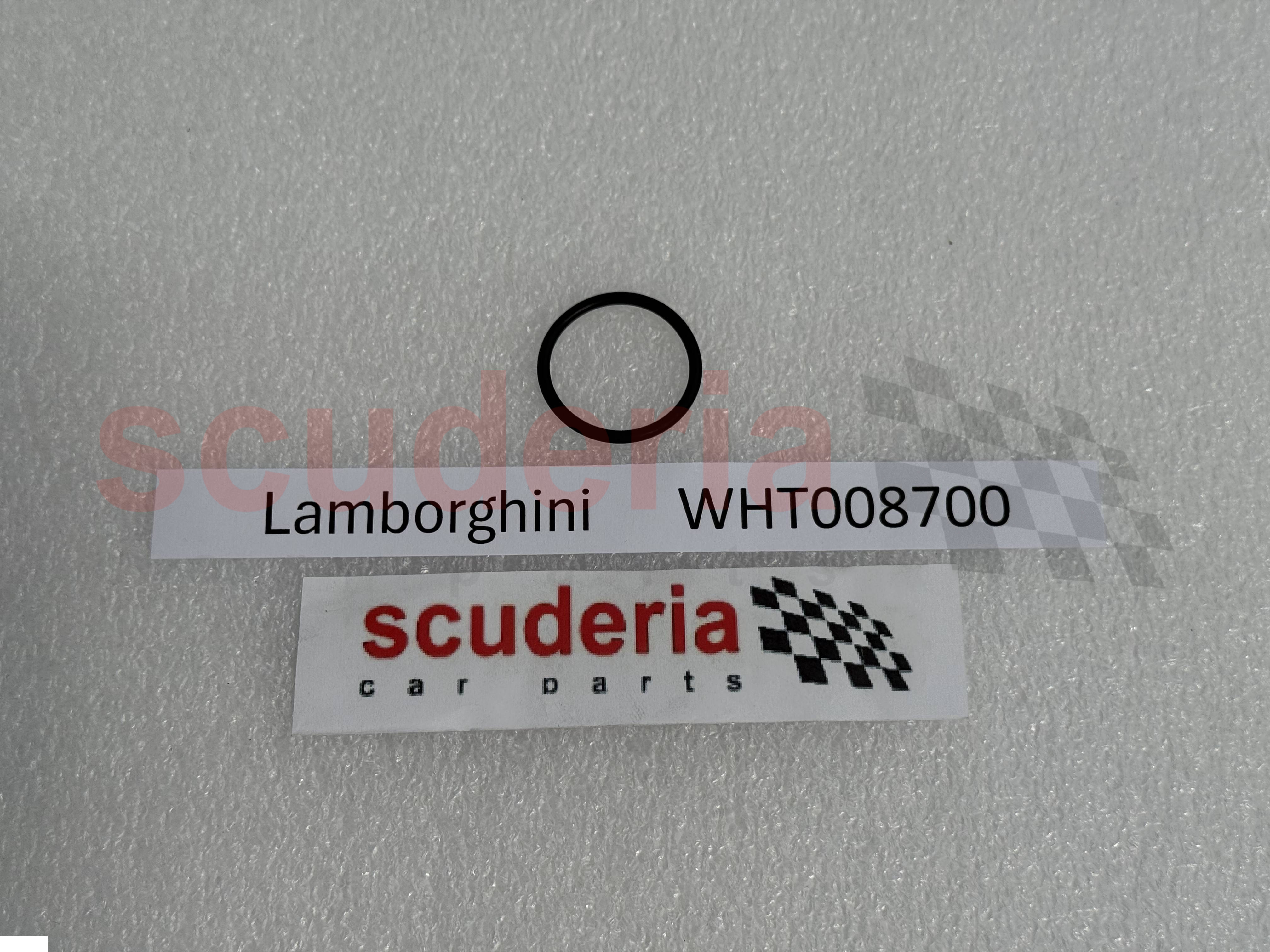

028	WHT008700	O-RING IN STOCK	WHT008700 O-RING IN STOCK	$2.84	1
029	N10704501	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10704501 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.94 MSRP: ~~7.25~~ (73.2% off)	3
