Lamborghini Gallardo (2008) - Accelerator Pedal (e-gear)

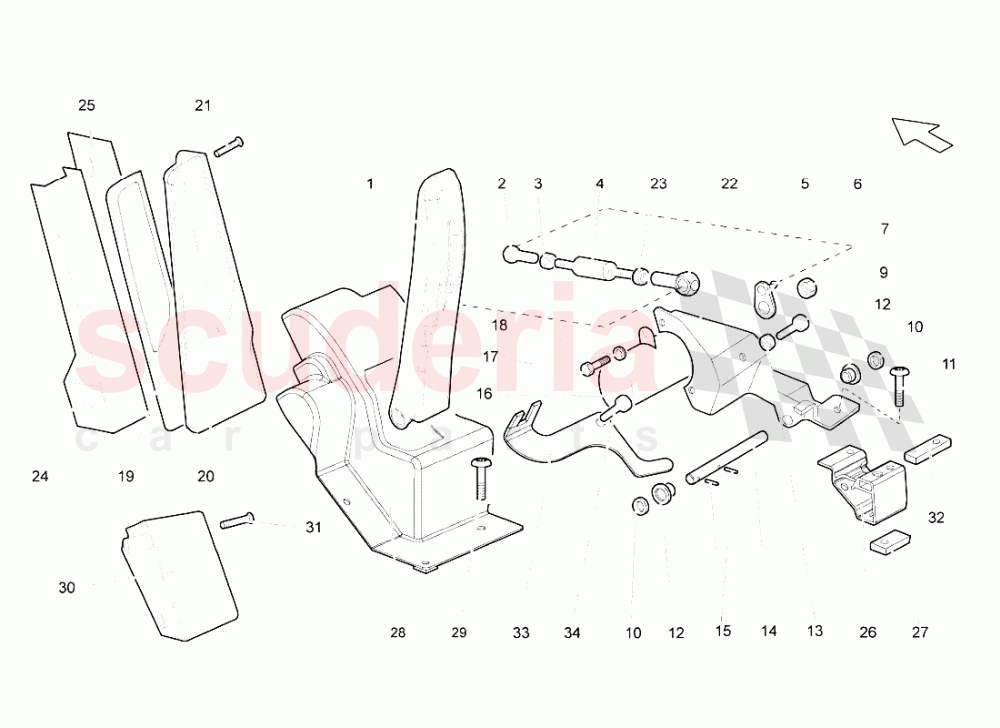

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	$2,264.65	1
002	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	$59.46	1
003	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	$489.22	2
004	400721743A	SHAFT	400721743A SHAFT	$37.43	1
005	400721651A	SUPPORT	400721651A SUPPORT	$1,100.51	1
006	400721728B	LEVER	400721728B LEVER	$58.84	1
007	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	1
009	N01024718	SCREW	N01024718 SCREW	$2.94 MSRP: ~~7.09~~ (58.5% off)	1
010	WHT000697	WASHER	WHT000697 WASHER	$0.91 MSRP: ~~7.24~~ (87.4% off)	2
011	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$10.80	6
011	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	$3.49 MSRP: ~~7.21~~ (51.6% off)	6
012	400721543	BUSHING	400721543 BUSHING	$25.71	2
013	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.93	1
014	400721157	JOURNAL	400721157 JOURNAL	$30.78	1
015	N10206801	PIN	N10206801 PIN	$0.62 MSRP: ~~7.29~~ (91.5% off)	2
016	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	$1,734.37	1
017	N10546402	HEXAGON SOCKET HEAD BOLT	N10546402 HEXAGON SOCKET HEAD BOLT	$1.32 MSRP: ~~7.30~~ (81.9% off)	2
018	8400628	WASHER	8400628 WASHER	$0.21 MSRP: ~~7.36~~ (97.1% off)	2
019	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	$20.47	1
020	401864419B	FOOTREST DRIVER SIDE	401864419B FOOTREST DRIVER SIDE	$204.06	1
021	N10648801	SCREW M6X80 (GDX AUTOMATIC GEARBOX)	N10648801 SCREW M6X80 (GDX AUTOMATIC GEARBOX)	$3.50	2
022	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	$40.67	1
023	N01100520	NUT M5	N01100520 NUT M5	$0.88	2
024	401864523A	SUPPORT	401864523A SUPPORT	$51.28	1
025	401864431B	COVER	401864431B COVER	$79.61	1
026	400803427A	U-BOLT	400803427A U-BOLT	$66.03	1
027	401803016A	PLATE	401803016A PLATE	$76.25	1
028	401721585A	ACCELERATOR COVER BOX	401721585A ACCELERATOR COVER BOX	$128.52	1
029	N91000203	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91000203 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$10.80	1
032	400723325B	PLATE	400723325B PLATE	$31.14	1
033	402971890	BRACKET	402971890 BRACKET	$35.95	1
034	N90847903	Screw M6X15 IN STOCK	N90847903 Screw M6X15 IN STOCK	$1.82	1
