Rear Differential of Lamborghini Lamborghini Gallardo (2008)

View All

Lamborghini Gallardo (2008) - Rear Differential

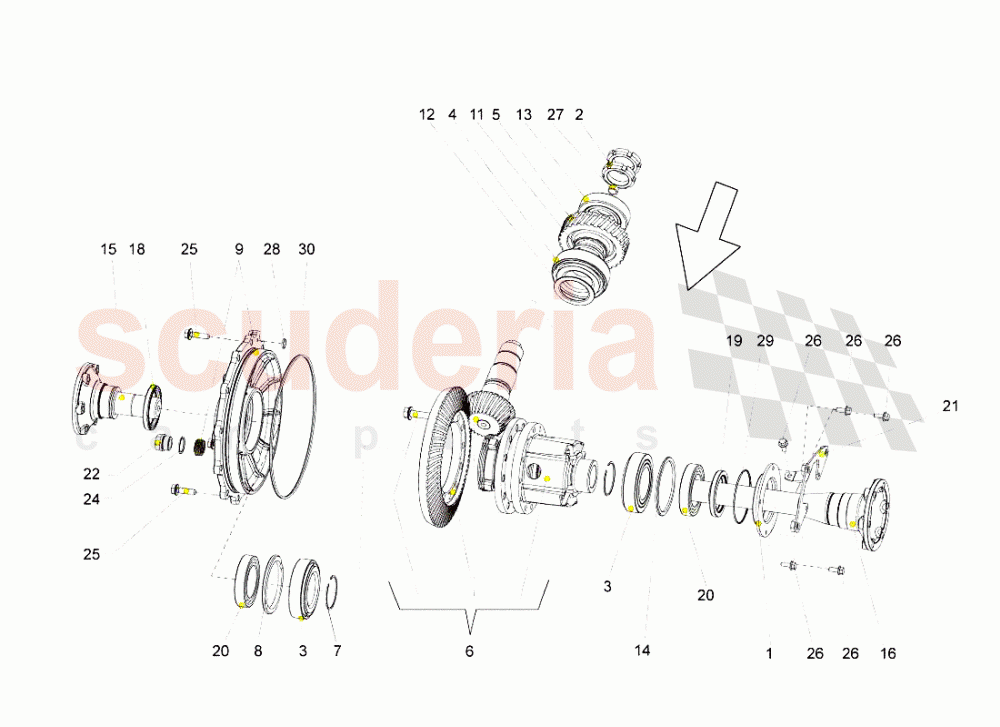

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	86301184A	RH CLUCH HOUSING COVER	86301184A RH CLUCH HOUSING COVER	$181.57	1
002	86307291	RING NUT	86307291 RING NUT	$75.13	2
003	86311124	BEARING	86311124 BEARING	$209.02 MSRP: ~~212.00~~ (1.4% off)	2
004	86311211	BEARING	86311211 BEARING	$233.98 MSRP: ~~239.50~~ (2.3% off)	1
005	86311347A	GEAR	86311347A GEAR	$482.92	1
006	86525021A	DIFFERENTIAL + BEVEL GEAR PAIR	86525021A DIFFERENTIAL + BEVEL GEAR PAIR	$89,327.83	1
007	86525125	SECURING RING	86525125 SECURING RING	$7.61	1
008	86525126D	RING 6.0 MM	86525126D RING 6.0 MM	$115.30	1
008	86525126A	RING 6.6 MM	86525126A RING 6.6 MM	$115.30	1
008	86525126E	RING 5.8 MM	86525126E RING 5.8 MM	$115.30	1
008	86525126B	RING 6.4 MM	86525126B RING 6.4 MM	$115.30	1
008	86525126	RING 6.8 MM	86525126 RING 6.8 MM	$115.30	1
008	86525126C	RING 6.2 MM	86525126C RING 6.2 MM	$115.30	1
008	86525126F	RING 5.5 MM	86525126F RING 5.5 MM	$115.30	1
009	86525127B	FLANGE	86525127B FLANGE	$751.05	1
011	86525231	4.00 mm ADJUSTMENT SHIM	86525231 4.00 mm ADJUSTMENT SHIM	$99.07	1
012	86525241	2.00 mm ADJUSTMENT SHIM	86525241 2.00 mm ADJUSTMENT SHIM	$134.13	1
013	86525251	BEARING	86525251 BEARING	$311.99	1
014	86525271C	RING mm. 2.60	86525271C RING mm. 2.60	$83.74	1
014	86525271	RING mm. 3.3	86525271 RING mm. 3.3	$83.74	1
014	86525271B	RING mm. 2.8	86525271B RING mm. 2.8	$83.74	1
014	86525271A	RING mm. 2.95	86525271A RING mm. 2.95	$83.74	1
015	86525356C	MAIN SHAFT	86525356C MAIN SHAFT	$428.04	1
016	86525357C	MAIN SHAFT	86525357C MAIN SHAFT	$803.45	1
018	86525596	SHAFT OIL SEAL	86525596 SHAFT OIL SEAL	$49.73	1
019	86525597	SEAL RING	86525597 SEAL RING	$46.89	1
020	86525777A	BEARING IN STOCK	86525777A BEARING IN STOCK	$99.21	2
021	400501721B	BRACKET	400501721B BRACKET	$50.49	1
022	86301114	OIL LEVEL CAP	86301114 OIL LEVEL CAP	$15.66	1
024	N0138271	SEAL RING IN STOCK	N0138271 SEAL RING IN STOCK	$3.95 MSRP: ~~7.16~~ (44.8% off)	1
025	N10128106	SCREW	N10128106 SCREW	$3.64	12
026	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$48.97	5
027	86311357	BUSHING	86311357 BUSHING	$44.49	1
028	WHT001492	O-RING	WHT001492 O-RING	$4.37	5
029	N91029001	O-RING	N91029001 O-RING	$7.10	1
030	N91029101	O-RING	N91029101 O-RING	$37.49	1
