Find Your Part

View All

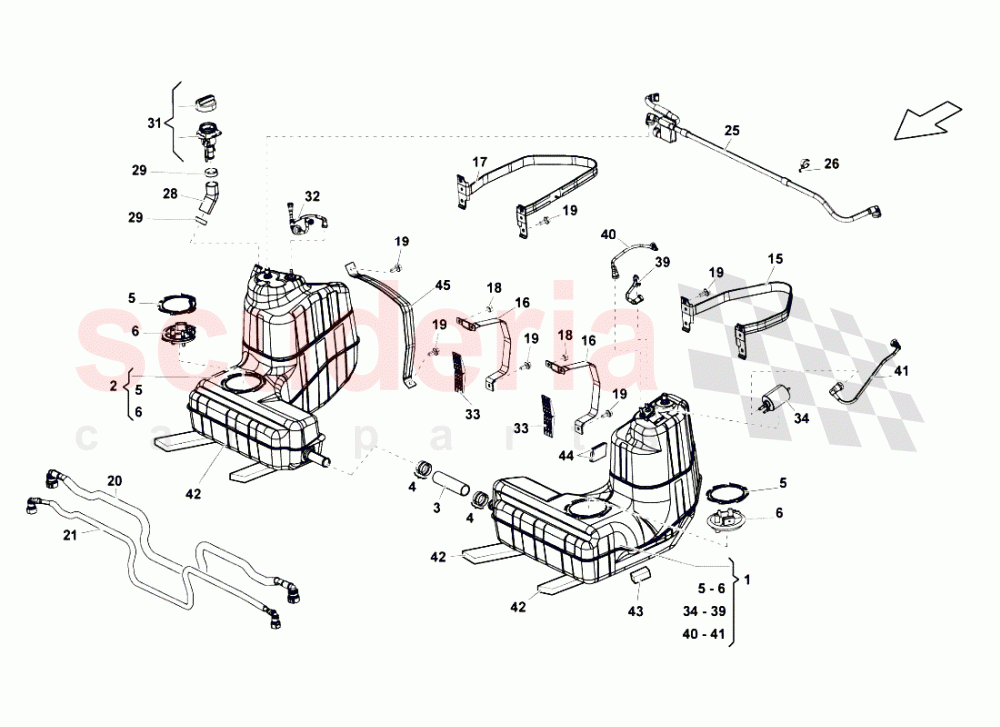

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407201021B	LH TANK	407201021B LH TANK	$3,880.17	1
002	407201022	RH TANK	407201022 RH TANK	$4,399.61	1
002	407201022A	RH TANK (FROM VIN BLA10942 ) -	407201022A RH TANK (FROM VIN BLA10942 ) -	$4,199.35	1
003	420201143C	PIPE	420201143C PIPE	$72.24	1
004	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.01	4
015	407201653	CLAMP	407201653 CLAMP	$213.42	1
016	400201653A	CLAMP	400201653A CLAMP	$78.48	2
017	407201654	BLIND FLANGE (SEE TABLE 201.11.00) -	407201654 BLIND FLANGE (SEE TABLE 201.11.00) -	$124.67	1
018	N10340103	HEXAGON COLLAR NUT	N10340103 HEXAGON COLLAR NUT	$2.19 MSRP: ~~7.24~~ (69.8% off)	4
019	N90994402	SCREW M8X30	N90994402 SCREW M8X30	$11.65	6
020	420201420	PIPE	420201420 PIPE	$211.53	1
021	420201419	PIPE	420201419 PIPE	$65.60	1
025	407201167	PIPE	407201167 PIPE	$1,677.22	1
026	420201449	SECURING CLIP IN STOCK	420201449 SECURING CLIP IN STOCK	$63.09	2
032	407201163A	PIPE	407201163A PIPE	$230.32	1
033	420201645	PROTECTION	420201645 PROTECTION	$10.96	2
042	420201365	UNDERLAY	420201365 UNDERLAY	$18.09	4
043	400201365G	PROTECTION	400201365G PROTECTION	$4.89	2
044	443201365B	UNDERLAY	443201365B UNDERLAY	$6.89	4
045	407201725	CLAMP	407201725 CLAMP	$220.31	1
