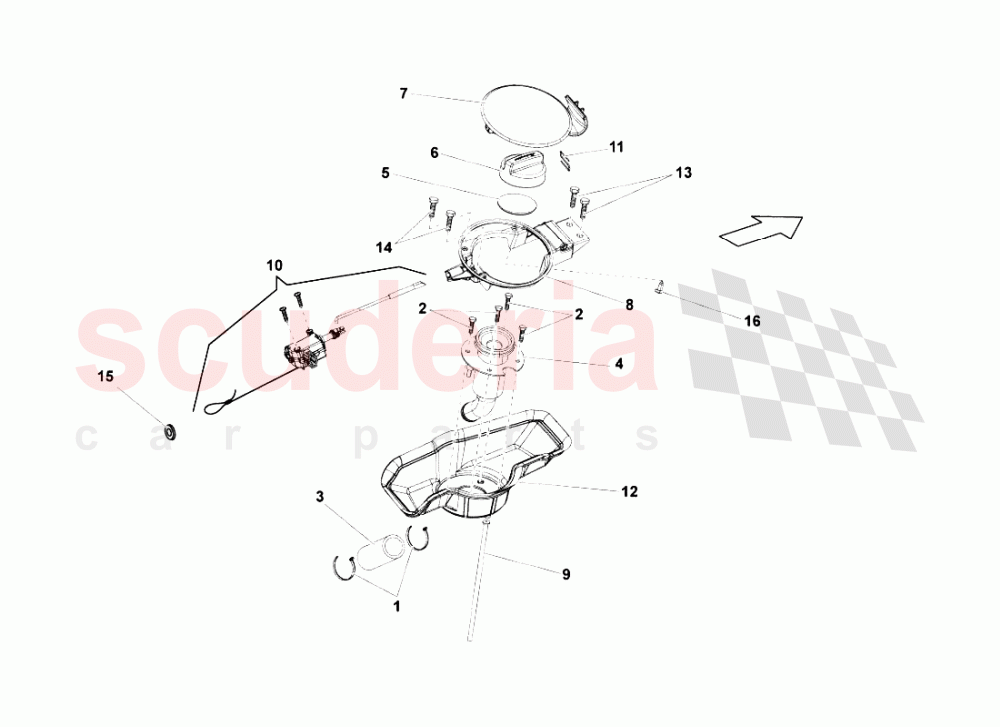

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N91104001	SPRING BAND CLAMP	N91104001 SPRING BAND CLAMP	$6.00	2
002	WHT001190	ROUND HD. SCREW IN STOCK	WHT001190 ROUND HD. SCREW IN STOCK	$2.08	4
003	400201130E	FUEL FILLER PIPE	400201130E FUEL FILLER PIPE	$33.12	1
004	407201137C	FUEL FILLER ASSY, UPPER -	407201137C FUEL FILLER ASSY, UPPER -	$480.47	1
005	400201557	GASKET	400201557 GASKET	$541.77	1
006	400201587A	Fuel Filler Plug IN STOCK	400201587A Fuel Filler Plug IN STOCK	$908.52	1
007	400809909A	FUEL FILLER LID	400809909A FUEL FILLER LID	$208.33	1
008	407809933C	FUEL FILLER TANK -	407809933C FUEL FILLER TANK -	$611.83	1
009	8Z0809937	WATER DRAIN PIPE IN STOCK	8Z0809937 WATER DRAIN PIPE IN STOCK	$2.08 MSRP: ~~7.07~~ (70.6% off)	1
010	407998375	ACTUATOR	407998375 ACTUATOR	$70.47	1
011	1J0809931	SPRING IN STOCK	1J0809931 SPRING IN STOCK	$4.95	1
012	407809930E	FUEL FILLER TANK -	407809930E FUEL FILLER TANK -	$127.62	1
013	N90924801	SCREW	N90924801 SCREW	$4.83	2
014	N90455204	SCREW (M4X10 - ONLY FOR VEHICLES WITH STANDARD) IN STOCK	N90455204 SCREW (M4X10 - ONLY FOR VEHICLES WITH STANDARD) IN STOCK	$0.57 MSRP: ~~7.30~~ (92.2% off)	2
015	410103638	FAIRLEAD 5X8X2	410103638 FAIRLEAD 5X8X2	$13.52	1
016	N10720101	COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD IN STOCK	N10720101 COUNTERSUNK OVAL BOLT WITH HEXAGON SOCKET HEAD IN STOCK	$0.97 MSRP: ~~7.33~~ (86.8% off)	2
