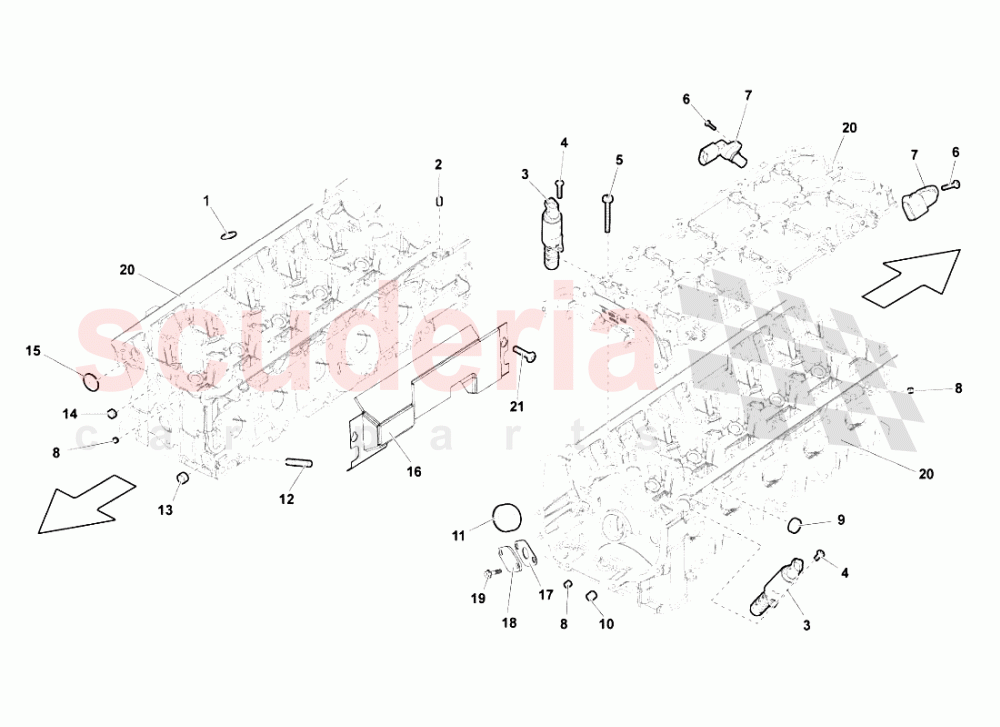

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	6D103377	WASHER	6D103377 WASHER	$5.55	12
003	6E109257AA	CONTROL VALVE	6E109257AA CONTROL VALVE	$135.39	2
004	N91068201	HEXAGON SOCKET FLAT HEAD BOLT	N91068201 HEXAGON SOCKET FLAT HEAD BOLT	$0.90 MSRP: ~~7.34~~ (87.7% off)	2
005	N91127602	HEXAGON SOCKET FLAT HEAD BOLT	N91127602 HEXAGON SOCKET FLAT HEAD BOLT	$1.94 MSRP: ~~7.22~~ (73.1% off)	28
006	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	$1.52	2
007	7L905163C	IMPULSE SENDER IN STOCK	7L905163C IMPULSE SENDER IN STOCK	$100.12	2
008	7L109291	BUNGS	7L109291 BUNGS	$12.78	5
010	6E103175B	CHECK VALVE	6E103175B CHECK VALVE	$15.55	2
011	26103113	PLUG IN STOCK	26103113 PLUG IN STOCK	$3.02	1
012	N0145555	THREADED PIN	N0145555 THREADED PIN	$3.66 MSRP: ~~7.13~~ (48.7% off)	15
013	N0119078	END CAP IN STOCK	N0119078 END CAP IN STOCK	$1.28 MSRP: ~~7.29~~ (82.4% off)	1
014	N0294542	SCREW M10X1.00	N0294542 SCREW M10X1.00	$1.15 MSRP: ~~7.20~~ (84% off)	1
015	6B103113C	END CAP IN STOCK	6B103113C END CAP IN STOCK	$8.89	2
016	420199455	GUARD PLATE	420199455 GUARD PLATE	$82.65	1
021	N90780901	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N90780901 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$2.90 MSRP: ~~7.38~~ (60.7% off)	2
