Front Suspension of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

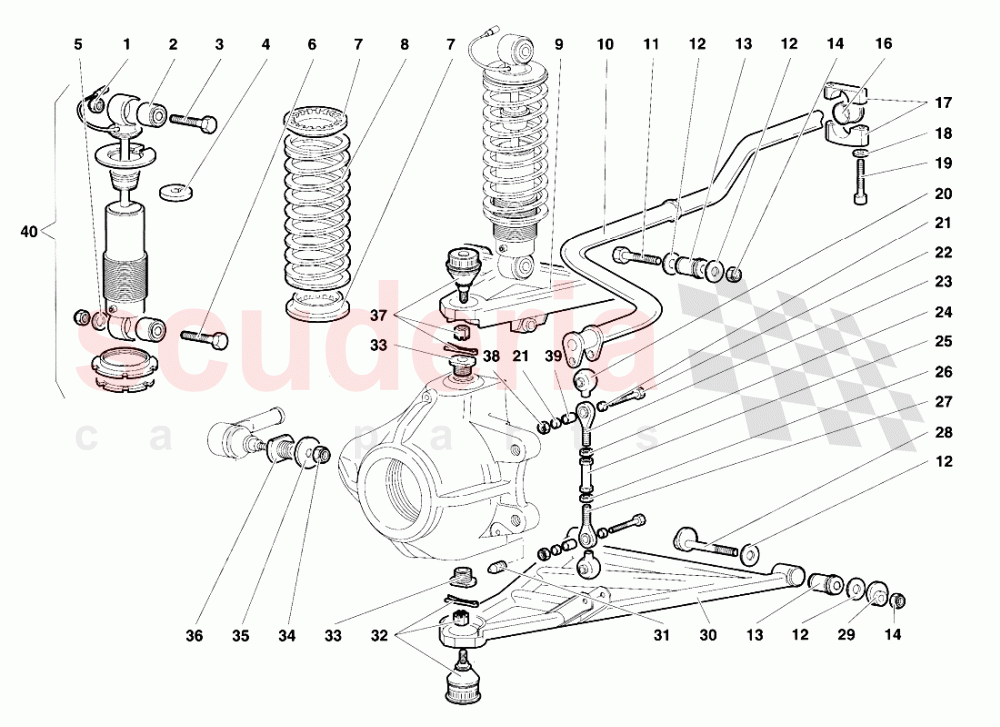

Lamborghini Diablo VT (1993-1998) - Front Suspension

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.47	4
002	410512383	FLEXIBLE BUSHING	410512383 FLEXIBLE BUSHING	$550.19	4
003	8101259	SCREW	8101259 SCREW VITE	$14.41	2
004	5134315	SPACER	5134315 SPACER DISTANZIALE	$33.35 MSRP: ~~36.30~~ (8.1% off)	2
005	8401234	WASHER	8401234 WASHER RONDELLA	$1.56 MSRP: ~~7.11~~ (78.1% off)	12
006	5133229	SCREW	5133229 SCREW VITE	$102.97	2
007	410512385	RUBBER RING	410512385 RUBBER RING	$49.60	4
008	5133618	SPRING	5133618 SPRING MOLLA	$184.88 MSRP: ~~206.50~~ (10.5% off)	2
009	5133344	ARM	5133344 ARM BRACCIO SUPERIORE DX	$1,558.90	1
009	5133345	ARM	5133345 ARM BRACCIO SUPERIORE SX	$1,632.80	1
010	5134392	TORSION BAR	5134392 TORSION BAR BARRA TORSIONE	$874.28 MSRP: ~~950.00~~ (8% off)	1
011	8101269	SCREW	8101269 SCREW VITE	$4.86	4
012	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM DISTANZIALE 2 MM	$6.23	1
012	410407295D	WASHER	410407295D WASHER DISTANZIALE 3 MM	$27.59	1
012	5133488	SHIM	5133488 SHIM DISTANZIALE 1 ,5 MM	$3.10	1
012	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM DISTANZIALE 1 MM	$4.25	1
012	410407295C	2.5 MM ADJUSTMENT SHIM	410407295C 2.5 MM ADJUSTMENT SHIM DISTANZIALE 2,5	$6.87	1
013	8921206	RESILIENT BUSHING	8921206 RESILIENT BUSHING BOCCOLA ELASTICA	$46.71	8
014	WHT003355	NUT M12X1,25 IN STOCK	WHT003355 NUT M12X1,25 DADO IN STOCK	$20.47	8
016	5238302	BUSHING IN STOCK	5238302 BUSHING BOCCOLA IN STOCK	$134.45	2
017	5230258	RETAINER	5230258 RETAINER CAVALLOTTO	$289.10	2
018	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.66	4
019	8700609	SCREW	8700609 SCREW VITE	$0.50 MSRP: ~~7.31~~ (93.2% off)	4
020	5109714	BOOT	5109714 BOOT CAPPUCCIO	$24.37	4
021	5227297	BUSHING	5227297 BUSHING BOCCOLA	$30.04	8
022	8100810	SCREW	8100810 SCREW VITE	-	4	Enquire
023	417801931A	BALL JOINT	417801931A BALL JOINT GIUNTO SFERICO	$248.28	2
024	8201014	NUT	8201014 NUT DADO	$5.71	2
025	6209770	TIE ROD	6209770 TIE ROD TIRANTE	-	2	Enquire
026	8201016	NUT	8201016 NUT DADO	$21.13	2
027	5227295	BALL JOINT	5227295 BALL JOINT GIUNTO SFERICO	$141.79	2
028	410407127A	BOLT	410407127A BOLT PERNO CON ECCENTRICO	$2,170.82	4
029	410407127A	BOLT	410407127A BOLT ECCENTRICO	$2,170.82	4
030	5133039	ARM	5133039 ARM BRACCIO INFERIORE SX	$1,212.17	1
030	5133038	ARM	5133038 ARM BRACCIO INFERIORE DX	$1,212.17	1
031	WHT002941	SCREW M6X1X10	WHT002941 SCREW M6X1X10 VITE	$0.90 MSRP: ~~7.24~~ (87.6% off)	4
032	410407361B	COUPLING	410407361B COUPLING TESTA A SNODO	$1,170.50	2
033	410407171C	BUSH	410407171C BUSH BUSSOLA	$1,372.35	4
034	8201003	NUT	8201003 NUT DADO	$3.23	2
035	WHT000919	WASHER	WHT000919 WASHER	$14.04	2
036	5129541	BUSHING	5129541 BUSHING BUSSOLA	$43.96	2
037	410407365	Coupling	410407365 Coupling TESTA A SNODO	$246.39	2
038	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
039	5227298	BUSHING	5227298 BUSHING BOCCOLA	$16.36 MSRP: ~~17.80~~ (8.1% off)	4
040	5133165	SHOCK ABSORBER	5133165 SHOCK ABSORBER AMMORTIZZATORE ANTERIORE	$1,235.39	2
