Electrical System (Valid For R.h.d. Version - April 1994) 3

Lamborghini Diablo VT (1993-1998)

Find Your Part

Lamborghini Diablo VT (1993-1998) - Electrical System (Valid for R.H.D. Version - April 1994) 3

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

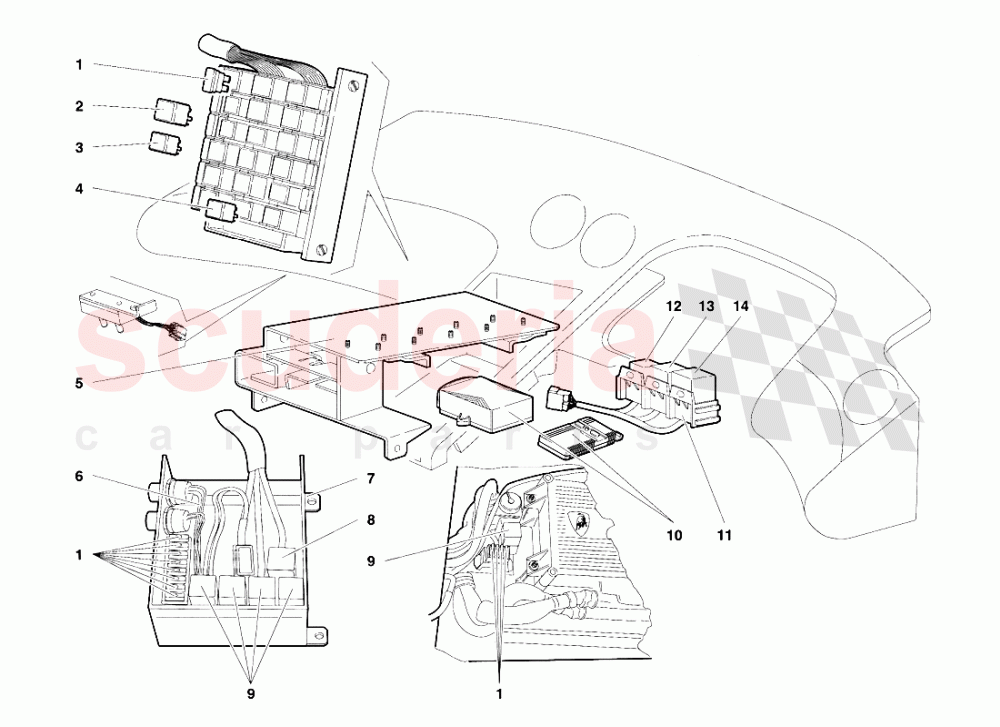

Electrical System (Valid for R.H.D. Version - April 1994) 3 of Lamborghini Lamborghini Diablo VT (1993-1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1629259
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE 30 AMP. 		$0.57 1
001 1633966
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE 25 AMP. 		$0.57 1
001 1626697
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE10AMP. 		$0.57 1
001 1629258
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE 20 AMP. 		$0.57 (92.2% off) 1
001 1629257
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE 7,5 AMP. 		$1.42 1
001 1626193
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE 15 AMP. 		$0.57 1
001 1626192
FUSE
(Valid for R.H.D. version - April 1994) FUSIBILE5AMP. 		$0.57 1
002 6311154
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151
(Valid for R.H.D. version - April 1994) 87 BOSCH 0.332.014.151 		$45.36 1
002 6319913
RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151
(Valid for R.H.D. version - April 1994) 87A BOSCH 0.33.204.151 		$59.59 1
003 6034961
RELAY - (Valid for R.H.D. version - April 1994) RELAY/DIODO BOSCH 87 0.332.014.112
(Valid for R.H.D. version - April 1994) /DIODO BOSCH 87 0.332.014.112 		$43.43 1
003 6311155
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006
(Valid for R.H.D. version - April 1994) 87B BOSCH 0.332.015.006 		$54.43 1
004 6034540
DIODES ASSEMBLY
(Valid for R.H.D. version - April 1994) GRUPPO DIODI (ITALAMEC331.10) 		$18.38 1
005 9414627
SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO
(Valid for R.H.D. version - April 1994) O 		$218.34 (6.7% off) 1
006 6130615
ELECT CABLE
(Valid for R.H.D. version - April 1994) CABLAGGIO 		- 1 Enquire
007 6130086
RELAY HOUSING
(Valid for R.H.D. version - April 1994) SCATOLA RELAY POST. 		- 1 Enquire
008 1625477
RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 384
(Valid for R.H.D. version - April 1994) ITALAMEC 384 		$25.99 1
009 6319913
RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151
(Valid for R.H.D. version - April 1994) BOSCH 0.332.204.151 		$59.59 1
009 6311154
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151
(Valid for R.H.D. version - April 1994) BOSCH 0.332.014.151 		$45.36 1
009 6311155
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006
(Valid for R.H.D. version - April 1994) BOSCH 0.332.015.006 		$54.43 1
010 5934378
REMO. LOCKING E.C.U.
(Valid for R.H.D. version - April 1994) CENTRALINA CHIUSURA CENTR. 		- 1 Enquire
011 6134626
RELAYS SUPPORT
(Valid for R.H.D. version - April 1994) SUPPORTO RELAYS 		- 1 Enquire
012 6311155
RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006
(Valid for R.H.D. version - April 1994) BOSCH 87B 0332.015.006 		$54.43 1
013 6319913
RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151
(Valid for R.H.D. version - April 1994) 87A BOSCH 0332.204.151 		$59.59 1
014 6030676
RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10
(Valid for R.H.D. version - April 1994) ITALAMEC 424.10 		$148.68 (7.1% off) 1
