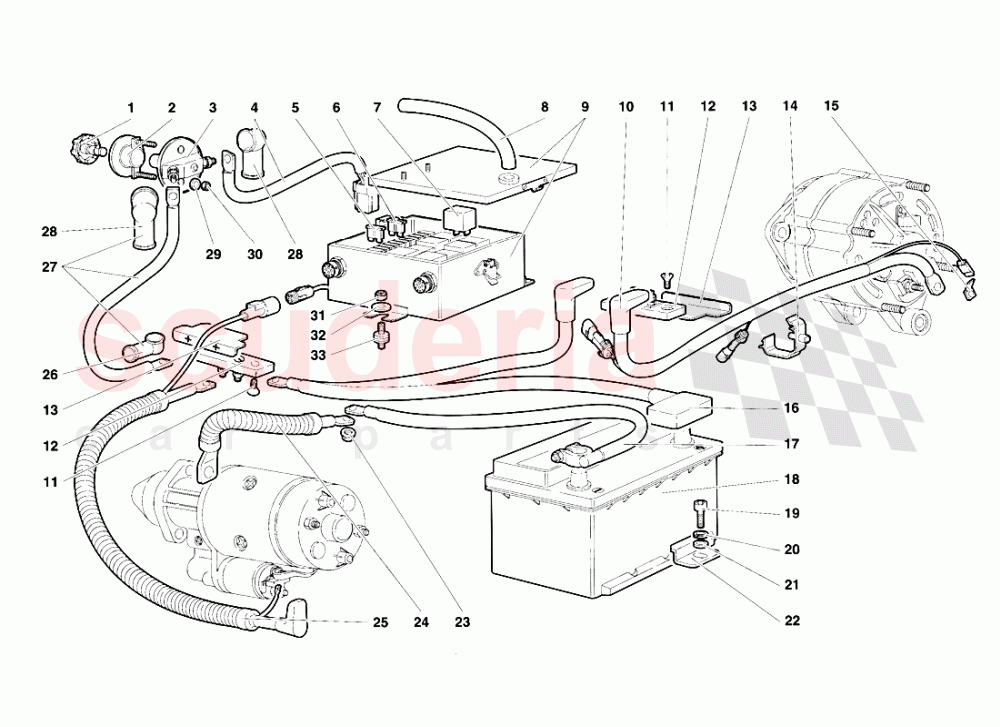

Lamborghini Diablo VT (1993-1998) - Electrical System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5931167	KNOB	5931167 KNOB POMELLO	$83.13	1
002	5931299	FLANGE	5931299 FLANGE FLANGIA	$215.82 MSRP: ~~243.50~~ (11.4% off)	1
003	5931163	CONNECTING BLOCK	5931163 CONNECTING BLOCK BLOCCHETTO CONNESSIONE	$217.55	1
004	6133729	ELECT CABLE	6133729 ELECT CABLE CAVO ELETTRICO	$31.40	1
005	1626193	FUSE	1626193 FUSE FUSIBILEDA15AMP.	$0.56	1
005	1626697	FUSE	1626697 FUSE FUSIBILEDA10AMP.	$0.56	1
005	1626192	FUSE	1626192 FUSE FUSIBILEDA5AMP.	$0.56	1
005	1633966	FUSE	1633966 FUSE FUSIBILEDA25AMP.	$0.56	1
006	6134479	DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L.	6134479 DIODE D.R.L. - (Valid for SWITZERLAND version - April 1994) DIODE D.R.L. DIODO	$37.58	1
007	6311154	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151	6311154 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 0.332.014.151 TELERUT. 87 BOSCH 0.332.014.151	$44.49	1
007	6319913	RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151	6319913 RELAY - (Valid for R.H.D. version - April 1994) RELAY 87A BOSCH 0332.204.151 TELERUT. 87a BOSCH 0.332.204.151	$58.44	1
007	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 TELERUT. 87b BOSCH 0.332.015.006	$53.38	1
008	6134396	PIPE	6134396 PIPE TUBO	$97.12	1
009	6133752	CASE	6133752 CASE SCATOLA	$294.58	1
010	6133727	ELECT CABLE	6133727 ELECT CABLE CAVO ELETTRICO	$585.48	1
011	8700801	SCREW	8700801 SCREW VITE	$0.19	4
012	1606170	ELECTRIC CONNECT.	1606170 ELECTRIC CONNECT. CONNESSIONE ELETTRICA	$58.07	2
013	6132457	PLATE	6132457 PLATE TARGHETTA	$6.25	2
014	8832006	STRAP	8832006 STRAP FASCETTA	$2.76 MSRP: ~~2.95~~ (6.4% off)	3
015	6131975	CONTACT PLATE	6131975 CONTACT PLATE PIASTRINA CONTATTO	$0.37	1
016	6134530	ELECT CABLE	6134530 ELECT CABLE CAVO ELETTRICO	-	1	Enquire
017	6134536	ELECT CABLE	6134536 ELECT CABLE CAVO ELETTRICO	$82.48	1
018	1624948	BATTERY	1624948 BATTERY BATTERIA	$1,062.10	1
019	8700815	SCREW IN STOCK	8700815 SCREW VITE IN STOCK	$0.19 MSRP: ~~7.36~~ (97.4% off)	1
020	8410819	WASHER	8410819 WASHER RONDELLA	$2.12 MSRP: ~~2.40~~ (11.7% off)	1
021	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
022	4130608	PLATE	4130608 PLATE LAMIERINO	$30.07	1
023	8200824	NUT	8200824 NUT DADO	$0.43 MSRP: ~~7.31~~ (94.1% off)	1
024	6130080	ELECT CABLE	6130080 ELECT CABLE CAVO ELETTRICO	$287.28	1
025	6133726	ELECT CABLE	6133726 ELECT CABLE CAVO ELETTRICO	$370.80	1
026	6134287	SHIELD	6134287 SHIELD PROTEZIONE	$33.94	1
027	6133728	ELECT CABLE	6133728 ELECT CABLE CAVO ELETTRICO	$47.02	1
028	6132132	SHIELD	6132132 SHIELD PROTEZIONE	$3.56	2
029	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	2
030	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.71	2
031	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.06	3
032	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.38	3
033	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$13.68	3
