Seats and Safety Belts of Lamborghini Lamborghini Diablo SV (1999)

View All

Lamborghini Diablo SV (1999) - Seats and Safety Belts

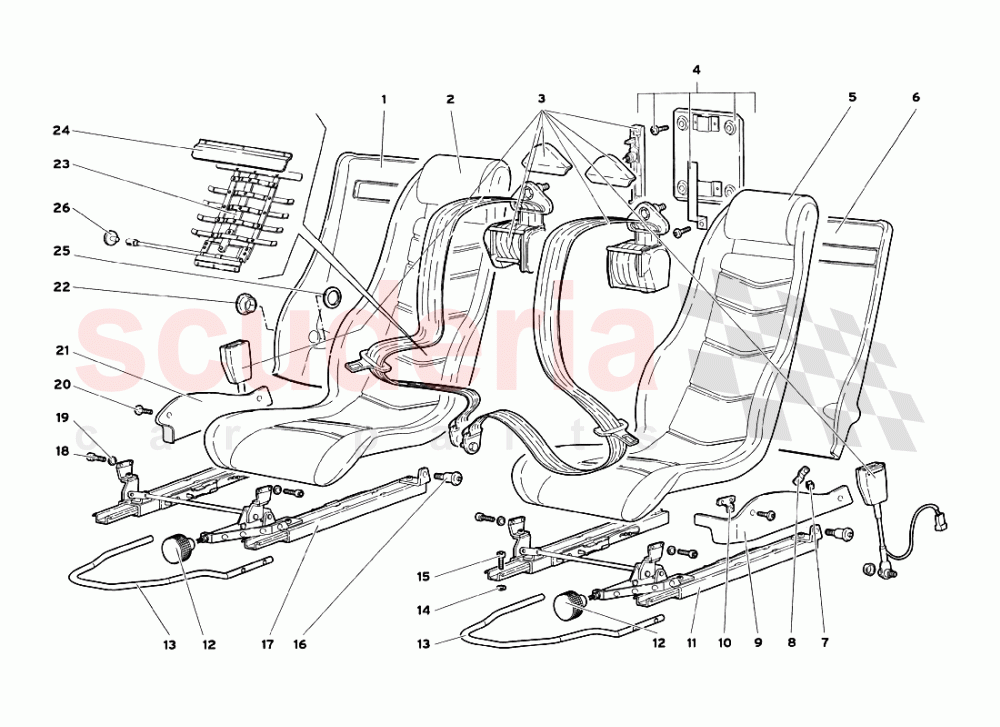

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9435112	R. REAR PANEL SEAT	9435112 R. REAR PANEL SEAT PANNELLO RETROSCHIENALE DX	$213.35 MSRP: ~~231.00~~ (7.6% off)	1
002	9935004	RIGHT SEAT	9935004 RIGHT SEAT SEDILE DX	-	1	Enquire
003	97001596	SEATS BELTS	97001596 SEATS BELTS CINTUREDI SICUREZZA	$439.75	1
004	9490324	SUPPORT - SUPPORTO	9490324 SUPPORT - SUPPORTO O	$63.28	1
005	9935005	LEFT SEAT	9935005 LEFT SEAT SEDILE SX	-	1	Enquire
006	9435113	L. REAR PANEL SEAT	9435113 L. REAR PANEL SEAT PANNELLO RETROSCHIENALE SX	$213.35 MSRP: ~~231.00~~ (7.6% off)	1
007	8220503	CLIP	8220503 CLIP MOLLETTA	$9.78 MSRP: ~~10.90~~ (10.3% off)	4
008	9435261	BRACKET	9435261 BRACKET STAFFA	$6.25 MSRP: ~~6.85~~ (8.8% off)	2
009	9435332	RIGHT SIDE PANEL	9435332 RIGHT SIDE PANEL PANNELLOLATERALESX	$70.91 MSRP: ~~76.70~~ (7.5% off)	1
010	9435263	LEFT BRACKET	9435263 LEFT BRACKET STAFFA SX	$6.25 MSRP: ~~6.85~~ (8.8% off)	1
010	9435262	RIGHT BRACKET	9435262 RIGHT BRACKET STAFFA DX	$6.25 MSRP: ~~6.85~~ (8.8% off)	1
011	9435019	LEFT SEAT GUIDE	9435019 LEFT SEAT GUIDE GUIDA SEDILE SX	$950.61 MSRP: ~~1,030.00~~ (7.7% off)	1
012	9435264	KNOB	9435264 KNOB POMELLO	$6.08 MSRP: ~~6.60~~ (7.9% off)	2
013	9435207	LEVER	9435207 LEVER LEVA SEDILE	-	2	Enquire
014	9435257	SPACER	9435257 SPACER DISTANZIALE	$13.53	8
015	8700847	SCREW	8700847 SCREW VITE	$1.73 MSRP: ~~7.06~~ (75.5% off)	8
016	9435232	PIN	9435232 PIN PERNO	$29.19 MSRP: ~~32.70~~ (10.7% off)	4
017	9435018	RIGHT SEAT GUIDE	9435018 RIGHT SEAT GUIDE GUIDA SEDILE DX	$950.61 MSRP: ~~1,030.00~~ (7.7% off)	1
018	8700670	SCREW	8700670 SCREW VITE	$0.26 MSRP: ~~7.35~~ (96.5% off)	8
019	8410601	WASHER	8410601 WASHER RONDELLA	$0.04 MSRP: ~~7.40~~ (99.5% off)	8
020	8700544	SCREW	8700544 SCREW VITE	$1.62	4
021	9435331	RIGHT SIDE PANEL	9435331 RIGHT SIDE PANEL PANNELLO LATERALE DX	$70.91 MSRP: ~~76.70~~ (7.5% off)	1
022	9435119	BUSHING	9435119 BUSHING BOCCOLA	$76.09	2
023	9435031	BACK-REST ADJU.-R.	9435031 BACK-REST ADJU.-R. REGOLATORE LOMBARE DX	$352.73 MSRP: ~~395.00~~ (10.7% off)	1
023	9435032	BACK-REST ADJU.-L.	9435032 BACK-REST ADJU.-L. REGOLATORE LOMBARE SX	$350.40 MSRP: ~~392.00~~ (10.6% off)	1
024	9435118	ANGLE PIECE	9435118 ANGLE PIECE ANGOLARE	$30.26 MSRP: ~~33.85~~ (10.6% off)	2
025	9435120	RING	9435120 RING ANELLO	$10.41 MSRP: ~~11.30~~ (7.9% off)	2
026	75005132	KNOB	75005132 KNOB POMELLO	$62.10 MSRP: ~~69.60~~ (10.8% off)	2
