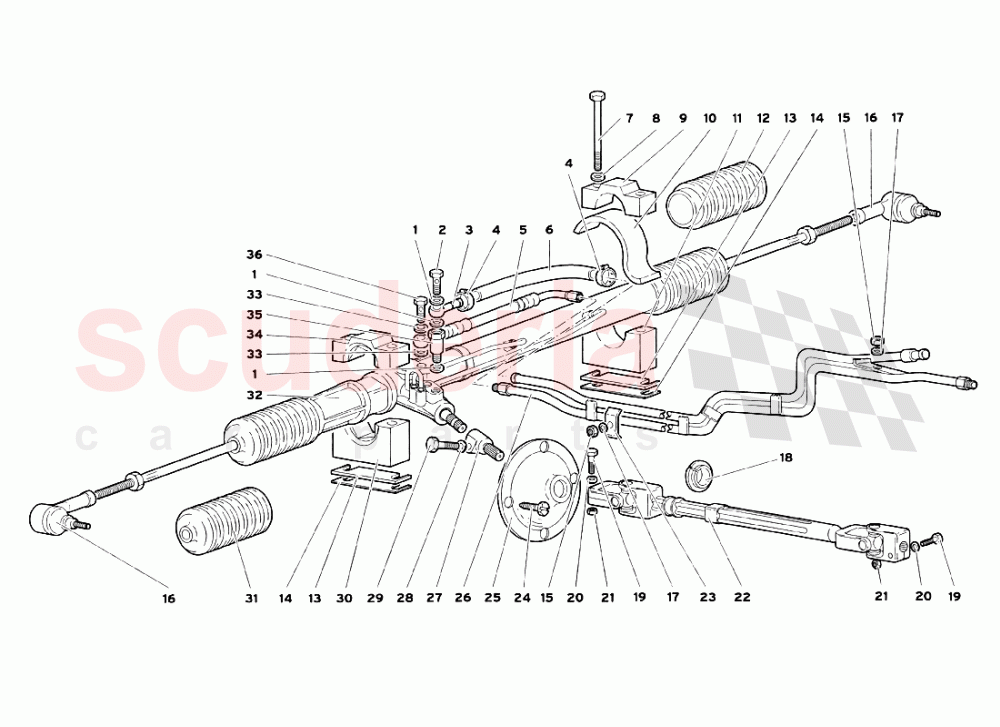

Lamborghini Diablo SV (1999) - Steering 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8401621	WASHER	8401621 WASHER RONDELLA	$1.20	3
002	3101941	SCREW	3101941 SCREW VITE FORATA	$4.36	1
003	4033471	CONNECTION	4033471 CONNECTION RACCORDO	-	1	Enquire
004	8831320	STRAP	8831320 STRAP FASCETTA	$3.01 MSRP: ~~3.25~~ (7.4% off)	2
005	4033464	PIPE	4033464 PIPE TUBO	$490.37	1
006	4033459	PIPE	4033459 PIPE TUBO	$24.89 MSRP: ~~27.00~~ (7.8% off)	1
007	8101076	SCREW	8101076 SCREW VITE	$2.84 MSRP: ~~3.00~~ (5.3% off)	4
008	8401007	WASHER	8401007 WASHER RONDELLA	$0.08 MSRP: ~~7.38~~ (98.9% off)	4
009	4333518	U-BOLT	4333518 U-BOLT CAVALLOTTO	$224.36	1
010	4331587	FLEX PAD	4331587 FLEX PAD SPESSORE IN COMMA	-	1	Enquire
011	4333655	SUPPORT	4333655 SUPPORT O	$356.02	1
012	4335023	BOOT	4335023 BOOT CUFFIA	$26.37	1
013	4333658	1.0 MM ADJUSTMENT SHIM	4333658 1.0 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 1 MM	$8.81 MSRP: ~~9.85~~ (10.6% off)	1
014	4333657	0.5 MM ADJUSTMENT SHIM	4333657 0.5 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 0,5 MM	$13.60 MSRP: ~~15.30~~ (11.1% off)	1
015	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	3
016	400419811A	Ball Joint Coupling IN STOCK	400419811A Ball Joint Coupling TESTA GIUNTO SFERICO IN STOCK	$1,290.85	2
017	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	3
018	43002396	BUSHING	43002396 BUSHING BOCCOLA	$102.64	1
019	8700843	SCREW	8700843 SCREW VITE	$4.00	2
020	8410823	WASHER	8410823 WASHER RONDELLA	$0.28	2
021	N0111849	NUT IN STOCK	N0111849 NUT DADO IN STOCK	$2.12 MSRP: ~~7.25~~ (70.8% off)	2
022	43002198	JOINTED SHAFT	43002198 JOINTED SHAFT ALBERO SNODATO	$616.67	1
023	4033480	PLATE	4033480 PLATE PIASTRINA	-	2	Enquire
024	8700673	SCREW	8700673 SCREW VITE	$10.69	4
025	410422326	GASKET	410422326 GASKET GUARNIZIONE	$253.20	1
026	4038062	PIPE	4038062 PIPE TUBO	$378.85 MSRP: ~~413.00~~ (8.3% off)	1
027	4332458	CONNECTION	4332458 CONNECTION CONNESSIONE	$325.89 MSRP: ~~354.00~~ (7.9% off)	1
028	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	1
029	8100831	SCREW	8100831 SCREW VITE	$0.23 MSRP: ~~7.35~~ (96.9% off)	1
030	4333656	SUPPORT	4333656 SUPPORT O	$274.07	1
031	4335023	BOOT	4335023 BOOT CUFFIA	$26.37	1
032	410419063	RHD POWER STEERING	410419063 RHD POWER STEERING	$4,500.53	1
033	8401408	WASHER IN STOCK	8401408 WASHER RONDELLA IN STOCK	$0.81 MSRP: ~~7.22~~ (88.8% off)	2
034	4331582	U-BOLT	4331582 U-BOLT CAVALLOTTO	$317.73	1
035	4033458	SCREW	4033458 SCREW RACCORDO	-	1	Enquire
036	5124347	SCREW	5124347 SCREW RACCORDO	-	1	Enquire
