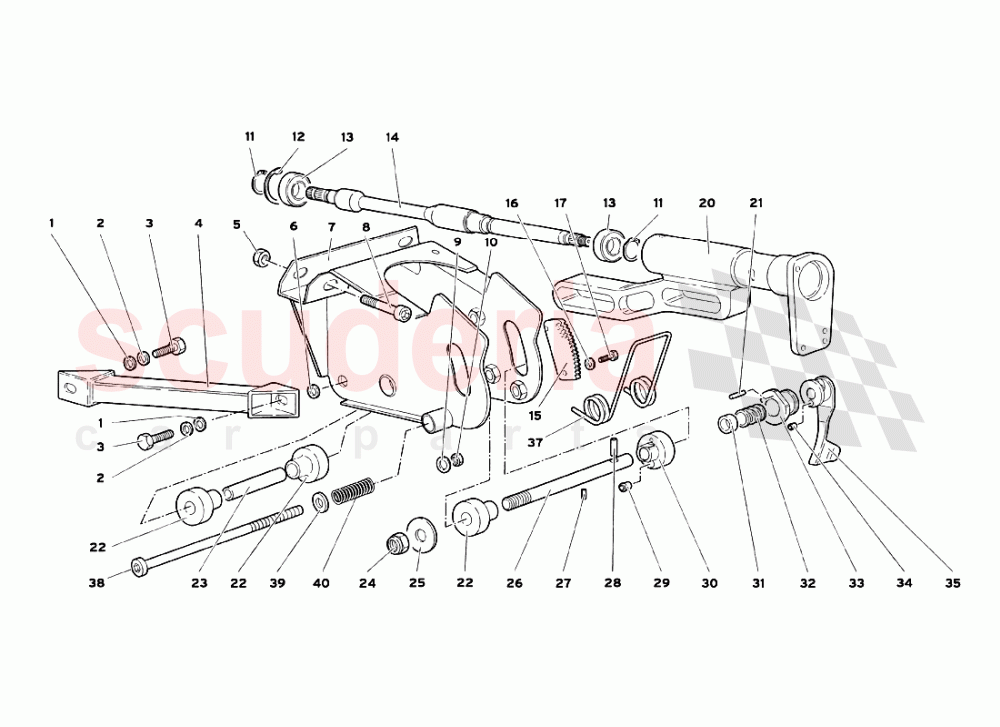

Lamborghini Diablo SV (1999) - Steering 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	2
002	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	2
003	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
004	4337924	STRUT	4337924 STRUT PUNTONE	$152.30 MSRP: ~~166.00~~ (8.3% off)	1
005	8200824	NUT	8200824 NUT DADO	$0.43 MSRP: ~~7.31~~ (94.1% off)	2
006	410407295	1.0 MM ADJUSTMENT SHIM	410407295 1.0 MM ADJUSTMENT SHIM SPESSORE Dl REGfSTtO	$4.26	1
007	43005340	SUPPORT - (Valid for GB - July 1999) SUPPORTO	43005340 SUPPORT - (Valid for GB - July 1999) SUPPORTO (Valid for GB - July 1999) O	$423.43 MSRP: ~~459.00~~ (7.7% off)	1
007	43004072	SUPPORT - SUPPORTO	43004072 SUPPORT - SUPPORTO O	$402.68 MSRP: ~~438.00~~ (8.1% off)	1
007	43005340	SUPPORT - (Valid for GB - July 1999) SUPPORTO	43005340 SUPPORT - (Valid for GB - July 1999) SUPPORTO (Valid for AUSTRALIA - July 1999) O	$423.43 MSRP: ~~459.00~~ (7.7% off)	1
008	8700830	SCREW	8700830 SCREW VITE	$0.64 MSRP: ~~7.28~~ (91.2% off)	2
009	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	1
010	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	1
011	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	2
012	8573701	RETAINING RING	8573701 RETAINING RING ANELLO RITEGNO	$0.59 MSRP: ~~7.26~~ (91.9% off)	1
013	8502011	BEARING	8502011 BEARING CUSCINETTO	$58.55	2
014	43002199	SMALL SHAFT	43002199 SMALL SHAFT ALBERINO	$124.61 MSRP: ~~135.00~~ (7.7% off)	1
015	4337941	TOOTHED STRIKER	4337941 TOOTHED STRIKER RISCONTRO DENTATO	$53.44 MSRP: ~~60.10~~ (11.1% off)	1
016	WHT001187	WASHER IN STOCK	WHT001187 WASHER RONDELLA IN STOCK	$0.76 MSRP: ~~7.26~~ (89.5% off)	2
017	8700522	SCREW	8700522 SCREW VITE	$0.39 MSRP: ~~7.31~~ (94.7% off)	2
018	8502011	BEARING	8502011 BEARING CUSCINETTO	$58.55	1
019	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	1
020	43002200	S. COLUMN SUPPORT	43002200 S. COLUMN SUPPORT SUPPORTO PIANTONE GUIDA	$1,071.86 MSRP: ~~1,205.00~~ (11% off)	1
021	4338318	PIN	4338318 PIN SA	$9.52 MSRP: ~~10.60~~ (10.2% off)	1
022	4337939	SPACER	4337939 SPACER DISTANZIALE	$41.53 MSRP: ~~46.65~~ (11% off)	3
023	4337944	BUSHING	4337944 BUSHING BOCCOLA	$51.81 MSRP: ~~58.30~~ (11.1% off)	1
024	8201231	NUT	8201231 NUT DADO	$1.34 MSRP: ~~7.11~~ (81.2% off)	1
025	410407295D	WASHER	410407295D WASHER RONDELLA	$27.63	1
026	4337942	PIN	4337942 PIN PERNO	$296.82	1
027	8900408	PIN - SPINA	8900408 PIN - SPINA SA	-	1	Enquire
028	4338065	PIN	4338065 PIN SA	$6.94 MSRP: ~~7.70~~ (9.9% off)	1
029	4338060	POSITION BALL	4338060 POSITION BALL SFERA Dl POSIZIONE	$30.41 MSRP: ~~34.15~~ (11% off)	1
030	4337946	SPACER	4337946 SPACER DISTANZIALE	$231.91 MSRP: ~~260.00~~ (10.8% off)	1
031	4337952	WASHER	4337952 WASHER RONDELLA	$46.22 MSRP: ~~52.00~~ (11.1% off)	1
032	4337947	SPRING	4337947 SPRING MOLLA	$11.50 MSRP: ~~12.85~~ (10.5% off)	1
033	4337948	TOOTHED TAPPET	4337948 TOOTHED TAPPET BICCHIERE DENTATO	$134.43 MSRP: ~~150.00~~ (10.4% off)	1
034	9907111	POSITION BALL	9907111 POSITION BALL SFERA Dl POSIZIONE	$9.98 MSRP: ~~11.20~~ (10.9% off)	1
035	4338317	LEVER	4338317 LEVER LEVA	$669.19 MSRP: ~~752.00~~ (11% off)	1
036	8100824	SCREW	8100824 SCREW VITE	$1.28 MSRP: ~~7.13~~ (82% off)	1
037	43004084	SPRING	43004084 SPRING MOLLA	$136.73 MSRP: ~~153.50~~ (10.9% off)	1
038	8700694	SCREW	8700694 SCREW VITE	$1.33 MSRP: ~~7.17~~ (81.5% off)	1
039	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
040	9414416	SPRING	9414416 SPRING MOLLA	$17.42 MSRP: ~~19.60~~ (11.1% off)	1
