Handbrake

Lamborghini Diablo SV (1999)

Find Your Part

Lamborghini Diablo SV (1999) - Handbrake

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

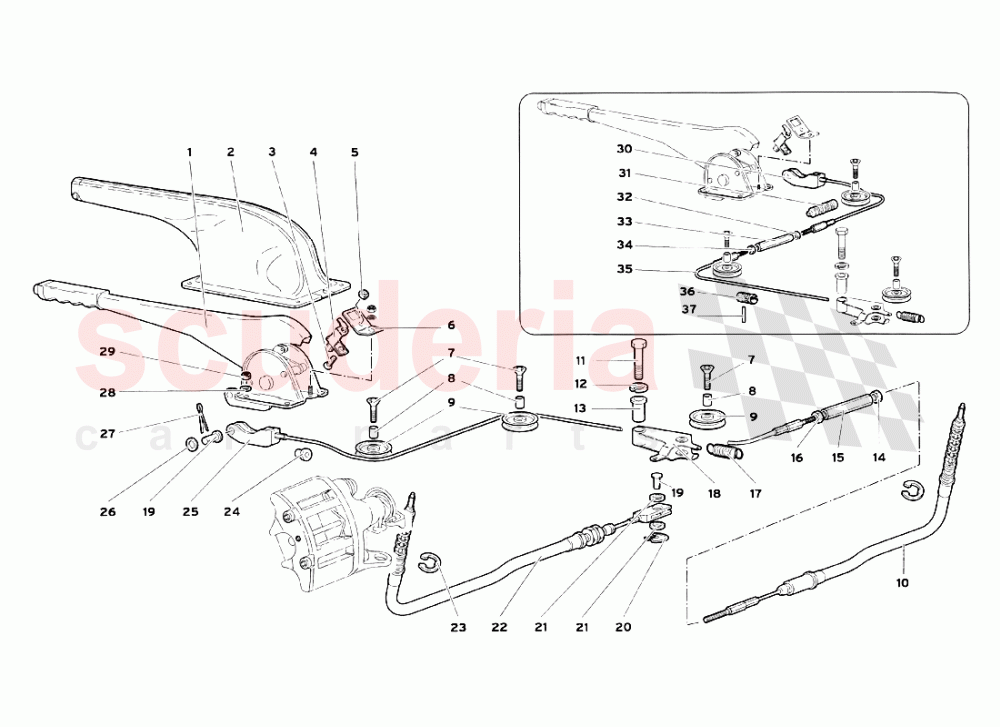

Handbrake of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 33000780
HANDBRAKE LEVER
LEVA FRENO A MANO 		- 1 Enquire
002 78001360
COVERING
RIVESTIMENTO 		$150.44 (8.5% off) 1
003 WHT002756
SCREW 		- 1 Enquire
004 3336007
BUTTON
PULSANTE 		$26.79 (11% off) 1
005 WHT002959
CLAMPING NUT
DADO
IN STOCK 		$0.77 (89.4% off) 1
006 3335993
SUPPORT - SUPPORTO
O 		- 1 Enquire
007 8700851
SCREW
VITE 		$0.77 (89.4% off) 3
008 3330827
BUSHING
BOCCOLA 		- 3 Enquire
009 3332512
PULLEY
CARRUCOLA 		- 3 Enquire
010 33001133
RIGHT TIE ROD
TIRANTE DX 		$205.78 1
011 8101407
SCREW M14X55
VITE 		$4.96 (9% off) 1
012 8411404
WASHER
RONDELLA 		$0.46 (93.7% off) 1
013 3330828
SPACER
DISTANZIALE 		- 1 Enquire
014 8200607
NUT M6
DADO 		$11.87 (10.8% off) 1
015 413609206
ADJUSTING SLEEVE
(Valid for R.H.D. version - April 1994) REGISTRO 		$61.12 1
016 N01100632
NUT M6
DADO 		$4.20 (42.7% off) 1
017 3330829
SPRING
MOLLA 		- 1 Enquire
018 3333935
ROCKER
O 		- 1 Enquire
019 410609789
JOURNAL
PERNO 		$28.71 2
020 410713299
CLIP
COPPIGLIA
IN STOCK 		$0.39 (94.7% off) 1
021 N0122094
WASHER
RONDELLA
IN STOCK 		$1.44 (79.9% off) 2
022 33001131
LEFT TIE ROD
TIRANTE SX 		$267.65 1
023 WHT003586
RETAINING RING
ANELLO RITEGNO
IN STOCK 		$0.63 (91.4% off) 2
024 3330880
RUBBER BUSHING
BOCCOLA COMMA 		- 1 Enquire
025 33001129
TIE ROD
TIRANTE 		$361.77 1
026 N0122094
WASHER
RONDELLA
IN STOCK 		$1.44 (79.9% off) 1
027 8820201
SPLIT PIN
COPIGLIA 		$6.06 (8.2% off) 1
028 N01152427
WASHER
RONDELLA
IN STOCK 		$0.28 4
029 N01118312
HEXAGON NUT, SELF-LOCKING
DADO
IN STOCK 		$2.07 4
030 33001472
TIE ROD
(Valid for AUSTRALIA - July 1999) TIRANTE 		$334.19 1
030 33001472
TIE ROD
(Valid for GB - July 1999) TIRANTE 		$334.19 1
031 3332748
SHIELD
(Valid for GB - July 1999) PROTEZIONE 		$2.61 (8.4% off) 1
031 3332748
SHIELD
(Valid for AUSTRALIA - July 1999) PROTEZIONE 		$2.61 (8.4% off) 1
032 8200607
NUT M6
(Valid for AUSTRALIA - July 1999) DADO 		$11.87 (10.8% off) 1
032 8200607
NUT M6
(Valid for GB - July 1999) DADO 		$11.87 (10.8% off) 1
033 413609206
ADJUSTING SLEEVE
(Valid for R.H.D. version - April 1994) REGISTRO 		$61.12 2
034 N01100632
NUT M6
(Valid for GB - July 1999) DADO 		$4.20 (42.7% off) 1
034 N01100632
NUT M6
(Valid for AUSTRALIA - July 1999) DADO 		$4.20 (42.7% off) 1
035 3332749
TIE ROD
(Valid for AUSTRALIA - July 1999) TIRANTE 		$103.05 (11.2% off) 1
035 3332749
TIE ROD
(Valid for GB - July 1999) TIRANTE 		$103.05 (11.2% off) 1
036 3330824
BUSHING
(Valid for AUSTRALIA - July 1999) BOCCOLA 		- 1 Enquire
036 3330824
BUSHING
(Valid for GB - July 1999) BOCCOLA 		- 1 Enquire
037 8900204
PIN
(Valid for GB - July 1999) SA 		$0.15 (98% off) 1
037 8900204
PIN
(Valid for AUSTRALIA - July 1999) SA 		$0.15 (98% off) 1
