Front Brakes of Lamborghini Lamborghini Diablo SV (1999)

View All

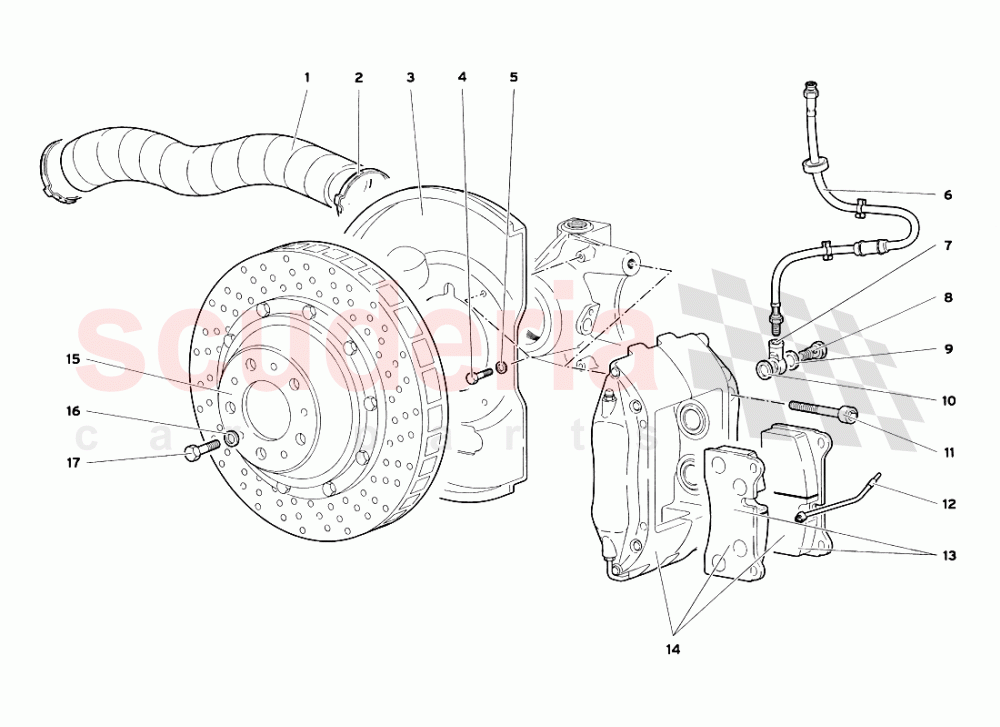

Lamborghini Diablo SV (1999) - Front Brakes

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9453133	PIPE	9453133 PIPE TUBO FLESSIBILE	$227.88	2
002	8837501	STRAP	8837501 STRAP FASCETTA	$15.93	4
003	31001183	RIGHT CONVEYOR	31001183 RIGHT CONVEYOR CONVOGLIATORE DX	$380.55 MSRP: ~~425.00~~ (10.5% off)	1
003	31001180	LEFT CONVEYOR	31001180 LEFT CONVEYOR CONVOGLIATORE SX	$380.55 MSRP: ~~425.00~~ (10.5% off)	1
004	N01020717	SCREW M5X12 IN STOCK	N01020717 SCREW M5X12 VITE IN STOCK	$1.25 MSRP: ~~7.31~~ (82.9% off)	6
005	8410503	WASHER	8410503 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	6
006	3229882	PIPE IN STOCK	3229882 PIPE TUBO FLESSIBILE IN STOCK	$160.69 MSRP: ~~174.50~~ (7.9% off)	2
007	31003992	CONNECTION	31003992 CONNECTION RACCORDO	$44.95 MSRP: ~~50.40~~ (10.8% off)	2
008	31003991	SCREW	31003991 SCREW VITE FORATA	-	2	Enquire
009	8401022	WASHER	8401022 WASHER RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	2
010	3113906	WASHER	3113906 WASHER RONDELLA	$19.32	2
011	8701224	SCREW	8701224 SCREW VITE	$14.93 MSRP: ~~16.65~~ (10.3% off)	4
012	3135643	ELECT CABLE	3135643 ELECT CABLE CAVO ELETTRICO	$28.76	2
013	32000561	Brake Pads Kit	32000561 Brake Pads Kit KIT PASTIGLIE FRENO	$924.19	1
014	31001456	LEFT BRAKE CALIPER	31001456 LEFT BRAKE CALIPER PINZA FRENI SX	$1,047.94 MSRP: ~~1,135.00~~ (7.7% off)	1
014	31001457	RIGHT BRAKE CALIP.	31001457 RIGHT BRAKE CALIP. PINZA FRENI DX	$1,047.94 MSRP: ~~1,135.00~~ (7.7% off)	1
015	31016759	Brake Disc	31016759 Brake Disc (355 mm diameter)	$2,255.04	2
016	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	6
017	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.26 MSRP: ~~7.23~~ (68.7% off)	6
