Lamborghini Diablo SV (1999) - Rear Coque Elements (Alternative To Table 66.01.00)

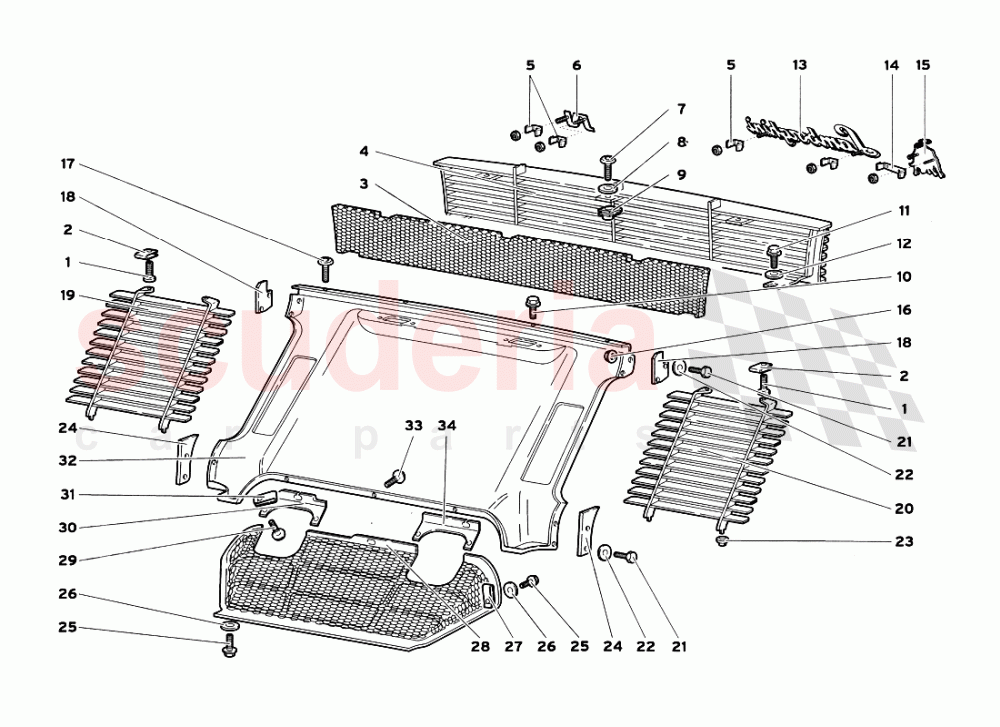

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8700437	SCREW	8700437 SCREW (Alternative to table 66_01_00) VITE	-	4	Enquire
002	WHT000916A	CLIP	WHT000916A CLIP (Alternative to table 66_01_00) MOLLETTA	$14.45	4
003	9430159	NET	9430159 NET (Alternative to table 66_01_00) RETE	$230.12	1
004	66004330	GRILLE	66004330 GRILLE (Alternative to table 66_01_00) GRIGLIA	$2,644.15	1
005	66003563	SUPPORT - (Alternative to table 66_01_00) SUPPORTO	66003563 SUPPORT - (Alternative to table 66_01_00) SUPPORTO (Alternative to table 66_01_00) O	$11.64 MSRP: ~~12.75~~ (8.7% off)	4
007	8740685	SCREW IN STOCK	8740685 SCREW (Alternative to table 66_01_00) VITE IN STOCK	$19.92	3
008	8400624	WASHER	8400624 WASHER (Alternative to table 66_01_00) RONDELLA	$4.45	3
009	N90327506	SPEED NUT IN STOCK	N90327506 SPEED NUT (Alternative to table 66_01_00) MOLLETTA IN STOCK	$1.23	3
010	N10718801	HEX COLLARED BOLT IN STOCK	N10718801 HEX COLLARED BOLT (Alternative to table 66_01_00) VITE IN STOCK	$1.69	2
011	8700444	SCREW IN STOCK	8700444 SCREW (Alternative to table 66_01_00) VITE IN STOCK	$0.12 MSRP: ~~7.37~~ (98.4% off)	2
012	N91109201	WASHER IN STOCK	N91109201 WASHER (Alternative to table 66_01_00) RONDELLA IN STOCK	$1.62 MSRP: ~~5.85~~ (72.3% off)	2
014	63004142	SUPPORT - (Alternative to table 66_01_00) SUPPORTO	63004142 SUPPORT - (Alternative to table 66_01_00) SUPPORTO (Alternative to table 66_01_00) O	-	1	Enquire
016	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT (Alternative to table 66_01_00) DADO IN STOCK	$0.19	4
017	8740685	SCREW IN STOCK	8740685 SCREW (Alternative to table 66_01_00) VITE IN STOCK	$19.92	2
018	9410205	SPACER	9410205 SPACER (Alternative to table 66_01_00) DISTANZIALE	$11.57	2
019	9430103	RIGHT GRILLE	9430103 RIGHT GRILLE (Alternative to table 66_01_00) GRIGLIA DX	$3,316.98	1
020	9430168	GRILLE	9430168 GRILLE (Alternative to table 66_01_00) GRIGLIA SX	$893.33	1
021	8100621	SCREW M6 X 20 UNI 5739/5S/Z IN STOCK	8100621 SCREW M6 X 20 UNI 5739/5S/Z (Alternative to table 66_01_00) VITE IN STOCK	$0.11 MSRP: ~~7.37~~ (98.5% off)	8
022	WHT002961	WASHER IN STOCK	WHT002961 WASHER (Alternative to table 66_01_00) RONDELLA IN STOCK	$0.39	8
023	66002463	BUSHING	66002463 BUSHING (Alternative to table 66_01_00) BOCCOLA	$3.19 MSRP: ~~3.50~~ (8.9% off)	4
024	9410206	SPACER	9410206 SPACER (Alternative to table 66_01_00) DISTANZIALE	$46.56	2
025	8700449	SCREW IN STOCK	8700449 SCREW (Alternative to table 66_01_00) VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	4
026	N91115501	WASHER	N91115501 WASHER (Alternative to table 66_01_00) RONDELLA	$1.16 MSRP: ~~7.33~~ (84.2% off)	4
027	N90834301	CLIP NUT IN STOCK	N90834301 CLIP NUT IN STOCK	$1.19	2
028	9430145	GRILL	9430145 GRILL (Alternative to table 66_01_00) GRIGLIA	$3,384.26	1
029	N91049601	OVAL HEAD PANEL SCREW (COMBI) IN STOCK	N91049601 OVAL HEAD PANEL SCREW (COMBI) (Alternative to table 66_01_00) VITE IN STOCK	$0.95 MSRP: ~~7.31~~ (87% off)	4
030	9430144	RIGHT PLATE	9430144 RIGHT PLATE (Alternative to table 66_01_00) LAMIERINO DX	$39.52 MSRP: ~~42.80~~ (7.7% off)	1
031	8220402	CLIP	8220402 CLIP (Alternative to table 66_01_00) MOLLETTA	$4.10 MSRP: ~~7.12~~ (42.4% off)	4
032	9410200	REAR PANEL	9410200 REAR PANEL (Alternative to table 66_01_00) ELEMENTO SCOCCA POSTERIORE	$1,793.54 MSRP: ~~1,950.00~~ (8% off)	1
033	8740685	SCREW IN STOCK	8740685 SCREW (Alternative to table 66_01_00) VITE IN STOCK	$19.92	3
034	94320146	LEFT PLATE	94320146 LEFT PLATE (Alternative to table 66_01_00) LAMIERINO SX	-	1	Enquire
