Rear Coque Elements (Alternative To Table 66.01.01)

Lamborghini Diablo SV (1999)

Find Your Part

Lamborghini Diablo SV (1999) - Rear Coque Elements (Alternative To Table 66.01.01)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

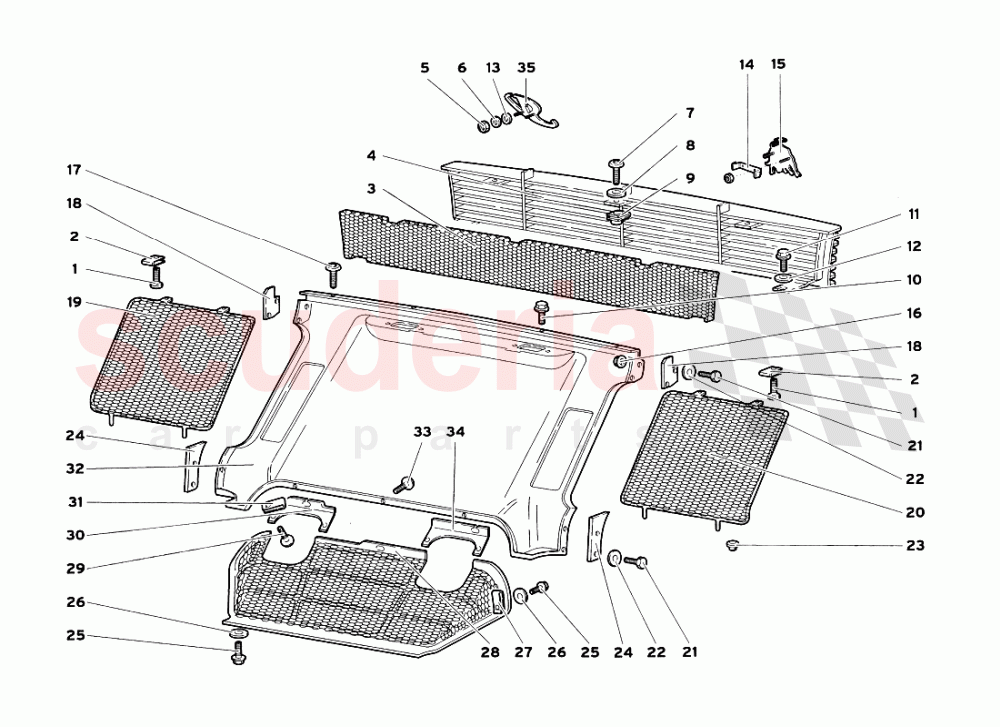

Rear Coque Elements (Alternative To Table 66.01.01) of Lamborghini Lamborghini Diablo SV (1999) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8700437
SCREW
(Alternative to table 66_01_01) VITE 		- 4 Enquire
002 WHT000916A
CLIP
(Alternative to table 66_01_01) MOLLETTA 		$14.57 4
003 9430159
NET
(Alternative to table 66_01_01) RETE 		$232.04 1
004 66004330
GRILLE
(Alternative to table 66_01_01) GRIGLIA 		$2,666.22 1
005 8200302
NUT
(Alternative to table 66_01_01) DADO
IN STOCK 		$0.15 2
006 8410307
WASHER
(Alternative to table 66_01_01) RONDELLA 		$1.53 2
007 8740685
SCREW
(Alternative to table 66_01_01) VITE
IN STOCK 		$20.08 3
008 8400624
WASHER
(Alternative to table 66_01_01) RONDELLA 		$4.48 3
009 N90327506
SPEED NUT
(Alternative to table 66_01_01) MOLLETTA
IN STOCK 		$1.24 3
010 N10718801
HEX COLLARED BOLT
(Alternative to table 66_01_01) VITE
IN STOCK 		$1.70 2
011 8700444
SCREW
(Alternative to table 66_01_01) VITE
IN STOCK 		$0.13 (98.2% off) 2
012 N91109201
WASHER
(Alternative to table 66_01_01) RONDELLA
IN STOCK 		$1.63 (72.1% off) 2
013 8400303
WASHER
(Alternative to table 66_01_01) RONDELLA
IN STOCK 		$0.04 2
014 63004142
SUPPORT - (Alternative to table 66_01_00) SUPPORTO
(Alternative to table 66_01_01) O 		- 1 Enquire
016 N01508213
HEXAGON COLLAR NUT
(Alternative to table 66_01_01) DADO
IN STOCK 		$0.19 4
017 8740685
SCREW
(Alternative to table 66_01_01) VITE
IN STOCK 		$20.08 2
018 9410205
SPACER
(Alternative to table 66_01_01) DISTANZIALE 		$11.67 2
019 9430167
NET
(Alternative to table 66_01_01) RETE DX 		$900.79 1
020 9430168
GRILLE
(Alternative to table 66_01_01) RETE SX 		$900.79 1
021 8100621
SCREW M6 X 20 UNI 5739/5S/Z
(Alternative to table 66_01_01) VITE
IN STOCK 		$0.11 (98.5% off) 8
022 WHT002961
WASHER
(Alternative to table 66_01_01) RONDELLA
IN STOCK 		$0.39 8
023 66002463
BUSHING
(Alternative to table 66_01_01) BOCCOLA 		$3.22 (8% off) 4
024 9410206
SPACER
(Alternative to table 66_01_01) DISTANZIALE 		$46.95 2
025 8700449
SCREW
(Alternative to table 66_01_01) VITE
IN STOCK 		$2.80 (62% off) 4
026 N91115501
WASHER
(Alternative to table 66_01_01) RONDELLA 		$1.17 (84% off) 4
027 N90834301
CLIP NUT
IN STOCK 		$1.20 2
028 9430145
GRILL
(Alternative to table 66_01_01) GRIGLIA 		$3,412.50 1
029 N91049601
OVAL HEAD PANEL SCREW (COMBI)
(Alternative to table 66_01_01) VITE
IN STOCK 		$0.96 (86.9% off) 4
030 9430144
RIGHT PLATE
(Alternative to table 66_01_01) LAMIERINO DX 		$39.85 (6.9% off) 1
031 8220402
CLIP
(Alternative to table 66_01_01) MOLLETTA 		$4.14 (41.9% off) 4
032 9410200
REAR PANEL
(Alternative to table 66_01_01) ELEMENTO SCOCCA PQSTERfORE 		$1,808.51 (7.3% off) 1
033 8740685
SCREW
(Alternative to table 66_01_01) VITE
IN STOCK 		$20.08 3
034 94320146
LEFT PLATE
(Alternative to table 66_01_01) LAMIERINO SX 		- 1 Enquire
