Electrical System 3 of Lamborghini Lamborghini Diablo SV (1998)

View All

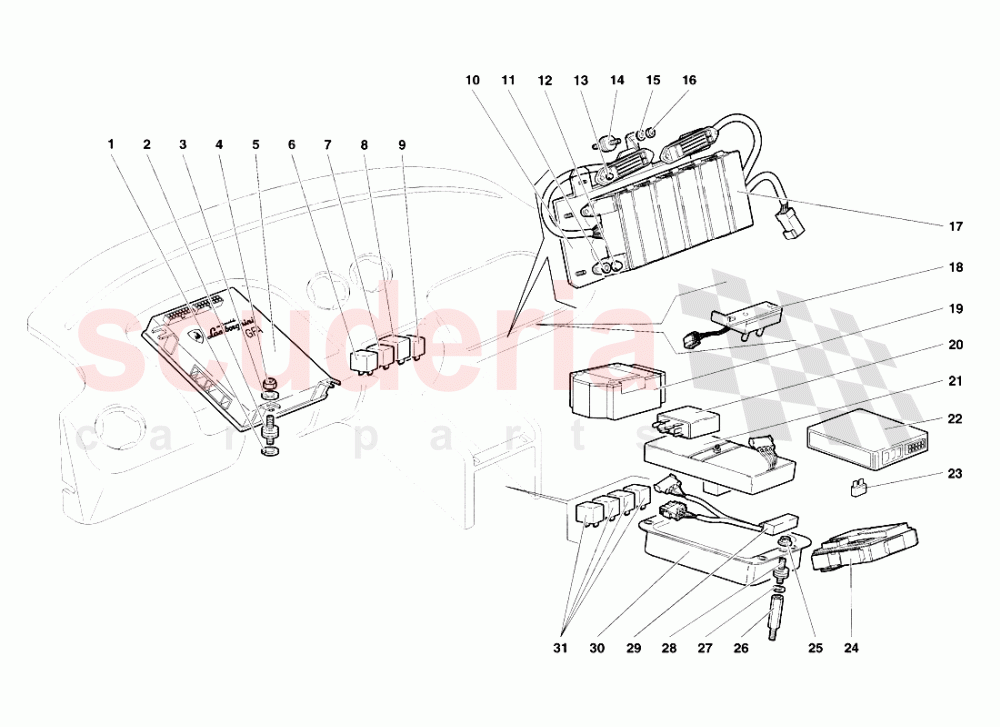

Lamborghini Diablo SV (1998) - Electrical System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	3
002	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$13.80	3
003	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	3
004	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	3
005	20001193	E.C.U. GFA	20001193 E.C.U. GFA CENTRALINA GFA	$5,693.36	1
005	20001194	E.C.U. GFA	20001194 E.C.U. GFA (Valid for USA - November 1998) CENTRALINA GFA	-	1	Enquire
005	20001497	E.C.U. GFA	20001497 E.C.U. GFA (Valid for ARABIA - November 1998) CENTRALINA GFA	$9,765.00	1
005	20001497	E.C.U. GFA	20001497 E.C.U. GFA (Valid for DUBAI - November 1998) CENTRALINA GFA	$9,765.00	1
006	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 RELE ALIMENT. HAZARD	$53.86	1
007	6036297	RELAY	6036297 RELAY RELE ALIMENT. +15/30 HAZARD	$37.43 MSRP: ~~41.90~~ (10.7% off)	1
008	6030676	RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10	6030676 RELAY - (Valid for R.H.D. version - April 1994) RELAY ITALAMEC 424.10 RELE INTERMITTENZA	$147.12 MSRP: ~~160.00~~ (8.1% off)	1
009	6036296	RELAY	6036296 RELAY RELE CLACSON	$19.75 MSRP: ~~22.10~~ (10.6% off)	1
010	6135155	SUPPORT - SUPPORTO	6135155 SUPPORT - SUPPORTO O	$134.97	1
011	8400620	WASHER	8400620 WASHER RONDELLA	$1.40 MSRP: ~~7.38~~ (81% off)	4
012	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.86	4
013	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.78 MSRP: ~~7.26~~ (89.3% off)	4
014	8920603	ELASTIC SUPPORT	8920603 ELASTIC SUPPORT SUPPORTO ELASTICO	-	1	Enquire
015	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	1
016	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	1
017	6137052	CASE	6137052 CASE SCATOLA RELE/FUSIBILI	$850.24 MSRP: ~~919.00~~ (7.5% off)	1
017	6137443	CASE	6137443 CASE (Valid for GB - November 1998) SCATOLA RELE/FUSIBILI	$1,068.02 MSRP: ~~1,155.00~~ (7.5% off)	1
017	6138342	CASE	6138342 CASE (Valid for USA - November 1998) SCATOLA RELE/FUSIBILI	$1,117.81 MSRP: ~~1,210.00~~ (7.6% off)	1
018	6136981	KONI - SWITCH	6136981 KONI - SWITCH (Comfort pack)INTERRUTTORE - KONI	$220.67 MSRP: ~~239.50~~ (7.9% off)	1
019	6037932	E.C.U. AIR BAG	6037932 E.C.U. AIR BAG CENTRALINA AIR BAG	$759.33	1
020	5929915	LOCKING E.C.U.	5929915 LOCKING E.C.U. CENTR. CHIUSURACENTR.	$414.90	1
021	6036175	LOW TIRE E.C.U.	6036175 LOW TIRE E.C.U. CENTRALINA LOW TIRE	$807.38 MSRP: ~~873.00~~ (7.5% off)	1
022	61001923	REMO. LOCKING E.C.U.	61001923 REMO. LOCKING E.C.U. COMANDO CHIUSURACENTR.	$667.20 MSRP: ~~721.00~~ (7.5% off)	1
023	1629258	FUSE	1629258 FUSE FUSIBILE20A	$0.57 MSRP: ~~7.28~~ (92.2% off)	1
024	593629	WINDOW LIFT E.C.U.	593629 WINDOW LIFT E.C.U. CENTRALINA ALZAVETRO	-	1	Enquire
025	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	2
026	1128397	STUD	1128397 STUD COLON N ETTA	$32.96 MSRP: ~~35.60~~ (7.4% off)	2
027	WHT002963	WASHER IN STOCK	WHT002963 WASHER RONDELLA IN STOCK	$0.12 MSRP: ~~7.38~~ (98.4% off)	2
028	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$13.80	2
029	6137314	LOW TIRE E. DEVICE	6137314 LOW TIRE E. DEVICE (Comfort pack) INTERFACCIA - LOW TIRE	$337.09 MSRP: ~~365.00~~ (7.6% off)	1
030	5134572	KONI E.C.U.	5134572 KONI E.C.U. (Comfort pack) CENTRALINA KONI	$2,102.45 MSRP: ~~2,340.00~~ (10.2% off)	1
031	6038007	RELAY	6038007 RELAY RELE	$11.42 MSRP: ~~12.35~~ (7.5% off)	3
032	6311155	RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006	6311155 RELAY - (Valid for R.H.D. version - April 1994) RELAY BOSCH 87B 0332.015.006 RELE	$53.86	1
