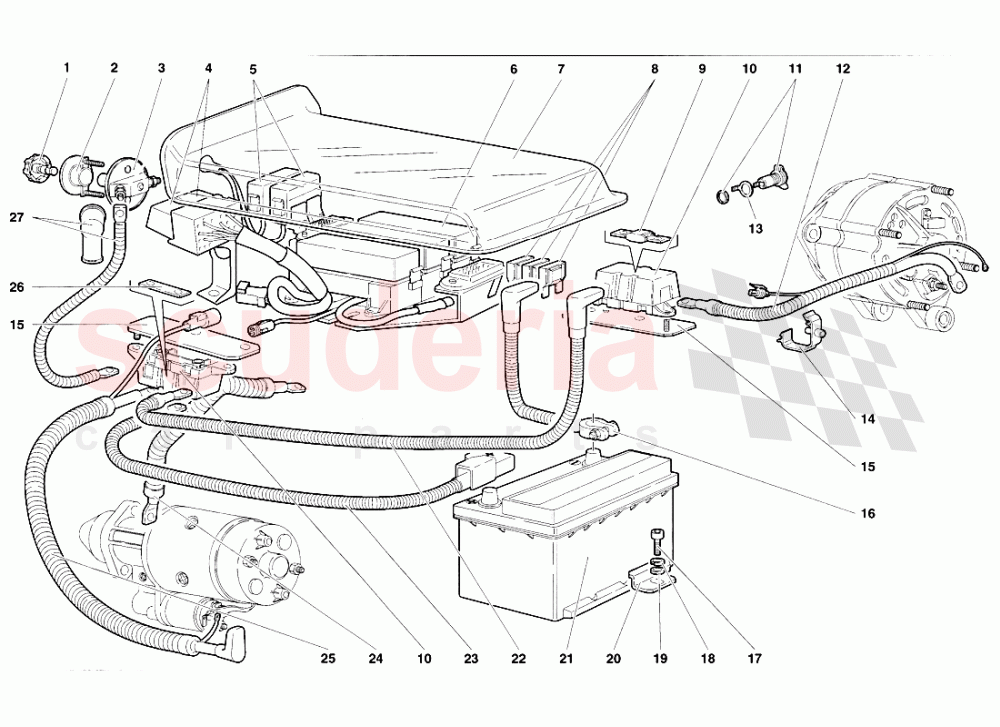

Lamborghini Diablo SV (1998) - Electrical System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5931167	KNOB	5931167 KNOB POMELLO	$83.59	1
002	5931299	FLANGE	5931299 FLANGE FLANGIA	$217.03 MSRP: ~~243.50~~ (10.9% off)	1
003	5931163	CONNECTING BLOCK	5931163 CONNECTING BLOCK STACCABATTERIA	$218.77	1
004	5937770	RELAY	5937770 RELAY RELE	$33.19 MSRP: ~~36.00~~ (7.8% off)	2
005	6137478	CASE	6137478 CASE SCATOLA MEGA FUSE	-	2	Enquire
006	6138338	CASE	6138338 CASE SCATOLA RELE/FUSE	$1,200.59	1
007	5937289	SHIELD	5937289 SHIELD PROTEZIONE	$157.00 MSRP: ~~176.50~~ (11% off)	1
008	6138010	MEGAFUSE	6138010 MEGAFUSE FUSIBILEDA80A	$46.66 MSRP: ~~50.60~~ (7.8% off)	2
008	6138009	MEGAFUSE	6138009 MEGAFUSE FUSIBILEDA50A	$46.66 MSRP: ~~50.60~~ (7.8% off)	1
009	6137479	FUSE	6137479 FUSE FUSIBILE	$11.92	1
010	6137478	CASE	6137478 CASE SCATOLA	-	2	Enquire
011	5936741	TAP BATTERY CHARG.	5936741 TAP BATTERY CHARG. PRESA PER CARICA BATTERIA	$16.74 MSRP: ~~18.20~~ (8% off)	1
012	6137477	ELECT CABLE	6137477 ELECT CABLE CAVO ELETTRICO	$74.91 MSRP: ~~81.20~~ (7.7% off)	1
013	5937868	GROUND CONNEC.	5937868 GROUND CONNEC. LINGUETTA PER PR. CARICA BATT.	$16.16 MSRP: ~~18.05~~ (10.5% off)	1
014	8832006	STRAP	8832006 STRAP FASCETTA	$2.78 MSRP: ~~2.95~~ (5.8% off)	3
015	5937655	SUPPORT - SUPPORTO	5937655 SUPPORT - SUPPORTO O	-	2	Enquire
016	6136784	GROUND CABLE	6136784 GROUND CABLE CAVO MASSA	$80.00 MSRP: ~~86.90~~ (7.9% off)	1
017	8700815	SCREW IN STOCK	8700815 SCREW VITE IN STOCK	$0.19 MSRP: ~~7.36~~ (97.4% off)	1
018	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	1
019	8410819	WASHER	8410819 WASHER RONDELLA	$2.13 MSRP: ~~2.40~~ (11.3% off)	1
020	4130608	PLATE	4130608 PLATE STAFFA	$30.23	1
021	1624948	BATTERY	1624948 BATTERY BATTERIA	$1,068.04	1
022	6137474	ELECT CABLE	6137474 ELECT CABLE CAVO ELETTRICO	$88.79 MSRP: ~~96.20~~ (7.7% off)	1
023	6137475	ELECT CABLE	6137475 ELECT CABLE CAVO ELETTRICO	$238.40	1
024	6135923	GROUND CABLE	6135923 GROUND CABLE CAVO MASSA	$76.07 MSRP: ~~82.60~~ (7.9% off)	1
025	6137473	ELECT CABLE	6137473 ELECT CABLE CAVO ELETTRICO	$173.04	1
026	6137471	CONNECTION	6137471 CONNECTION CONNESSIONE	-	1	Enquire
027	6137476	ELECT CABLE	6137476 ELECT CABLE CAVO ELETTRICO	$67.07 MSRP: ~~72.60~~ (7.6% off)	1
