Engine Oil System of Lamborghini Lamborghini Diablo SV (1998)

View All

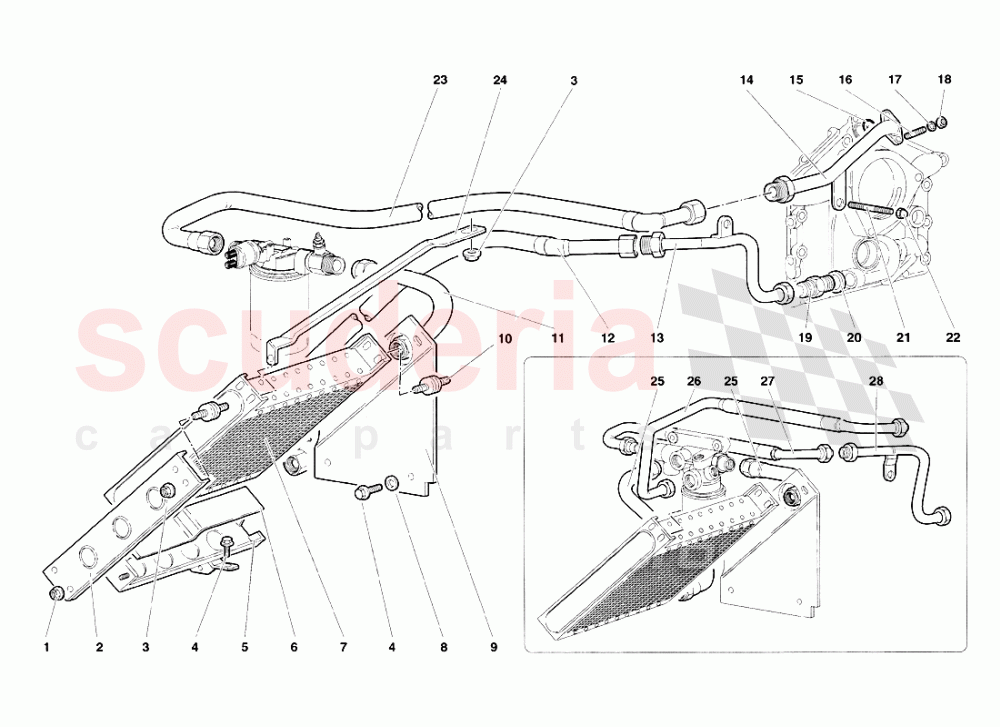

Lamborghini Diablo SV (1998) - Engine Oil System

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
002	4138030	BRACKET	4138030 BRACKET STAFFA	$27.01 MSRP: ~~29.30~~ (7.8% off)	1
003	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT DADO IN STOCK	$0.19	5
004	N90319404	SCREW IN STOCK	N90319404 SCREW VITE IN STOCK	$2.07	5
005	4138033	SUPPORT - SUPPORTO	4138033 SUPPORT - SUPPORTO O	$190.53	1
006	410813585	RUBBER WEATHER-	410813585 RUBBER WEATHER- PROFILATO GOMMA	$13.13	1
007	7M117021	OIL RADIATOR	7M117021 OIL RADIATOR RADIATORE OLIO	$4,032.14	1
008	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
009	4138040	SUPPORT - SUPPORTO	4138040 SUPPORT - SUPPORTO O	$63.30	1
010	8920602	FLEXIBLE SUPPORT	8920602 FLEXIBLE SUPPORT SUPPORTO ELASTICO	$13.75	2
011	15001970	FLEX. HOSE	15001970 FLEX. HOSE TUBO FLESSIBILE	$819.99	1
012	1535076	FLEX. HOSE	1535076 FLEX. HOSE TUBO FLESSIBILE	$883.28	1
013	1537686	PIPE	1537686 PIPE TUBO	$91.28	1
014	1535967	PIPE	1535967 PIPE TUBO	$117.13 MSRP: ~~127.00~~ (7.8% off)	1
015	WHT003062	SEAL RING	WHT003062 SEAL RING ANELLO TENUTA	$6.19	1
016	8300828	STUD	8300828 STUD PRIGIONIERO	-	2	Enquire
017	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.11	2
018	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.93	2
019	400115707	CONNECTOR	400115707 CONNECTOR RACCORDO	$32.06	1
020	WHT000674	WASHER IN STOCK	WHT000674 WASHER RONDELLA IN STOCK	$2.50 MSRP: ~~7.04~~ (64.5% off)	1
021	8300905	STUD	8300905 STUD PRIGIONIERO	$17.30 MSRP: ~~19.45~~ (11.1% off)	1
022	8200816	NUT	8200816 NUT DADO	$4.78	1
023	1535078	PIPE	1535078 PIPE TUBO	$585.71	1
024	4138028	TIE ROD	4138028 TIE ROD TIRANTE	$90.36	1
025	15001970	FLEX. HOSE	15001970 FLEX. HOSE (Valid for CANADA - November 1998) TUBO FLESSIBILE	$819.99	2
025	15001970	FLEX. HOSE	15001970 FLEX. HOSE (Valid for USA - November 1998) TUBO FLESSIBILE	$819.99	2
026	1535966	PIPE	1535966 PIPE (Valid for USA - November 1998) TUBO	$253.07	1
026	1535966	PIPE	1535966 PIPE (Valid for CANADA - November 1998) TUBO	$253.07	1
027	1535965	PIPE	1535965 PIPE (Valid for USA - November 1998) TUBO	$477.91	1
027	1535965	PIPE	1535965 PIPE (Valid for CANADA - November 1998) TUBO	$477.91	1
028	1537292	PIPE	1537292 PIPE (Valid for USA - November 1998) TUBO	$358.94 MSRP: ~~402.00~~ (10.7% off)	1
028	1537292	PIPE	1537292 PIPE (Valid for CANADA - November 1998) TUBO	$358.94 MSRP: ~~402.00~~ (10.7% off)	1
