Engine Oil Pump

Lamborghini Diablo SV (1998)

Find Your Part

Lamborghini Diablo SV (1998) - Engine Oil Pump

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

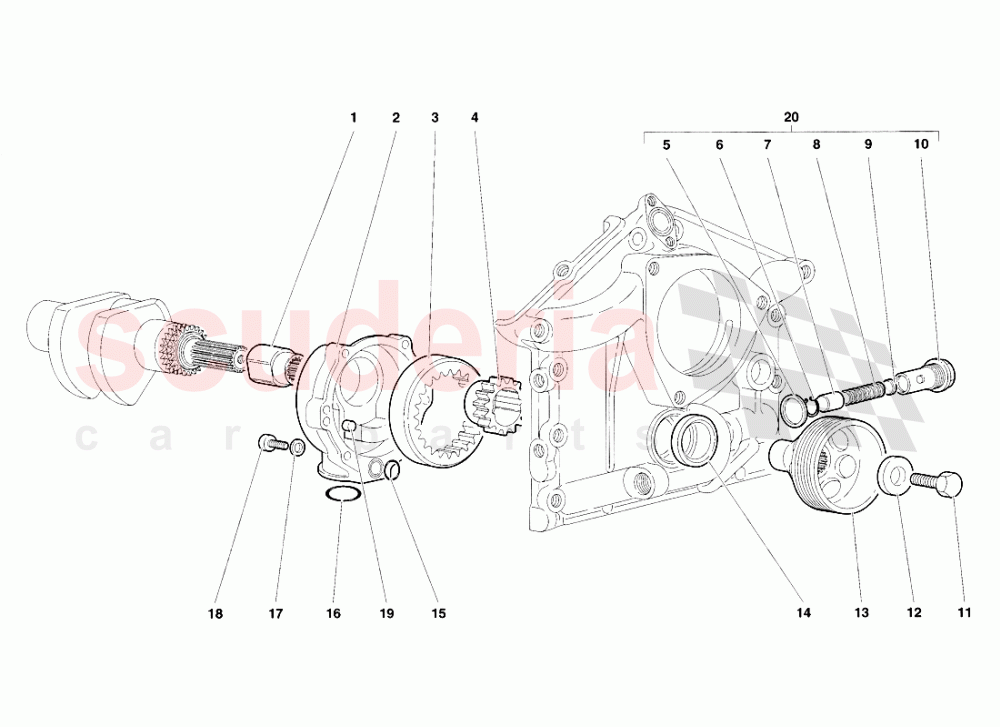

Engine Oil Pump of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1532187
COUPLING
GIUNTO 		$213.74 (7.5% off) 1
002 1532874
COVER
COPERCHIO 		$2,777.59 1
003 1528526
DRIVEN GEAR
INGRANAGGIO CONDOTTO 		$4,356.09 1
004 1528525
GEAR
INGRANAGGIO CONDUTTORE 		$506.87 1
005 WHT000674
WASHER
RONDELLA
IN STOCK 		$2.51 (64.3% off) 1
006 8571901
RETAINER RING
ANELLO RITEGNO 		$5.44 (9.3% off) 1
007 1232216
BUSHING
PISTONCINO 		$109.84 (7.7% off) 1
008 1519888
SPRING
MOLLA 		$23.35 (10.5% off) 1
009 1232217
SPACER
DISTANZIALE 		$6.31 (7.9% off) 5
010 1232215
BODY
CORPO VALV.REGOL.PRESS. 		$243.31 (7.5% off) 1
011 8101641
SCREW
VITE 		$253.15 1
012 1433466
WASHER
RONDELLA 		$91.25 1
013 1432192
PULLEY
PULEGGIA 		$1,750.34 1
014 8613702
SEAL
ANELLO TENUTA 		$54.00 (10.7% off) 1
015 8601705
SEAL
ANELLO TENUTA 		$0.44 (94% off) 1
016 8603503
SEAL RING
ANELLO TENUTA 		$3.88 1
017 8410602
WASHER
RONDELLA
IN STOCK 		$41.90 6
018 WHT003101
SCREW
VITE
IN STOCK 		$1.37 (81.1% off) 6
019 WHT003577
DOWEL
GRANO 		$1.68 (76.1% off) 2
020 15004602
VALVE ASSEMBLY
ASSIEME VALVOLATERMOSTATICA 		$474.99 (7.6% off) 1
