Lamborghini Diablo SV (1998) - Oil Sump

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

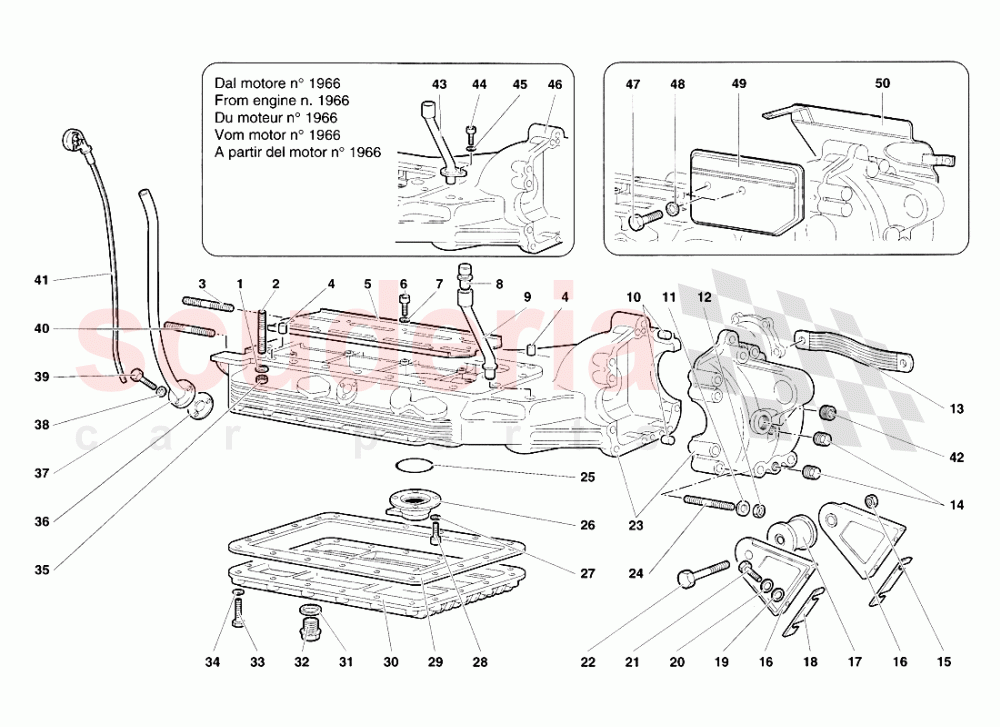

Oil Sump of Lamborghini Lamborghini Diablo SV (1998) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 WHT000771
WASHER
RONDELLA
IN STOCK 		$1.10 18
002 WHT003031
STUD BOLT
PRIGIONIERO 28 MM 		$9.07 8
002 8300806
STUD
PRIGIONIERO 70 MM 		$5.19 (8.9% off) 6
002 8300897
STUD
PRIGIONIERO 106 MM 		$13.86 (10.6% off) 4
003 WHT003028
THREADED PIN
PRIGIONIERO 		$20.71 1
004 8850806
DOWEL
GRANO 		- 2 Enquire
005 1827775
PLATE
PARATIA ANTISBATTIMENTO 		$79.42 (8.1% off) 1
006 8700644
SCREW
VITE 		$0.35 (95.2% off) 8
007 8410602
WASHER
RONDELLA
IN STOCK 		$41.68 8
008 B9507141
OIL BREATHER PIPE
SFIATO OLIO 		$64.78 1
009 2334402
PIPE
TUBO 		$253.53 1
010 8850806
DOWEL
GRANO 		- 2 Enquire
011 WHT000768
WASHER
IN STOCK 		$1.82 (75% off) 10
012 N10155210
NUT
DADO
IN STOCK 		$2.00 (72.4% off) 10
013 1604328
GROUND CABLE
CAVO MASSA 		- 2 Enquire
014 86301141A
MAGNETIC PLUG
TAPPO MAGNETICO 		$34.85 2
015 8201416
NUT
DADO 		$1.61 1
016 4126765
BRACKET
STAFFA 		$254.70 (11.3% off) 2
017 B9501144
support mount
IN STOCK 		$186.67 (2% off) 1
018 4126766
SPACER
SPESSORE Dl REGISTRO 		- 1 Enquire
019 8400801
WASHER
RONDELLA 		$0.63 4
020 N0152785
WASHER
RONDELLA
IN STOCK 		$0.44 4
021 8100862
SCREW
VITE 		$0.59 4
022 8101430
SCREW
VITE 		$3.28 (10.1% off) 1
023 450132001
OIL SUMP
COPPA OLIO LAVORATA 		$8,545.29 (7.9% off) 1
024 8301033
STUD
PRIGIONIERO 		$33.95 10
025 WHT002222
SEAL RING 		$12.31 1
026 1832017
FLANGE
FLANGIA 		$304.25 (7.8% off) 1
027 8410602
WASHER
RONDELLA
IN STOCK 		$41.68 4
028 8700644
SCREW
VITE 		$0.35 (95.2% off) 4
029 1826521
GASKET
GUARNIZIONE 		$115.81 1
030 1831852
LOWER COVER
COPERCHIO INFERIORE 		$514.94 1
031 8402202
WASHER
RONDELLA
IN STOCK 		$3.99 (10.3% off) 1
032 8932211
Drain Plug
TAPPO Dl SCARICO 		$24.00 1
033 8100603
SCREW
VITE 		$1.28 (82.6% off) 20
034 8410602
WASHER
RONDELLA
IN STOCK 		$41.68 20
035 N01100845
HEXAGON NUT
DADO
IN STOCK 		$1.93 18
036 1830006
GASKET
GUARNIZIONE 		$7.81 1
037 1837263
PIPE
TUBO PORTAASTA 		$96.36 (8.2% off) 1
038 8410602
WASHER
RONDELLA
IN STOCK 		$41.68 3
039 8100601
SCREW
VITE 		$0.25 3
040 8300808
STUD BOLT
use : WHT003027 		$5.64 2
041 1837261
LEVEL ROD
ASTALIVELLO 		$322.68 1
042 8932602
PLUG
TAPPO 		$3.28 (10.1% off) 1
043 23001636
PIPE
TUBO 		$81.46 (8% off) 1
044 8700547
SCREW
VITE
IN STOCK 		$0.15 (98% off) 1
045 8410503
WASHER
RONDELLA 		$0.18 (97.6% off) 1
046 18001707
OIL SUMP
COPPA OLIO 		- 1 Enquire
047 N0124032
SCREW
(Valid for CANADA - November 1998) VITE 		- 2 Enquire
047 N0124032
SCREW
(Valid for USA - November 1998) VITE 		- 2 Enquire
048 8400801
WASHER
(Valid for USA - November 1998) RONDELLA 		$0.63 2
048 8400801
WASHER
(Valid for CANADA - November 1998) RONDELLA 		$0.63 2
049 1836047
PLATE
(Valid for USA - November 1998) PARATIA 		$373.40 (8.3% off) 1
049 1836047
PLATE
(Valid for CANADA - November 1998) PARATIA 		$373.40 (8.3% off) 1
050 1836048
PLATE
(Valid for USA - November 1998) PARATIA 		$373.40 (8.3% off) 1
050 1836048
PLATE
(Valid for CANADA - November 1998) PARATIA 		$373.40 (8.3% off) 1
