Timing System 1 of Lamborghini Lamborghini Diablo SV (1998)

View All

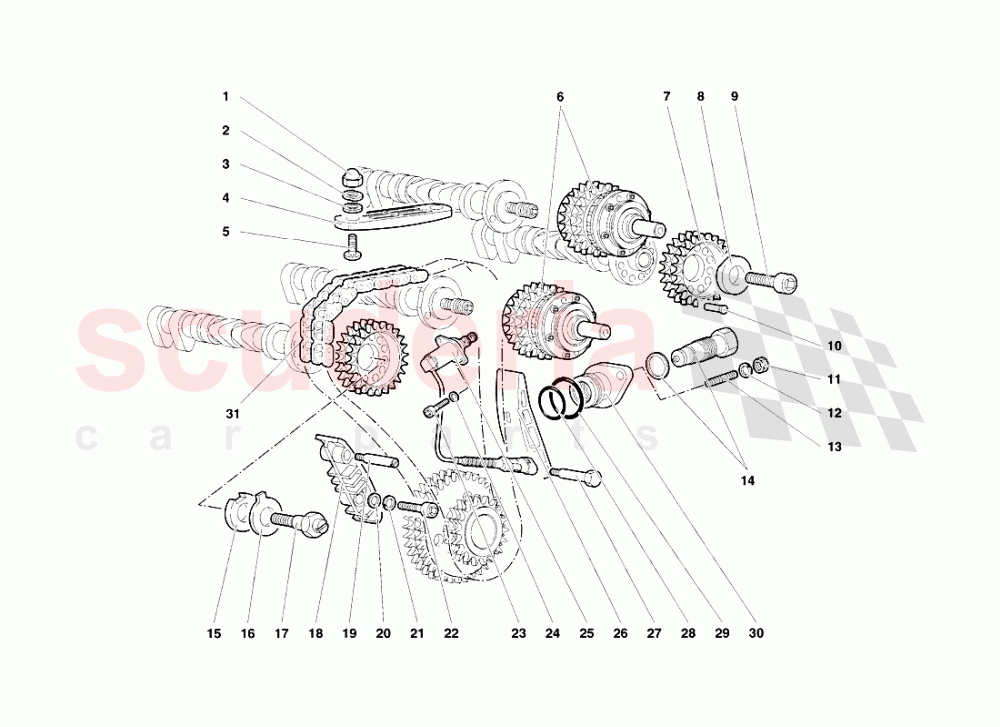

Lamborghini Diablo SV (1998) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.83	4
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.56	4
003	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	4
004	7M109513	SHOE	7M109513 SHOE PATTING	$718.15	2
005	8700682	SCREW IN STOCK	8700682 SCREW VITE IN STOCK	$0.52 MSRP: ~~7.28~~ (92.9% off)	4
006	7M109083	INTAKE PHASE TRANSFORMER	7M109083 INTAKE PHASE TRANSFORMER	$5,706.47	2
007	1232198	GEAR	1232198 GEAR INGRANAGGIO	$545.83 MSRP: ~~596.00~~ (8.4% off)	2
008	1237892	WASHER	1237892 WASHER RONDELLA	$65.75	1
009	8701031	SCREW	8701031 SCREW VITE	$9.43 MSRP: ~~10.55~~ (10.6% off)	1
010	1201964	DOWEL	1201964 DOWEL GRANO	$76.78	2
011	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.30 MSRP: ~~7.29~~ (95.9% off)	4
012	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.56	4
013	8300613	STUD BOLT	8300613 STUD BOLT PRIGIONIERO	$4.60 MSRP: ~~5.10~~ (9.8% off)	4
014	7M109255	Chain Tightener IN STOCK	7M109255 Chain Tightener TENDICATENA IN STOCK	$794.04	2
015	1219761	WASHER	1219761 WASHER RONDELLA	$85.96 MSRP: ~~97.00~~ (11.4% off)	1
016	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINASICUREZZA	$40.75 MSRP: ~~44.35~~ (8.1% off)	1
017	1233315	SCREW	1233315 SCREW VITE	$112.51 MSRP: ~~123.00~~ (8.5% off)	1
018	7M109469	SHOE	7M109469 SHOE PATTINO	$46.55	2
019	1232837	PIN	1232837 PIN PERNO	-	2	Enquire
020	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	2
021	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
022	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
023	8700605	SCREW	8700605 SCREW VITE	$0.12 MSRP: ~~7.37~~ (98.4% off)	4
024	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.56	4
025	12001214	ELECTRO-VALVE	12001214 ELECTRO-VALVE ELETTROVALVOLA	$6,815.58	2
026	7M109508	Shoe IN STOCK	7M109508 Shoe PATTINO IN STOCK	$220.94	2
027	1232851	PIN	1232851 PIN PERNO	-	2	Enquire
028	8602602	SEAL IN STOCK	8602602 SEAL IN STOCK	$0.30 MSRP: ~~7.35~~ (95.9% off)	2
029	8603702	SEAL IN STOCK	8603702 SEAL ANELLO TENUTA IN STOCK	$0.77 MSRP: ~~7.35~~ (89.5% off)	2
030	1132218	FLANGE	1132218 FLANGE FLANGIA	$395.29 MSRP: ~~431.00~~ (8.3% off)	2
031	12001138	TIMING CHAIN	12001138 TIMING CHAIN CATENA SUPERIORE DISTRIBUZ.	-	2	Enquire
