Fuel System 3 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

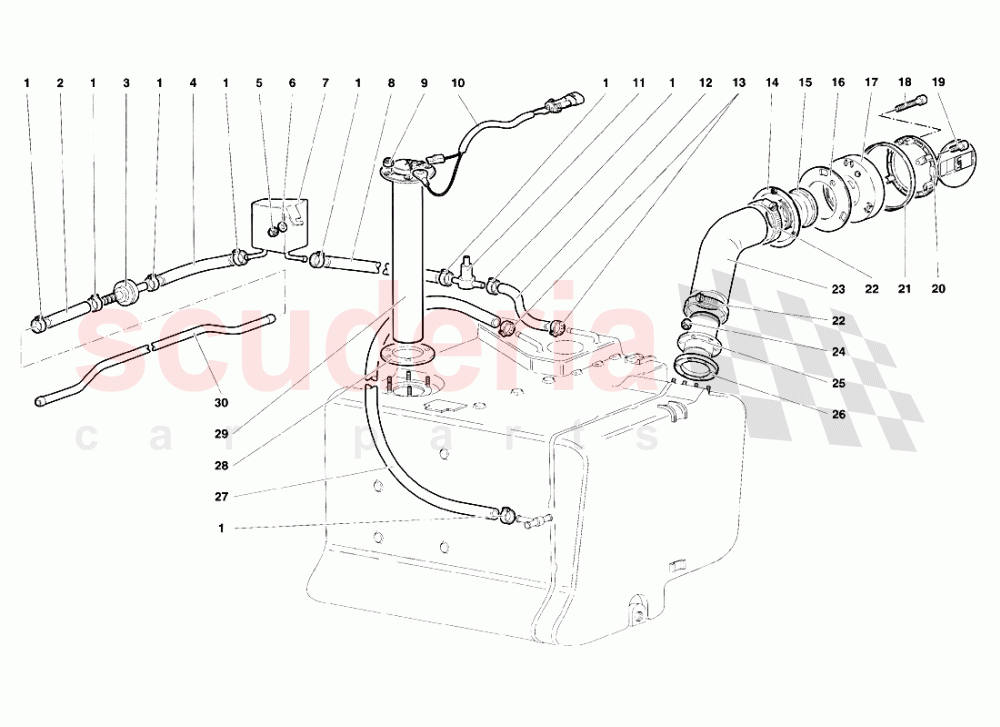

Lamborghini Diablo SV (1995-1997) - Fuel System 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8831527	STRAP	8831527 STRAP FASCETTA	$4.24	8
002	6231442	PIPE	6231442 PIPE TUBO FLESSIBILE	$6.66	1
003	6229379	SAFETY VALVE	6229379 SAFETY VALVE VALVOLA Dl SOVRAPPRESSIONE	$121.65	1
004	6233893	PIPE	6233893 PIPE TUBO FLESSIBILE	$40.65	1
005	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	1
006	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	1
007	6233841	VAPOUR TANK	6233841 VAPOUR TANK SEPARATORE VAPORI BENZINA	$366.70	1
008	6230437	PIPE	6230437 PIPE TUBO FLESSIBILE	-	1	Enquire
009	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	5
010	6135126	ELECT CABLE	6135126 ELECT CABLE CABLAGGIO GALLEGGIANTE	$8.93 MSRP: ~~9.75~~ (8.4% off)	1
011	6230531	SAFETY VALVE	6230531 SAFETY VALVE VALVOLA SICUREZZA	$273.87	1
012	6230438	PIPE	6230438 PIPE TUBO FLESSIBILE	$13.34	1
013	N0245097	CLAMP	N0245097 CLAMP FASCETTA	$17.00	2
014	9490523	RING	9490523 RING ANELLO RITEGNO	$16.62	1
015	9490529	REDUCER	9490529 REDUCER BOCCHETTONE - BENZINA VERDE	$107.25	1
016	9490528	GASKET	9490528 GASKET GUARNIZIONE	$3.41	1
017	9490526	PAN	9490526 PAN VASCHETTA PER TAPPO BENZINA	$31.94	1
018	8740505	SCREW	8740505 SCREW VITE	$0.32	3
019	8740512	DOWEL	8740512 DOWEL GRANO	$0.19	3
020	9490521	TANK CAP	9490521 TANK CAP ASSIEME TAPPO SERBATOIO	$231.20	1
021	9490527	GASKET	9490527 GASKET GUARNIZ. SU VASCA TAPPO BENZ.	$79.91	1
022	8834501	STRAP	8834501 STRAP FASCETTA	-	2	Enquire
023	6235263	PIPE	6235263 PIPE MANICOTTO.X BOCCH. BENZINA	$289.40	1
024	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	6
025	6235861	UNION	6235861 UNION BOCCHETTONE	$125.10	1
026	6205360	GASKET IN STOCK	6205360 GASKET GUARNIZIONE IN STOCK	$130.85	1
027	6230215	PIPE	6230215 PIPE TUBO FLESSIBILE A 3 VIE	$124.53	1
028	6229649	FUEL LEVEL GAUGE FLANGE SEAL IN STOCK	6229649 FUEL LEVEL GAUGE FLANGE SEAL GUARNIZIONE IN STOCK	$27.74	1
029	6229648	LEVEL GAUGE	6229648 LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$319.39 MSRP: ~~666.00~~ (52% off)	1
030	6231441	PIPE	6231441 PIPE TUBO RAME	$433.57	1
