Fuel System 2 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

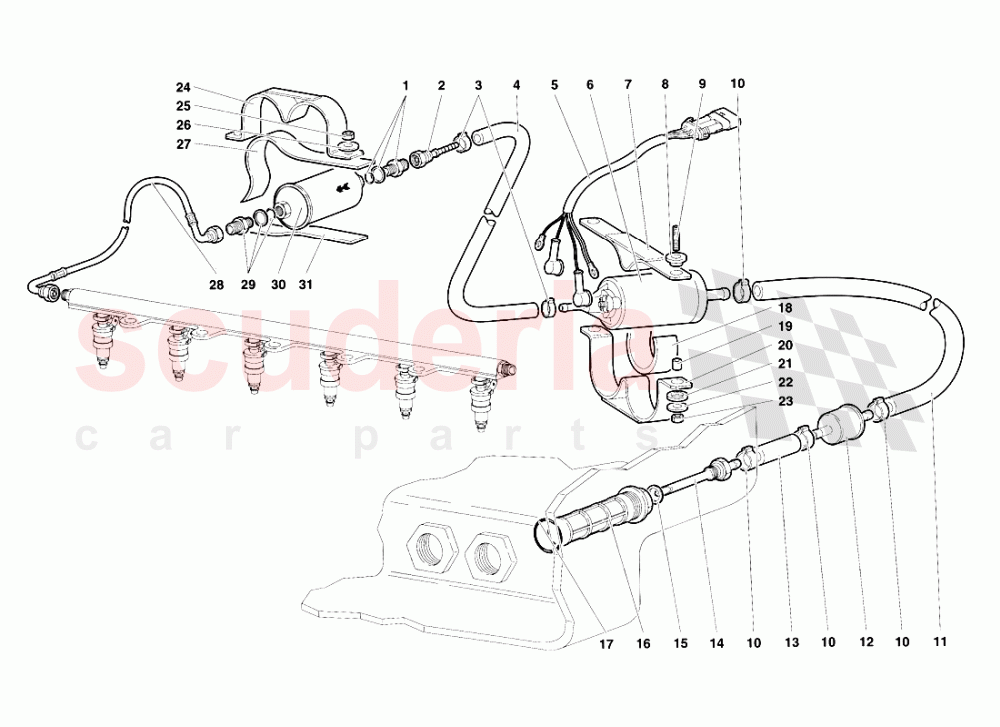

Lamborghini Diablo SV (1995-1997) - Fuel System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	5122740	CONNECTION	5122740 CONNECTION RACCORDO	$81.50	2
002	6227630	CONNECTION	6227630 CONNECTION RACCORDO	$13.95	2
003	8831528	CLAMP	8831528 CLAMP FASCETTA	$8.76	4
004	6230218	PIPE	6230218 PIPE TUBO	$46.53 MSRP: ~~50.40~~ (7.7% off)	2
005	6130194	ELECT CABLE	6130194 ELECT CABLE CABLAGGIO POMPE BENZINA	$38.84 MSRP: ~~43.65~~ (11% off)	1
006	2024398	FUEL PUMP	2024398 FUEL PUMP POMPA ALIMENTAZIONE	$711.07	2
007	6229533	PLATE	6229533 PLATE PIASTRA	$56.69 MSRP: ~~63.80~~ (11.1% off)	1
008	1701495	RUBBER RING	1701495 RUBBER RING ANELLO COMMA	$54.55	2
009	8300803	STUD BOLT	8300803 STUD BOLT PRIGIONIERO	$12.61	2
010	400251189B	CLAMP IN STOCK	400251189B CLAMP IN STOCK	$10.05	8
011	6230225	PIPE	6230225 PIPE TUBO	$20.89	2
012	6229221	OIL FILTER IN STOCK	6229221 OIL FILTER FILTRO IN STOCK	$107.42	2
013	6230226	PIPE	6230226 PIPE TUBO	$43.16 MSRP: ~~46.80~~ (7.8% off)	2
014	6230175	PIPE	6230175 PIPE TUBO PESCANTE	$343.99	2
015	8402007	WASHER IN STOCK	8402007 WASHER RONDELLA IN STOCK	$0.59 MSRP: ~~7.29~~ (91.9% off)	2
016	6229580	NET	6229580 NET PREFILTRO	$1,001.93	2
017	8603703	SEAL	8603703 SEAL ANELLO TENUTA	$19.41 MSRP: ~~21.75~~ (10.8% off)	2
018	6226900	GASKET	6226900 GASKET GUARNIZIONE	$24.92	2
019	1701592	DOWEL	1701592 DOWEL DISTANZIALE	$26.89	2
020	6229532	STRAP	6229532 STRAP FASCETTA	$101.71	1
021	WHT001189	PLASTIC WASHER IN STOCK	WHT001189 PLASTIC WASHER IN STOCK	$5.87	2
022	WHT001942	WASHER IN STOCK	WHT001942 WASHER RONDELLA IN STOCK	$3.07	2
023	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	2
024	6230214	STRAP	6230214 STRAP FASCETTA	-	1	Enquire
025	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.07	2
026	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	2
027	410201349	GASKET	410201349 GASKET GUARNIZIONE	$30.76	1
028	6231552	PIPE	6231552 PIPE TUBO PER BANCATA 1-6	$241.09	1
028	6231554	PIPE	6231554 PIPE TUBO PER BANCATA 7-12	$141.40	1
029	6230564	CONNECTION	6230564 CONNECTION RACCORDO	-	2	Enquire
030	400201511A	Fuel Filter IN STOCK	400201511A Fuel Filter IN STOCK	$242.06	2
031	410201196	GASKET	410201196 GASKET GUARNIZIONE	$4.69	1
