Passenger Compartment Trims 1 of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

Lamborghini Diablo SV (1995-1997) - Passenger Compartment Trims 1

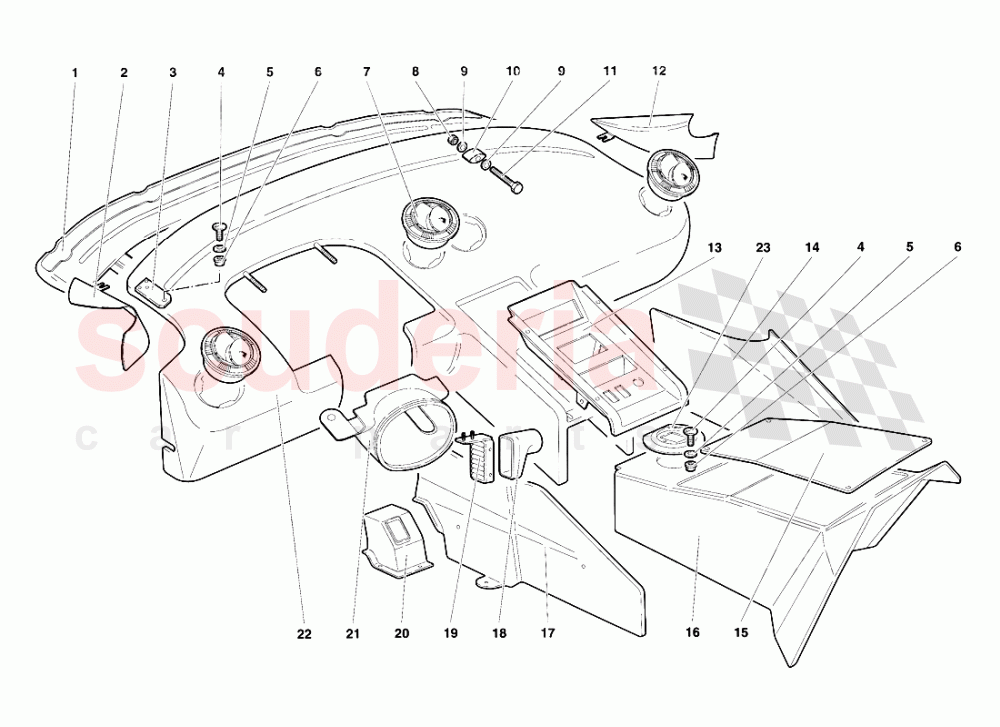

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	9414019	CONVEYOR	9414019 CONVEYOR CONVOGLIATORE	$2,335.61	1
002	9414338	LEFT PANEL	9414338 LEFT PANEL PANNELLO SX	$135.87	1
003	9414136	PLATE	9414136 PLATE PIASTRINA	$16.42	2
004	9421547	SCREW	9421547 SCREW VITE	$0.64	6
005	9421549	WASHER	9421549 WASHER RONDELLA	-	6	Enquire
006	9421548	NUT	9421548 NUT DADO	$1.29	6
007	9414507	air vent	9414507 air vent BOCCHETTONE	$29.89	4
008	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	2
009	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
010	9414129	SPACER	9414129 SPACER DISTANZIALE	$87.56	2
011	8100636	SCREW	8100636 SCREW VITE	$0.18 MSRP: ~~7.37~~ (97.6% off)	2
012	9414337	RIGHT PANEL	9414337 RIGHT PANEL PANNELLO DX	$135.87	1
013	9414145	TUNNEL PANEL	9414145 TUNNEL PANEL PLANCIA TUNNEL	$1,520.45	1
014	9414303	PANEL	9414303 PANEL FIANCHETTO DX CONSOLLE	$279.23 MSRP: ~~303.00~~ (7.8% off)	1
015	9458444	PANEL ON TUNNEL	9458444 PANEL ON TUNNEL PANNELLO COPRITUNNEL	$58.74	1
016	9458450	TUNNEL COVERING	9458450 TUNNEL COVERING RIVESTIMENTO TUNNEL	-	1	Enquire
017	9414336	PANEL	9414336 PANEL FIANCHETTO SX CONSOLLE	$187.91 MSRP: ~~204.00~~ (7.9% off)	1
018	9458356	UNION	9458356 UNION BOCCHETTONE	$150.89 MSRP: ~~168.00~~ (10.2% off)	1
019	9958402	GRILLE	9958402 GRILLE GRIGLIA	$37.80 MSRP: ~~41.00~~ (7.8% off)	1
020	9458364	CASE	9458364 CASE SCATOLA	$63.00	1
021	9414321	COVERING	9414321 COVERING RIVESTIMENTO	$638.25 MSRP: ~~691.00~~ (7.6% off)	1
022	9414149	DASHBOARD PANEL	9414149 DASHBOARD PANEL CRUSCOTTO GREZZO	-	1	Enquire
023	9458454	FRAME	9458454 FRAME CORNICE	$430.32	1
