Dashboard Instruments of Lamborghini Lamborghini Diablo SV (1995-1997)

View All

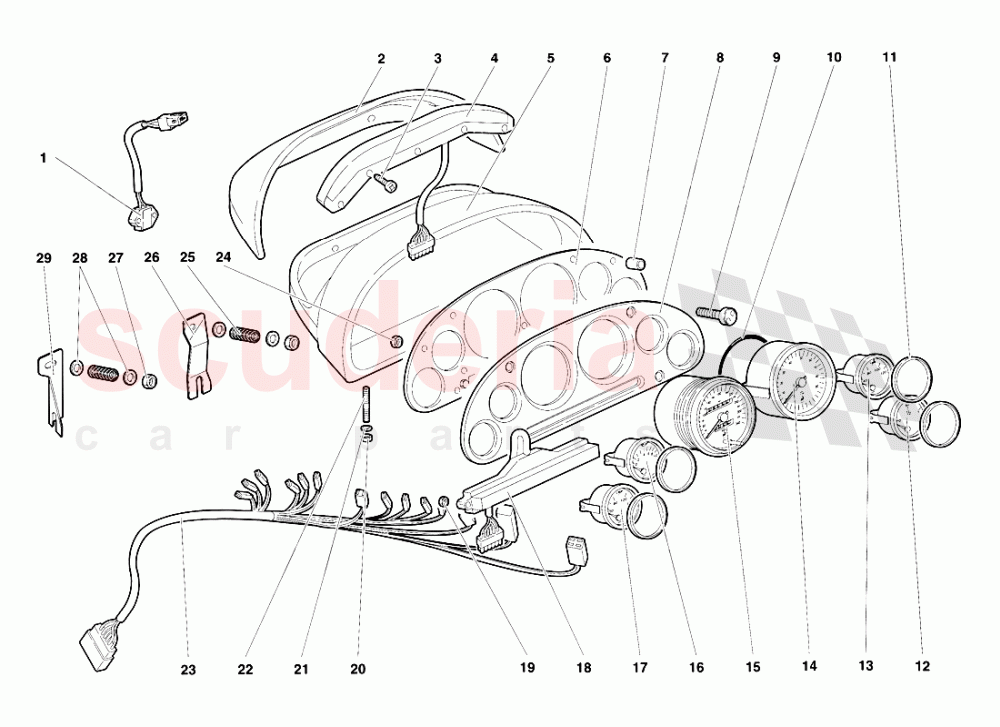

Lamborghini Diablo SV (1995-1997) - Dashboard Instruments

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	4526662	TEMPERATURE SENS.	4526662 TEMPERATURE SENS. SENSORE TEMPERATURA ESTERNA	$219.04	1
002	9414427	REAR DASHBOARD P.	9414427 REAR DASHBOARD P. CRUSCOTTO POST.	$177.97	1
003	8700449	SCREW IN STOCK	8700449 SCREW VITE IN STOCK	$2.78 MSRP: ~~7.37~~ (62.3% off)	5
004	6033214	WARNING LIGHTS	6033214 WARNING LIGHTS GRUPPOSPIE	$374.44	1
005	9414437	FRONT DASHBOARD P.	9414437 FRONT DASHBOARD P. CRUSCOTTO ANT.	$550.09	1
006	9414428	INSTRUMENT PANEL	9414428 INSTRUMENT PANEL PLANCIA PORTASTRUMEN	$226.52	1
007	9414407	SPACER IN STOCK	9414407 SPACER DISTANZIALE IN STOCK	$30.57	5
008	9414440	PLATE	9414440 PLATE PIASTRA COPRISTRUMENTI	$571.66	1
009	9414420	SCREW	9414420 SCREW VITE	$30.57	4
010	8609802	SEAL	8609802 SEAL ANELLO TENUTA	$0.58 MSRP: ~~7.28~~ (92% off)	1
011	6030886	SPACER	6030886 SPACER DISTANZIALE	$51.25	4
012	6034966	FUEL LEVEL GAUGE	6034966 FUEL LEVEL GAUGE INDICATORE LIVELLO CARBURANTE	$202.23	1
013	6034969	WATER TEMP. GAUGE	6034969 WATER TEMP. GAUGE INDICATORE TEMPERATURA ACQUA	$190.09	1
014	6034965	REVOLUTION COUNT.	6034965 REVOLUTION COUNT. CONTAGIRI	$543.18	1
015	6034964	SPEEDOMETER - KM	6034964 SPEEDOMETER - KM CONTACHILOMETRI	$641.38	1
016	6034967	OIL PRESSURE GAUGE	6034967 OIL PRESSURE GAUGE INDICATORE PRESSIONE OLIO	$157.17	1
017	6034968	OIL TEMP. GAUGE	6034968 OIL TEMP. GAUGE INDICATORE TEMPERATURA OLIO	$212.65	1
018	6033213	WARNING LIGHTS	6033213 WARNING LIGHTS GRUPPOSPIE	$591.77	1
019	WHT002959	CLAMPING NUT IN STOCK	WHT002959 CLAMPING NUT DADO IN STOCK	$0.77 MSRP: ~~7.26~~ (89.4% off)	2
020	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	2
021	WHT003093	Washer IN STOCK	WHT003093 Washer RONDELLA IN STOCK	$0.44 MSRP: ~~7.33~~ (94% off)	2
022	8300611	STUD	8300611 STUD PRIGIONIERO	$6.62 MSRP: ~~7.30~~ (9.3% off)	2
023	6133198	ELECT CABLE	6133198 ELECT CABLE CAVO ELETTRICO	$186.69	1
024	N0211963	NUT IN STOCK	N0211963 NUT DADO IN STOCK	$0.72	5
025	9414416	SPRING	9414416 SPRING MOLLA	$17.45 MSRP: ~~19.60~~ (11% off)	2
026	9414414	BRACKET	9414414 BRACKET STAFFA DX	$41.21	1
027	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.08	4
028	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.39	4
029	9414415	BRACKET	9414415 BRACKET STAFFA SX	$64.38	1
